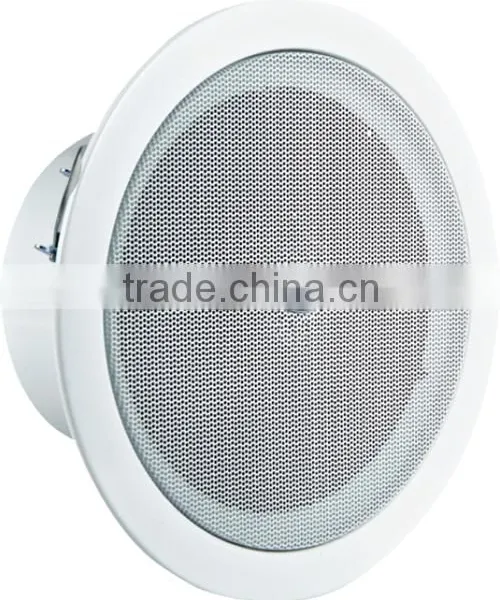

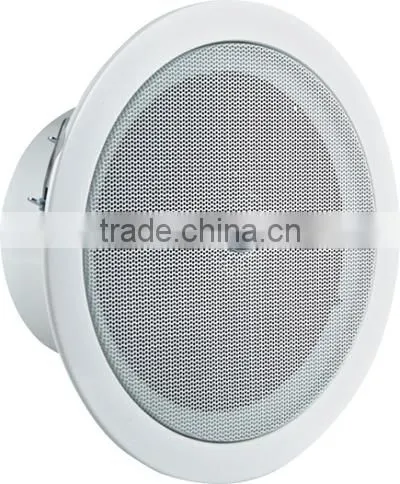

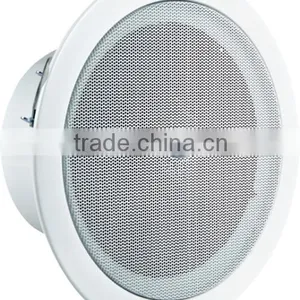

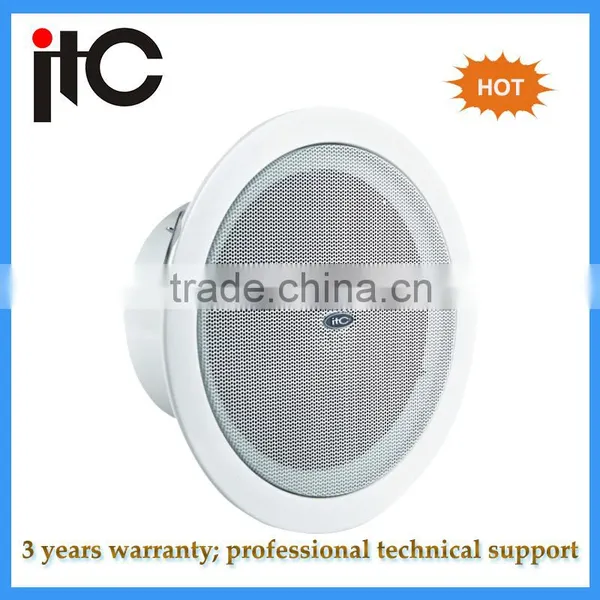

VA-504 Fire alarm system Fireproof hanging ceiling speaker
Built-in 100v/70v transformer
Wall mount type loudspeaker
5” +1.5” two ways speaker unit
Power taps 3.75w-7.5w-15w-30w @100V plus 8ohm
Metal grille, ABS enclosure and stainless mounting bracket
The T-775HW is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5”+1.5” two ways speaker driver is designed of wide frequency response 100-18kHz, the multiple power taps 3.75W, 7.5W, 15W & 30W are helpful for different applications varies from room size and ambient noise surroundings.
The metal grille, ABS enclosure and stainless mounting bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model |
T-775HW |
Power Taps @100V |
3.75W, 7.5W, 15W, 30W |
Power Taps @70V |
1.9W, 3.75W, 7.5W, 15W, 30W |
Transformer Impedance |
2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω |
Input |
70V/100V/8Ω |
SPL(1W/1M) |
88dB |
Max. SPL (Rated W/1M) |
103dB |
Frequency Response (-10dB) |
100-18KHz |
Finish |
Baffle: ABS, Black/White Grille: Steel, Black/White |
Speaker Driver |
5" x1 1.5"x 1 |
Dimensions |
285x 180 x 186mm |
Weight |
2.7kg |
Mounting |
With mounting bracket fixed by screw |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
