ITC VA-P8500S

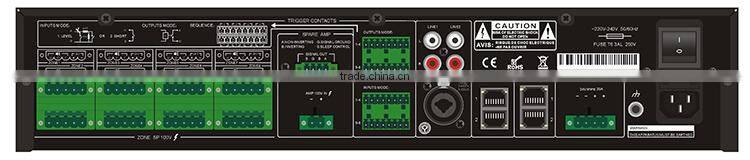

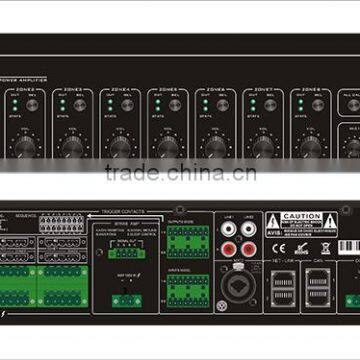

Fire alarm system digital 8 zone 500 watt amplifier
What is the special description of the 500 watt amplifier ?
VA-P8500S of 2RU case, with built-in 500W digital amplifier and 8 independent power zones, which can be installed in the broadcasting room or remote control room, share the network audio source with the system via the internet (Includes the EVAC message and network back ground music), support 4 local line inputs (The priority can be set from the main controller), is the ideal unit for setting up medium or small applications.
What is the special features of the 500 watt amplifier?
*Support the speaker loop ground connection, open circuit and short circuit test detection.
*Support the speaker loop cabling of 3 wire or 4 wire.
*8 Programmable online input trigger interfaces
*8 Programmable online output trigger interfaces
*Support power saving mode when no signal input.
*Support the line redundant wiring
Support linkage fire alarm controller and realize fire alarm linkage control
What is the special basic functions of the 500 watt amplifier ?
- Network EVAC input and BGM input, local emergency mic input, business mic input and 2 line inputs; User can set the priority of the mic in VA-6000ST.
- Can work with 1 extra standby amplifier, when the built-in amplifier come out fautly, the standby amplifier take over automatically.
- Automatically detection on the speaker loop (Ground connection, open circuit, short circuit)
- 8-CH dry and wet input interfaces, can trigger the pre-set voice messages distributed to different zones.
- 8 programmable relay signals output port, can output short circuit voltage control signal to a third party device to realize online automatic control.
- Support 24V DC input interface (To connect the 24V DC supplied by VA-6000BC)
What is the special specification of the 500 watt amplifier?
AC Power | |
Voltage |
~ 230V,50/60Hz |
3A(Exclude the 4 wire override output) |
|
Fuse Data |
250V/5A, Slow type |
DC Power | |
Voltage |
24V DC, ±20% |
25A(Exclude the 4 wire override output) |
|
Power consumation |
600W |
Performance Index | |
Line input |
|
Distortion |
<1%(RMS),1kHz |
Frequency |
80Hz~20kHz |
Sensitivity |
350mV |
Impedance |
10kΩ |
S/N Ratio |
>70dB |
Emergency Mic | |
Sensitivity |
5mV |
Impedance |
600Ω |
Contactor Output | |
8-CH programmable relay output |
Short Circuit, No voltage |
8-CH programmable trigger input | |
Level mode |
3.3V Max 3.3V |
Short circuit mode |
No voltage, Short circuit. |
Cooling mode |
Air-Cooled |
Protection mode |
Delay/Overheat/Short Circuit/Over Load |
Machine Index | |
Dimension |
484×88×447 mm (19’ width,2U) |
N.W |
About 11.kg |
Installation |
Desktop or 19 inch cabinet |
Color |
BLACK |
Enviroment Requirements | |
Operation Temp. |
+5°C ~ +40°C |
Storage Temp. |
-20°C ~ +70°C |
Relative Temp. |
<95%( No condensation) |
Company information
FAQ
Q1: What is the Warranty for the 500 watt amplifier ?
For the 500 watt amplifier, we have 3 years warranty.
Q2: How long to resolve the technical issues?
All of quality complaint shall be attached with serial number, failure test report and photos. And all of the quality compliant shall be feedback with a solution within 48 hours.
If any technical issues please contact with our technician
Technical documents could be downloaded from website
Q3: Is there cheap shipping cost to import to our country?
For small order, express will be best. And for bulk order sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
