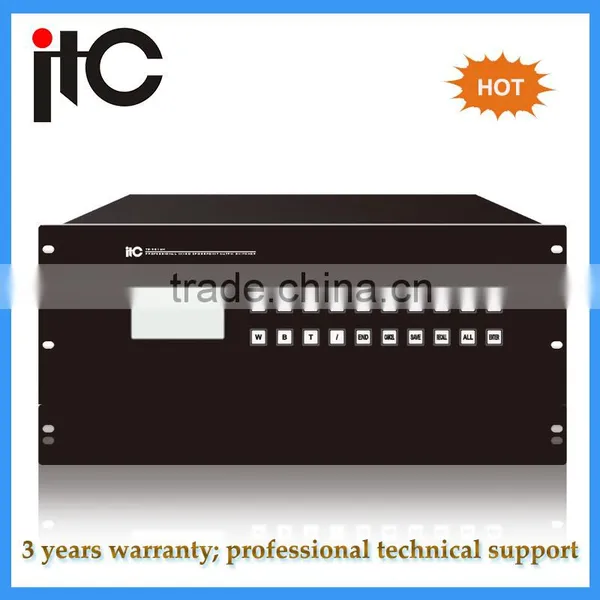

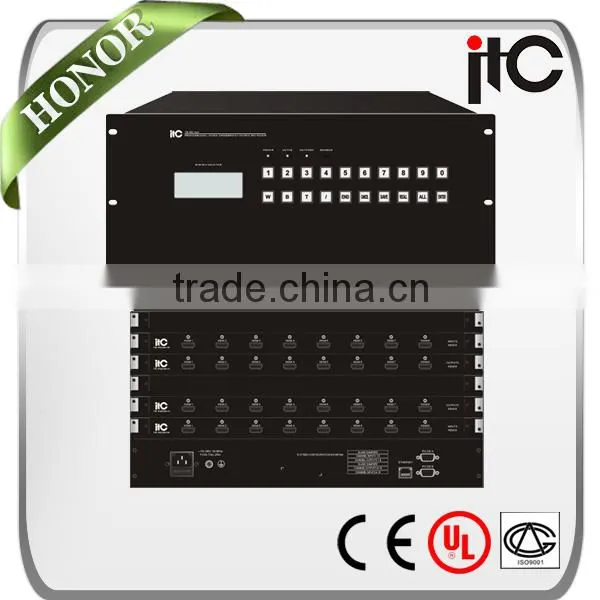

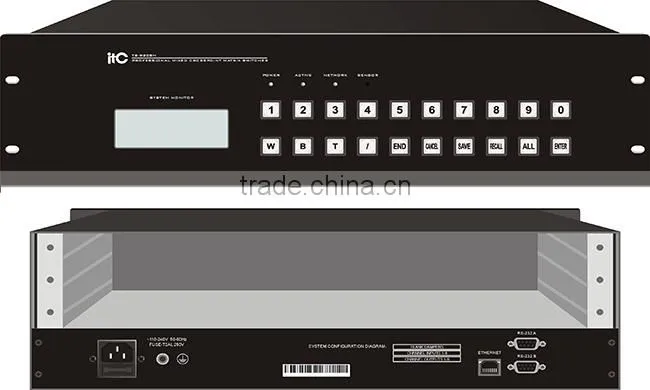

ITC TS-9216H
16 Channel Audio Video HD Matrix Switcher
Audio/Video Matrix Switcher is a professional matrix switcher of high-performance embedded intelligent control. It provides a peak data transfer rate of 3.25Gbps and perfectly supports synchronous switching of audio/video signals, adapts to 7 x 24 uninterrupted work and the average time between failures is more than 30,000 hours, which provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc.
* Input and output: Support 16-Channel Audio/Video signal input and 16-Channel Audio/Video signal output.
* Board card plug-in structure: support board card heat insertion.
* Support scalable HDMI output seamless switching function.
* Support HDCP management, can encrypt and decrypt HDCP, ensure that the signal source displaces properly.
* Support EDID management, can store 8 groups of EDID data, allow reading the output device EDID or stored and apply it to any input cards, can send EDID codes to EDID storage area via the
serial port, can read the current output EDID codes via the serial port.
* Have power-off memory function and scene memory function: have power-off site protection; can save and call 10 switching states.
* Support forward high-speed channel and embedded control signal separation switch modes.
* Support Full HD: HDPC: HDPC:1920X1200P@60_24bit, HDTV:1920X1080P@60_36bit.
* Luxury crystal buttons with luminous indicator function, the current switch information can be obtained directly from the LCD screen, easy to operate.
* Support 3D, HDMI 1.4, HDCP1.4, and DVI 1.0 protocol. Support high color depth, and up to 3.25Gbps rate.
* Have 2-ChannelRS-232 communication interface.
* Have 1-way network port, can control remotely via Ethernet, support simultaneous connections up to 8 users.
* Built-in universal power supply.
Company Profile
ITC Audio was established in 1993, and we have been constantly devoted to the R & D and manufacture of public address system, conference system, IP system and EVAC voice system. We are one of the earliest manufacturers among public adress industry in China.
