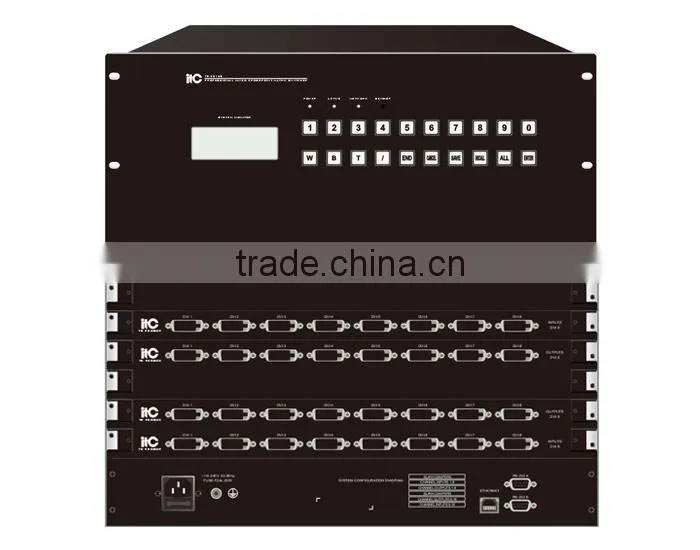

TS-9216B DVI HD Audio Video 16 Channel Matrix Switcher
DVI HD Audio/Video Matrix Switcher is a professional matrix switcher of high-performance embedded intelligent control.
It provides a peak data transfer rate of 3.25Gbps and perfectly supports synchronous switching of HDMI audio/video signals, adapts to 7 x 24 uninterrupted work and the average time between failures is more than 30,000 hours, which provides a stable and reliable high-definition audio and video signal transmission switching hub for the system.
It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc.
* Input and output: Support 16-Channel DVI Audio/Video signal input and 16-Channel DVI Audio/Video signal output.
* Board card plug-in structure: support board card heat insertion.
* Support scalable DVI output seamless switching function.
* Support HDCP management, can encrypt and decrypt HDCP, ensure that the signal source displaces properly.
* Support EDID management, can store 8 groups of EDID data, allow reading the output device EDID or stored and apply it to any input cards, can send EDID codes to EDID storage area via the serial port, can read the current output EDID codes via the serial port.
* Have power-off memory function and scene memory function: have power-off site protection; can save and call 10 switching states.
* Support forward high-speed channel and embedded control signal separation switch modes.
* Support Full HD: HDPC: HDPC:1920X1200P@60_24bit, HDTV:1920X1080P@60_36bit.
* Luxury crystal buttons with luminous indicator function, the current switch information can be obtained directly from the LCD screen, easy to operate.
* Support 3D, HDMI 1.4, HDCP1.4, and DVI 1.0 protocol. Support high color depth, and up to 3.25Gbps rate.
* Have 2-Channel RS-232 communication interface.
* Have 1-way network port, can control remotely via Ethernet.
* Built-in universal power supply.
Model |
TS-9216B |
Video | |
Gain |
0 dB |
Pixel Bandwidth |
225MHz, full digit |
Interface Bandwidth |
3.25Gbps, full digit |
Max. Supported Definition |
HDPC: 1920x1200P@ 60_24bit; |
HDTV: 1920x1080P@60_36bit | |
Bit Clock Jitter |
<0.15 Tbit |
Rise Time for Bit |
<0.3Tbit (20%--80%) |
Falling Time for Bit |
<0.3Tbit (20%--80%) |
Max. Delay |
5nS(±1nS) |
Switching Speed |
200 ns (Max. duration) |
Signal Type |
DVI-D full digit T.M.D.S signal |
Video Input | |
Interface |
DVI-D female interface |
Signal Strength |
T.M.D.S +/- 0.4Vpp |
Max/Min Level |
T.M.D.S 2.9V/3.3V |
Impedance |
50Ω |
The Maximum Error of The DC Bias |
15mV |
Suggested Input Distance in Max. |
<20m, When 1920*1200@60. |
Video Output | |
Interface |
DVI-D female interface |
Max/Min Level |
T.M.D.S 2.9V/3.3V |
Impedance |
50Ω |
Suggested Max Output Distance |
<20m, When 1920*1200@60. |
Serial Port Control | |
Quantity |
2 |
Serial Control Interface |
RS-232, 9-pin female D type port |
Baud Rate and Protocol |
Baud Rate: 9600, Data Bit, 8 bit, |
|
Stop bit: 1, no parity bit |
Serial Port Control Structure |
2 = TX, 3 = RX, 5 = GND |
Ethernet Control | |
Ethernet Control Interface |
RJ-45 female interface |
Ethernet Control Protocol |
TCP/IP |
Ethernet Control Rate |
adaptive 10M/100M, full duplex or half duplex |
Specification |
|
Power Supply |
~110V/60Hz or ~230V/50Hz, General Adaptive Power |
Max. Power Consumption |
208W |
Weight |
about 10kg |
Storage & Operating Temp. |
-20℃~+70℃ |
Storage & Operating Humidity |
10%~90% |
Rack Dimension |
5U |
MTBF |
30,000 hours |
Dimension |
484 x 354 x 220mm |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
