Specifications
aluminum1thickness:0.1-10mm
2width:800mm-1900mm
3:alloy:1series 3series 5series 6series etc
4Temper:O H12 H14 H18 H24 etc
Aluminum sheet
1. SPECIFICATION OF PRODUCTS
Wrought aluminium alloy composition limits (% weight)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti | Bi | Ga | Pb | Zr | Limits†† | Al | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Each | Total | |||||||||||||||
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.5 min | ||||||||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 99.6 min | |
| 1100 | 0.95 Si+Fe | 0.05–0.20 | 0.05 | 0.10 | 0.05 | 0.15 | 99.0 min | |||||||||
| 3003 | 0.6 | 0.7 | 0.05–0.20 | 1.0–1.5 | 0.10 | 0.05 | 0.15 | remainder | ||||||||
| 3004 | 0.30 | 0.7 | 0.25 | 1.0–1.5 | 0.8–1.3 | 0.25 | 0.05 | 0.15 | remainder | |||||||
| 3102 | 0.40 | 0.7 | 0.10 | 0.05–0.40 | 0.30 | 0.10 | 0.05 | 0.15 | remainder | |||||||
|

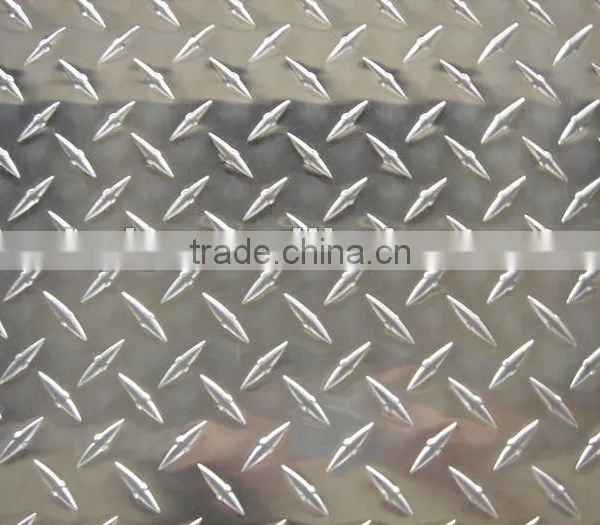

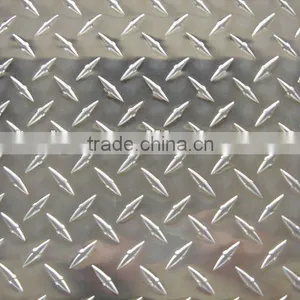

Pattern : Five bar tread plate
Specification : Thickness : 0.1mm-10mm (such as 0.2mm,0.25mm,1.2mm,2.5mm,4.0mm,6.0mm,8.0mm...) 10mm-350mm (such as 12mm,15mm,18mm,20mm,25mm,50mm,100mm...) Width : popular width 800mm-1900mm (special width can be produced as your requirement) Length : popular length 1500mm-3000mm ( special length can be produced as your requirement ) Alloy Grade : 1050,1060,1100,3003,3004,3005,3105,5005,5052,5083,5754,6061,6063,etc. Temper : O,H12,H14,H16,H18,H22,H24,H26,H32,H34,T0,T5,T6, etc | ||||||||||||||||

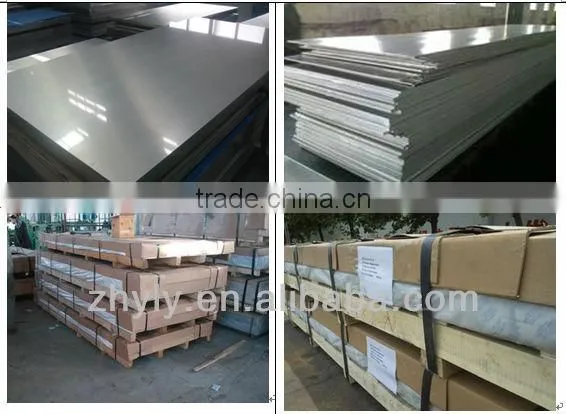

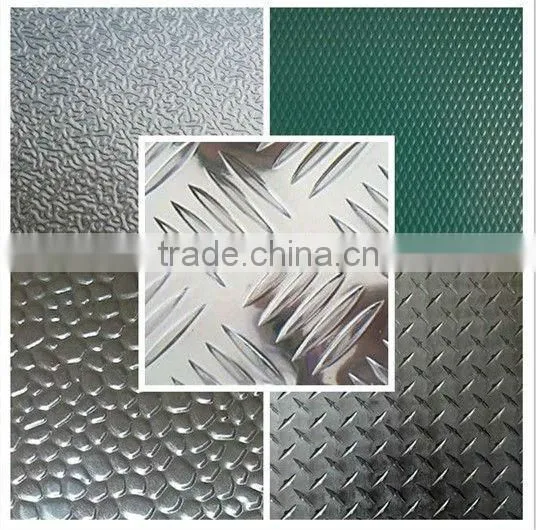

2. Picture of aluminum sheet
3. Picture of packing

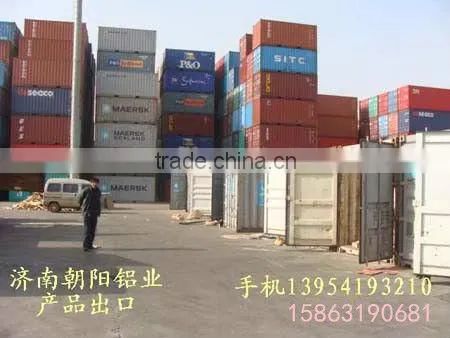

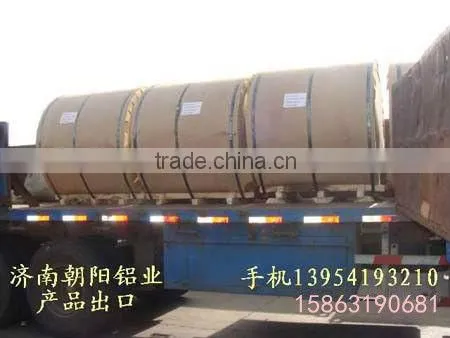

4. Picture of transport and loading
About Us
Jinan Zhaoyang Aluminium Industry Co.,Ltd.,is located in the land of rose,Pingyin County in Jinan. Our products have passed the ISO2000 Quality System Certificate.
Our products are widely used in construction,packaging,air conditioner,solar power,cosmetic,etc. It can also applied to power plant, chemicals,petrochemical,etc.Our products are exported to America,Africa and Southeast Asia,etc,and also sold to over 180 medium and large enterprises in Zhejiang,Shanghai,Hangzhou,Wuhan,Shandong and northeast China.
Dimensions can be produced according to your specifications,if you need any further details,please be free to tell us,we assure you of our best servieces.
