Specifications
1alloy:1000,3000,5000,60002.tempter:H12,H14,H16,H18,H22,H24,H26,H32,O
3.thickness:0.1mm~8.0mm
4.width:800-1600mm
1.NON-SLIP ALUMINUM SHEET DESCRIPTION
non-slip aluminum sheet commonly used in China, including five bars Series (willow pattern) and pointer series, especially the five bars pattern is widely used in the work platform, train, boat bilges, cold storage, workshop etc.
Currently, the choice of non-slip aluminum typically: cold storage, car, boat bilges usually use non-slip aluminum 1060-H24 3.0mm thickness, the series does not need floating aluminum, non load-bearing. So you don't need a higher thickness or higher hardness non-slip aluminum.
For special areas (such as the need vacant, or in a high degree of corrosion, rust or corrode easily place) we suggested you can use rust-slip aluminum 5052 or 6061, the series slip aluminum rust, excellent corrosion resistance.
As for the vacant places require staff stampede, suggested the use of alloy series, while the thickness of not less than 6.0mm, the thickness of the kind of family and non-slip aluminum can to ensure maximum safety of staff, while ensuring non-slip aluminum life.
2.Applicaion and Feature
Division |
Alloy |
Application |
Feature |
1000 SERIES |
1050 1060 1070 1200 |
Utensil, decoration, Reflecting plate, printing plate, heatproof plate |
-Easy to process and weld, resistant to rust, high conductibility of electricity and heat, low strength -Kinds of Cookware |
3000 SERIES |
3003 3005 3105 |
Utensil(F/P, inside of rice cooker), aluminum can, material for interior and exterior of building, Celluar Phone |
-A3003 : Anodizing Cook wares, general wares, frying pan, coating, Pressure cooker, electric rice cooker, Utensil, Mobile Phone cover & Battery Case Cheaper item with standard quality |
|
5000 SERIES |
5083 5052 5754 5A05 |
Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic tools Automobile Components: |
Easy to process and weld and superior hardness &heatproof
|
|
6000 SERIES |
6061 6063 |
IT equipment & facility, Mould material, motor material, automatic line, machine & plant etc. |
-Easy to process , resistant to rust, superior surface treatment |
8000 SERIES |
8011 |
Kitchen utensils, Bottle cap |
-8000 series is durable to process with special alloy. |

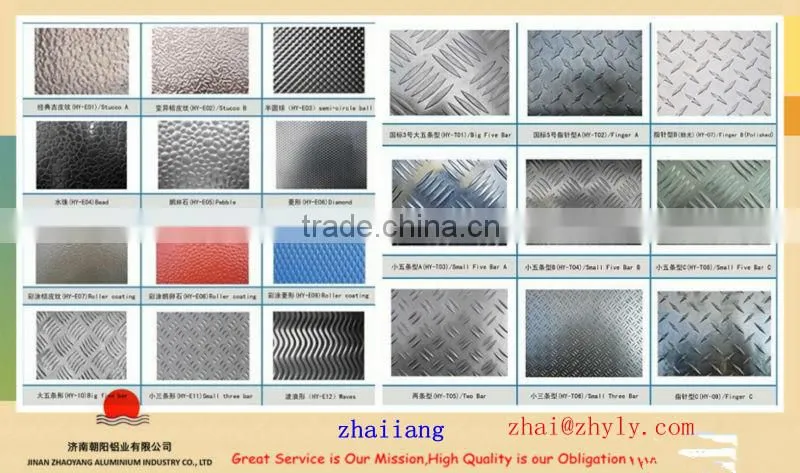

3.Different partern
1.StuccoA and B: thickness0.1-3.0mm,width:800-1220mm
2.semi-circle ball: thickness 0.1-1.0mm,width:800-1220mm
3.Big and small roller coating : thickness0.1-2.0mm,width:800-1220mm
4.Five bars and Finger pattern : thickness:0.9-6.0mm,width:800-1600mm
Specific requirement of alloy temper or specification can be discussed at your request,If you are intersted in the product ,please let me know.
4.View the production and our package
Jinan Zhaoyang Aluminium Industry Co.,Ltd is located in the land of rose, Pingyin County in Jinan. Our products have passed the ISO2000 Quality System Certificate.
Our main products are aluminum sheet, aluminum coil, corrugated aluminum roofing sheet , embossed aluminum sheet/coil ,color coated aluminum coil/sheet ,aluminum foil, aluminum strip, aluminum wire ,aluminum tube and so on. Our products are exported to America, Africa and Southeast Asia, etc and also sold to over 180 medium and large enterprises in Zhejiang, Shanghai, Hangzhou, Wuhan, Shandong and northeast China.
