Product Details
| Grade | 1000 Series | Temper | O-H112 | |
| Type | Plate | Application | buildig and house | |
| Thickness | 0.3-1.5mm | Width | 700-1300mm | |
| Surface Treatment | Coated | Alloy Or Not | Is Alloy | |
| Place of Origin | Shandong, China | Brand Name | zhaoyang | |
| Model Number | YX25-205-820;YX23-210-840;YX14-65-850;YX12-100-880;YX15-225-900 |
Product Description
Specifications

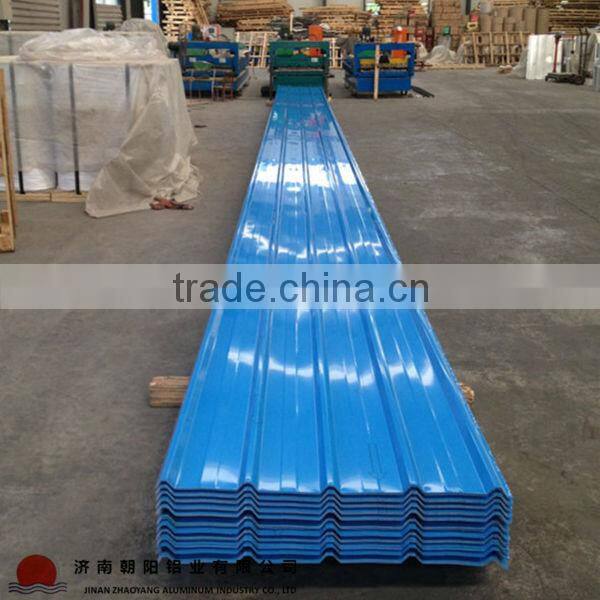

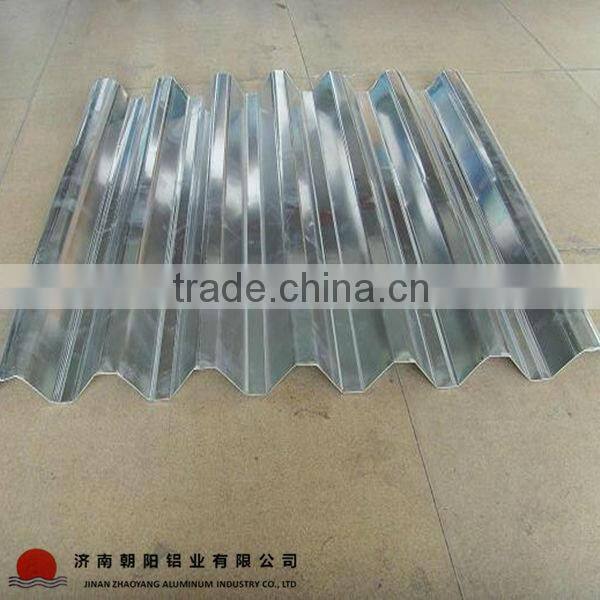

type of roofing sheets in aluminum alloy 30031.thick:0.3-1.5mm
2.width:700-900mm
3.alloy: 3003 1060
4.certificate:ISO9001
Type of Roofng Sheets
type of roofing sheets in aluminum alloy 3003
1.Alloy of the aluminum roofing sheet:1060, 3003, 5052 ,etc.
2. Temper:O, H24
3. Thickness: 0.2mm ~ 1.5mm
4. Type: 750mm 820mm 840mm 850mm 880mm 900mm
5. Min order:2 tons for each size
6. Payment : TT or Irrevocable LC at sight
Alloy | Thickness | Type of roofing sheet | Effect Width after press | Coated | COLOR |
1060 3003 3004 3A21 | 0.2mm-1.5mm | YX35-125-750 | 750mm | PE&PVDF | As your requirement , usually use red,blue, green etc. |
YX25-205-820 | 820mm | ||||
YX24-210-840 | 840mm | ||||
YX14-65-850 | 850mm | ||||
YX12-100-880 | 880mm | ||||
YX15-225-900 | 900mm |
The Chemical Composition Limits of aluminum roofing sheet ( wt% )
Alloy | CHEMICAL COMPOSITION(%) | ||||||||||||
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Other Elements | Al | ||
Each | Amount | ||||||||||||
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | — | — | 0.05 | 0.03 | — | 0.03 | — | 99.6 |
3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | — | — | — | 0.1 | — | 0.05 | 0.05 | 0.15 | rest |
5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | — | 0.1 | — | — | 0.05 | 0.15 | rest |
Application of aluminum roofing sheet
1)Aluminum roofing sheet is suitable for all weather use. The life time of our aluminum roofing sheets is very long. It will not crack, bubble and peel when being used in ultraviolet radiation, moisture, salt, heat and cold insulation for long time. aluminum roofing sheets can handle any bad weather.
2)Aluminum roofing sheetcould be used as roof and wall for all kinds of factory building, workshops, cold storage containers and residential houses. With high quality, our products could be used in any kind of buildings.

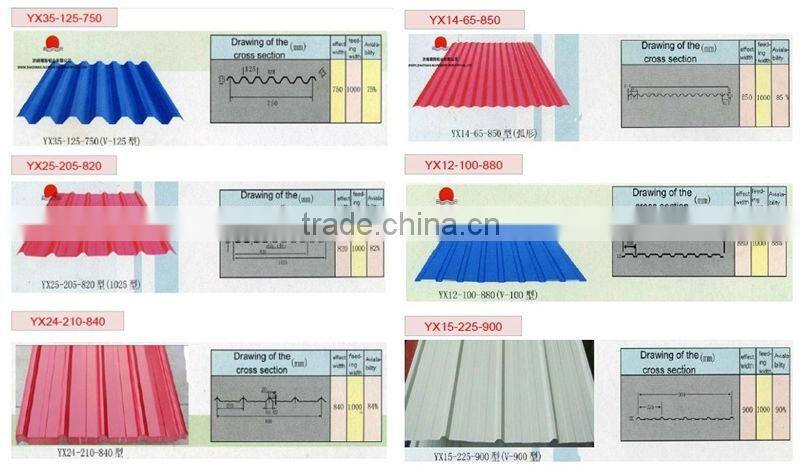

The main type of roofing sheet in aluminum alloy
Specific requirement of alloy temper or specification can be discussed at your request ,If you are intersted in the product ,please let me know.

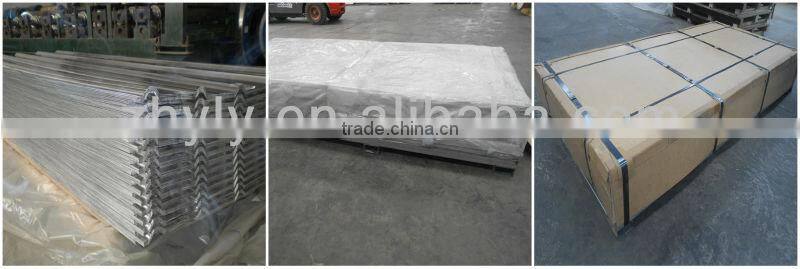

Water proof and paper box package and then use the wooden pallets
The certificate of our products
Jinan Zhaoyang Aluminium Industry Co.,Ltd is located in the land of rose, Pingyin County in Jinan. Our products have passed the ISO2000 Quality System Certificate.
Our main products are aluminum sheet, aluminum coil, corrugated aluminum roofing sheet , embossed aluminum sheet/coil ,color coated aluminum coil/sheet ,aluminum foil, aluminum strip, aluminum wire ,aluminum tube and so on. Our products are exported to America, Africa and Southeast Asia, etc and also sold to over 180 medium and large enterprises in Zhejiang, Shanghai, Hangzhou, Wuhan, Shandong and northeast China.
