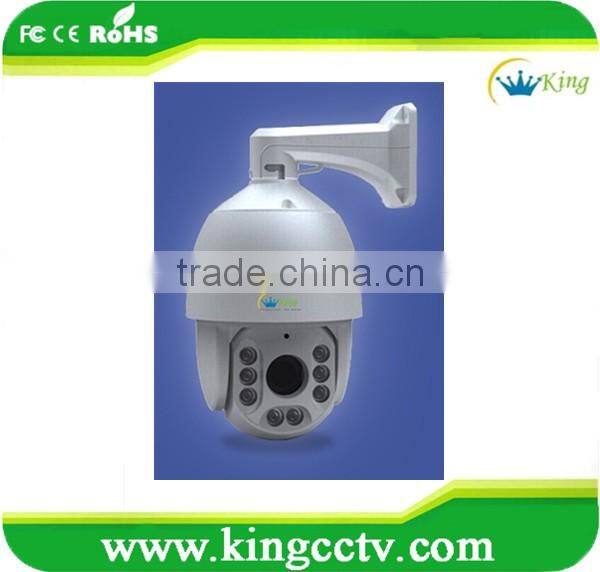

OSD Outdoor Waterproof IR PTZ Camera module
W What is the Feature of our Products?
Feature
- Indoor and Outdoor waterproof IR Speed Dome Camera
- Two group IR LED , the big group is 12pcs at Φ20,the small is 42pcs at Φ8,and the IR distance is 120M
- The IR led can change according distance.if the distance is less than 30m ,only the small LED on , if the distance is more than 30 m , the big led will turn on.the temperature will be less than 48 °C after 8 hours continuous working .
- 220 preset points.
- Auto identify SONY,LG,CNB and KingCCTV all-in-one Camera
- Support Color 18X, 22x,27x,36x optical Zoom Camera module.
- 3 groups cruise tour,each tour can set 16 preset point.
- Strong OSD Menu
W What is the Specifications of our products?
OSD Outdoor Waterproof IR PTZ Camera module
| Model No. | HK-GIS8277 | HK-GIS7270 | HK-GIS8182 | HK-GIS8272 | HK-GIS8362 |
| Image Sensor | 1/3" SONY ExView CCD | 1/4" SONY ExView CCD | |||
| All-in-one camera | Hyking | Sony 480CP | LG or CNB | Sony 1010 | |
| Total Pixels | 380,000 | 440,000 | 440,000 | 470,000 | 470,000 |
| Resolution | 700 TVLs | 470 TVLs | 480 TVLs | 540 TVLs | 540 TVLs |
| Lens | f= 3.9~89.7mm | f=4.1~73.8mm | f=4.1~73.8mm | f=3.25~88mm | f=3.5~122.4mm |
| Zoom | 27X optical zoom, 10X digital zoom | 27X optical zoom | 18X optical zoom, 12X digital zoom | 27X optical zoom, 10X digital zoom | 36X optical zoom, 10X digital zoom |
| Horizontal Angle of View | 48.0°(wide), 2.8° (tele) | 54.0°(wide), 2.5° (tele) | 54.0°(wide), 2.5° (tele) | 48.0°(wide), 2.8° (tele) | 57.8°(wide), 1.7° (tele) |
| Minimum Illumination | Color 0.01Lux B/W 0.005Lux | Color 0.5Lux B/W 0.08Lux | Color 0.7Lux B/W 0.002Lux | Color 0.003Lux B/W 0.0001Lux | Color 0.7Lux B/W 0.01Lux |
| S/N Ratio | >50dB | ||||
| Electronic Shutter | 1/50~1/10000s | 1/1~1/10000s | 1/1~1/10000s | 1/50~1/10000s | 1s~1/10000s |
| Privacy zone | Yes | NO | Yes | ||
| IR Induce | Yes | ||||
| Color to Black/White | Yes | ||||
| IR distance | 100M | 80M | 120M | ||
| Horizontal Rotation Speed | 0.5° ~ 180°/s | ||||
| Vertical Rotation Speed | 0.5° ~ 120°/s | ||||
| Horizontal Rotation Range | 360° | ||||
| Auto Flip | Horizontal 180°, Vertical 90° | ||||
| level running | 360° continuous revolve, 180° auto flip | ||||
| Rotate speed | 0.5°/S-180°/S level shift, 0.5°/S-120°/S upright shift | ||||
| Auto control LED | LED Adjustable according to IR distance | ||||
| Presets | 220 | ||||
| Running to preset speed | 1~64 grade available | ||||
| Cruise Tours | 3 groups | ||||
| Cruise Points Qty per cruise | 16pcs | ||||
| Guard point | 1~255sec available | ||||
| Comm. Port | RS485 | ||||
| Communication Protocol | PELCO-D, PELCO-P etc | ||||
| Baud Rate | 1200bps;2400bps;4800bps;9600bps;19200bps | ||||
| Address | 0~255 | ||||
| heater & fan | Auto temperature control | ||||
| Operation Temperature | -30 °C ~ 60 °C | ||||
| Storage Temperature | -40 °C ~ 60 °C | ||||
| Power Supply | DC 13V 20W | ||||
| Consumption | less than 20W | ||||
| Installation option | Wall mounting bracket,Surface, In-ceiling, Pole | ||||
*Design and specifications are subject to change without notice.

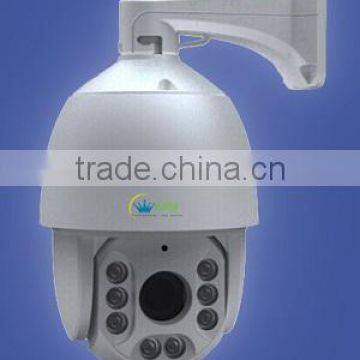

P Product Photos
W What is the Effect image of our Products?
KingCCTV VS TOP 10
Video Image comparision between KingCCTV with Top 10 XXhua
W What is the Applications of our products?
P Packaging &Shipping,Trade Terms
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
* Presale: product consultation and solution design can be provided.
* After sale: We offer a 2years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..
4. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.
with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
outdoor poe 20x optical zoom pan tilt high speed ptz ip security camera
F FEEDBACK
C Customers from All over the World
F FAQ
Q1. Can I get samples?
A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment
Q2. Are you factory?
A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.
Q3. How about warranty period? If any problem, can I get enough support?
A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.
Q4. Why the shipping cost is so much? How about delivery time?
A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.
Q5. Can I become your sole distributor in my place?
A5. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.
Q6. Can you give us enough brochures and ideas as promotion to our customers?
A6. Yes, we’d love to help you promote your business. Welcome to share your idea of your market status and we will give you valuable advice and detailed information you need.
Q7. Can you make OEM products for us?
Q7. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
