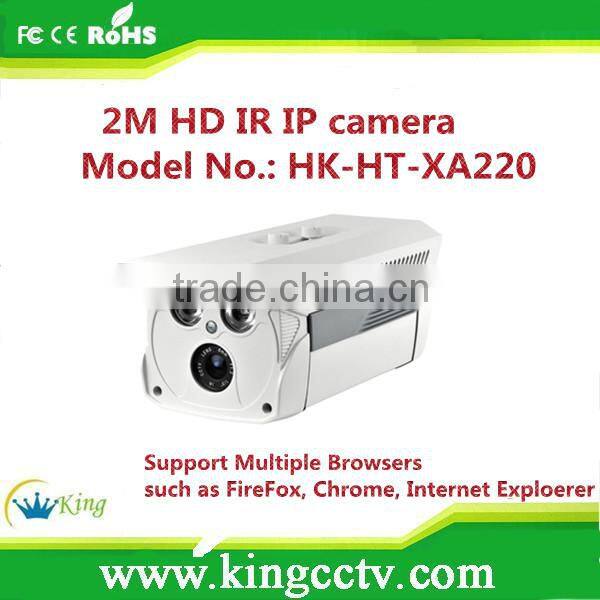

Mobile Phone Support 2M HD IR IP Camera HK-HT-XA220

Name: Mobile Phone Support 2M HD IR IP Camera HK-HT-XA220
Brand: KingCCTV
SKU: 127996959
Availability: InStock

Shenzhen KingCCTV Technology Co., Ltd.

US$ 110 - 150 MOQ: 2 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KingCCTV

Model Number:

HK-HT-XA220

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KingCCTV

Model Number HK-HT-XA220

Type Digital Camera

Style Bullet Camera

Sensor CMOS

Technology NetWork

Special Features Waterproof / Weatherproof

Specifications

H.264 Main Profile
ONVIF Ver. 2.0 conformance
Support dual stream, AVI format

Mobile Phone Support 2M HD IR IP camera HK-HT-XA220

Mobile Phone Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Support Multiple Browsers such as FireFox, Chrome, Internet Exploerer
Built-in Web server enables the use of a standard Web browser for viewing and management
Support dynamic IP address, LAN, Internet (ADSL and Cable Modem)
Support protocols: RTSP/ FTP/ PPPOE/ DHCP/ DDNS/ NTP/ UPnP
ONVIF Ver. 2.0 conformance
Support whole TCP/IP protocol
Support CVBS video output and overlying DDNS, user name, password and other info
Up to 10 viewers can directly access the camera simultaneously

high-density and programmable communication media processor dual core 32-bit DSP(TI DAVINCI DM368F)
H.264 Main Profile
Up to 25 frames per second in all resolutions ranging up to 1080P(1920*1080)
Support dual stream, AVI format
Low power consuming of the DSP, suit to long time running
The encoding parameter can be adjusted dynamically (bit rate/frame rate/image quality)
Support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjustable
Audio Compression: support two-way audio Bidrectional Talk, support audio and video synchronized output

Model #	HK-HT-XA220
System	Embedded RTOS design, dual core 32-bit DSP(TI DAVINCI DM368F)
Pixel	2.0 Mega Pixel
Image Sensor	1/2.5″ CMOS
Min. Illumination	IR ON 0Lux
Lens	HD 12mm, 4/6/8/12/16mm (optional)
Lens interface	CS
Day&Night	IR-cut
Compression
Video Compression	H.264 High Profile, JPEG Screen shot
Main/Extra Stream	1080P(19201080)/D1(704576)
Video output bit rate	32Kbps~16Mbps
Audio Compression	G.711a
Max. Resolution	1920*1080
Frame Rate	25fps(1920*1080)
Image Setting	Saturation, Brightness, Contrast adjustable through Client software or web server
Network features
Storage	Network storage, TF card storage(optional)
Intelligent Alarm	Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error
Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP ,RTSP
Basic	Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection
NVR/HVR	YES
Mobile Monitor	Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
ONVIF	2.0
Multiple Browsers	FireFox, Chrome, Internet Exploerer
Interface
Communication Interface	1pc RJ45 10M/100M self-adaptive Ethernet interface
Video Output	1Vp-p Composite Output(75Ω/BNC)
General parameters
Operating Condition	-10~60 °C, Humidity 90% or less(non-condensing)
Power Supply	DC12V±10%
Power Consumption	6W MAX
Protection Range	IP66
LED	2pcs Array-leds, IR distance 40~50M
