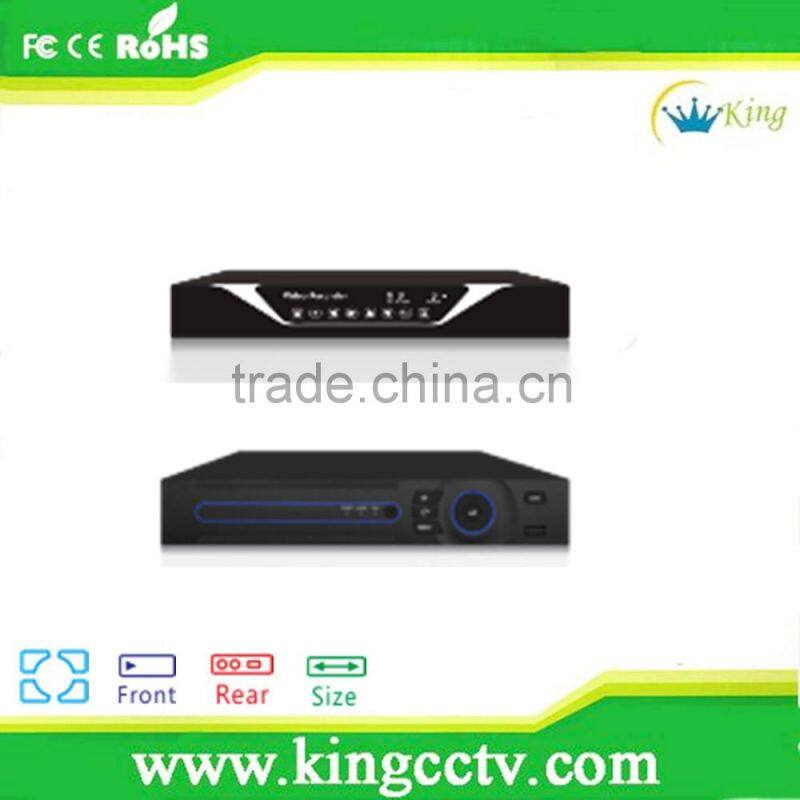

Help CenterLow Price TVI/AHD/NVR/DVR ONVIF 16ch H.264 NVR Home Surveillance XVR
Related Products
-
Cheapest 16ch NVR ONVIF Support Small Standalone NVRUS$ 28 - 30MOQ: 1 Piece -
New CCTV Product 8ch 1080P AHD DVR Hisilicon 1080P 5 in 1 XVR 8 Channel AHD TVI DVR NVRUS$ 80 - 84MOQ: 1 Piece
-
Hot Sale KVR 4CH 1080P HD DVR With TVI/AHD/NVR/DVR 4 in 1 DVRUS$ 48 - 50MOQ: 1 Piece
-
8CH 4in 1 Hybrid DVR H.264 P2P Professional DVR AHD/TVI/Analog/IP DVRUS$ 41 - 43MOQ: 1 Piece
-
Newest CCTV Products 5 in 1 Hybrid XVR 4ch AHD DVR XVR 5 in 1 DVR Cloud DVR/NVR CCTV Camera SystemUS$ 48 - 50MOQ: 1 Piece
W What is the Specifications of our products?
Key features• H.264 Video compression
• TVI/AHD/NVR/DVR 5 in 1
• Support multi-mode switch
• AHD/TVI: 16CH*1080H
IPC: 4CH*5M; 9CH*3M;16CH*1080P
| XVR4208D | |
| Video/Audio input | |
| Video compression | H.264 |
| Analog video input | 8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio compression | ADPCM |
| Audio input | 2PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Video/Audio output | |
| Multi-mode switch | AHD/TVI:8CH*1080P IPC:4CH*5M; 9CH*3M; 16CH*1080P |
| HDMI/VGA output | 1024x768,1280x720,1280x1024 |
| CVBS output | 1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Encoding resolution | AHD/TVI:16CH*1080P@180FPS IPC:4CH*5M@40FPS; 9CH*3M@145FPS; 16CH*1080P@400FPS |
| Frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S |
| Video bit rate | 256kps~8192kps |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Audio bit rate | 16kpbs |
| Dual-stream | YES |
| Stream type | combine streams/ video stream |
| Playback resolution | AHD/TVI:1CH*1080P@9FPS; 8CH*720P@88FPS IPC:2CH*5M@20FPS;2CH*3M@30FPS; 4CH*1080P@100FPS |
| Synchronous palyback | 1/4CH |
| Hard disk | |
| SATA | 2 SATA III Ports, up to 4TB |
| eSATA | No |
| Capacity | each port support max 4TB HDD |
| External interface | |
| Network interface | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| Serial interface | 1PCS RS485 |
| USB interface | 2*USB2.0 |
| Alarm in/out | NO |
| General | |
| Power supply | DC12V |
| Comsumption | ≤12W |
| Working temperature | -10℃--+55℃ |
| Working humidity | 10%--90% |
| Chassis | 1.0U |
| Dmensions(W×D×H) | 255*215*45mm |
| Weight | 0.86kg |
|

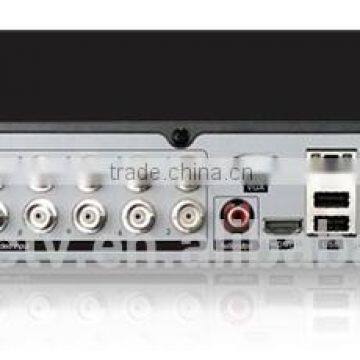

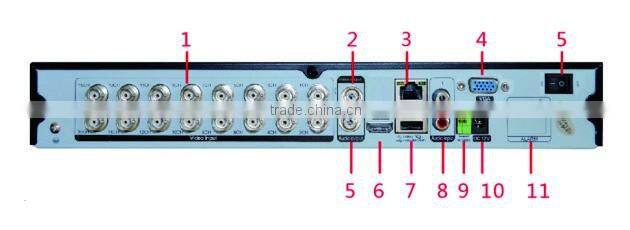

1. Video input 2. Video output 3. LAN network interface 4.VGA interface 5. Audio in 6. LAN network interface 7. HDMI interface 8. Audio input 9. USB interface 10. RS-485 11. DC 12V |
W What is the Applications of our products?
P Packaging &Shipping,Trade Terms
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
* Presale: product consultation and solution design can be provided.
* After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..
3. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.
with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
F FEEDBACK
C Customers from All over the World
F FAQ
Q1. Can I get samples?
A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment.
Q2. Are you factory?
A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.
Q3. How about warranty period? If any problem, can I get enough support?
A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.
Q4. Why the shipping cost is so much? How about delivery time?
A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.
Q5. Can I become your sole distributor in my place?
A6. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.
Q6. Can you give us enough brochures and ideas as promotion to our customers?
A6. Yes, we’d love to help you promote your business. Welcome to share your idea of your market status and we will give you valuable advice and detailed information you need.
Q7. Can you make OEM products for us?
Q8. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
