Specifications
PTP Aluminum Foil for Drug Blister PackingPharmaceutical Blister Aluminum Foil
Aluminum Plastic packing
PTP Aluminum Foil for Drug Blister Packing

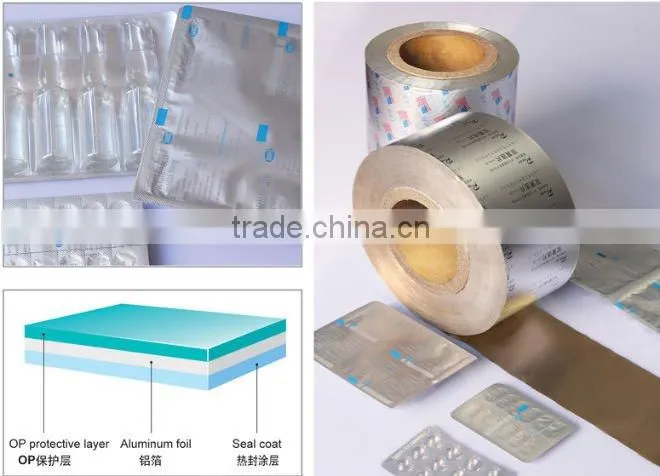

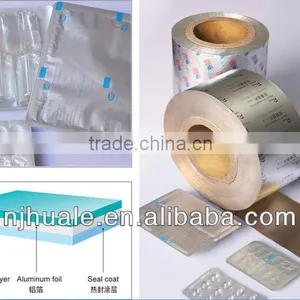

1. Product Structure:
OP 1-2 GSM/ALU 20Mic/VC 2-3 GSM
Thickness: 23Mic~25Mic
Width: Not more than 1100mm
Note: Other companys located in China just can Not more than 800mm
2. Description:
(1)Features:
1) Resistant to gas, moisture, light and chemical
2) High stability and sanitation standards
3) one side coated HSL for heat sealing with PVC, PVC/PVDC or ALU ALU FOIL.
4) Applications: Blister packages
(2)Specifications:
1) Alloy: 8011
2) Temper: Hard
3) width: ≤1000mm (according customer requirements)
4) Thickness: 20-30micron (before coating)
5) Classification: Unprinted, printed
6) Coating thickness options:
1. 2-3GSM with tolerance of +/-0.5GSM
3-4GSM with tolerance of +/-0.5GSM
4-5GSM with tolerance of +/-0.5GSM standard, if not specified, heat sealing coating is 3 with tolerance of +/-0.5GSM , both seal strength with PVC/PVDC 7N/25mm min,
2 .primer or OP: 1 GSM
7) Printing and lacquer coating: printed as per text, layout and shade approved by customer. for non-printed specification, clear lacquer to be coated as a protective coating and good printability. Printing inks and lacquer coating are capable to with standard 180deg. C for 1 sec. dwell time. And we could supply aluminum foil for printing on both sides.
8) Structure: HSL/ALU FOIL/ OP
9)Inner packing: Core diameter: 76mm, Out diameter: 240-280mm Max (as your requirement)
10) Out packing: protected by plastic bag, foam, hard carton, wooden pallets.
Use for packing capsule, tablet and so on in alu-alu at the pharmaceutical factory.
3. Composition & Technical Details:
|
Material
|
Microns | Weight(GSM) | Tolerance + _ |
|
OP |
1-2 | 1-2 |
0.2 |
|
ALU Foil |
20 | 54 | 10% |
|
VC |
2-3 | 2-3 | 0.2 |
|
Total |
23-25 | 57-59 | 10% |
Production process:
Production process:
Welcome to ask for price!
