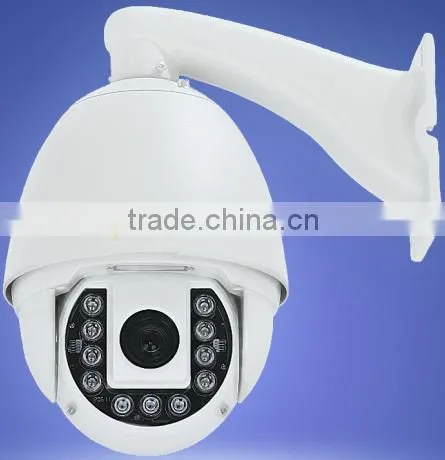

HD 1080P/2.0M Low Price IR 120M Ptz Outdoor Dome ip Camera Cctv Camera(HT-IS20SN-1080P)

HD 1080P/2.0M Low Price IR 120M Ptz Outdoor Dome ip Camera Cctv Camera(HT-IS20SN-1080P) thumbnail-1
HD 1080P/2.0M Low Price IR 120M Ptz Outdoor Dome ip Camera Cctv Camera(HT-IS20SN-1080P) photo-1
US$ 640 - 665 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HK
Model Number:
HK-HT-IS20SN-1080P
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HK
Model Number HK-HT-IS20SN-1080P
Type Digital Camera
Style Dome Camera
Sensor Other, CCD, CCD
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

Specifications

IP PTZ camera
1) 2M(1920x 1080)&1080P
2) Onvif 2.0, Max.25 /30fps
3)20X Zoom, IR 120M
4) 2Mp camera

Online Demo

HD_IR_PTZ_Camera_Online Demo

       (Please contact us to get User/Password)



Record Demo

    • HD_IR_PTZ_Camera_HK-HDIS18CH-720P Day_Mode_Record
    • HD_IR_PTZ_Camera_HK-HDIS18CH-720P Night_Mode_Record



Network Features

  1. Mobile Phone Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android).
  2. Can Support Multiple Browser, such as: FireFox,Chrome,Internet Explorer
  3. Built-in Web server enables the use of a standard Web browser for viewing and management.
  4. Support dynamic IP address, LAN, Internet (ADSL and Cable Modem).
  5. Support protocals: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP.
  6. ONVIF Ver. 2.0 conformance.
  7. Support whole TCP/IP protocol.
  8. Support CVBS video output and overlying DDNS,user name,password and other info.
  9. Up to 10 viewers can directly access the camera simultaneously.

HD 1080P/2.0M low price IR 120M ptz outdoor dome ip camera cctv camera(HT-IS20SN-1080P)IR Features

    1. Outdoor waterproof IR Speed Dome Camera
    2. Two group IR LED , the big group is 12pcs at  Φ20,the small is 42pcs at Φ8,and the IR distance is 120M
    3. The IR led can change according distance. if the distance is less than 30m, only 42pcs small LED on, if the distance is more than 30m, the 12pcs LED will turn on. the temperature will be less than 48°C after 8 hours continuous working.

Compression functions

    1. high-density and programmable communication media processor dual core 32-bit DSP(TI DAVINCI DM368F);
    2. H.264 Main Profile;
    3. Up to 25 frames per second in all resolutions ranging up to 720P(1280*720);
    4. support dual stream, AVI format;
    5. Low power consuming of the DSP, suit to long time running;
    6. The encoding parameter can be adjusted dynamically (bit rate/frame rate/image quality);
    7. support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjust;
    8. Audio Compression: support two-way audio Bidrectional Talk, support audio and video synchronized output.

Record functions

    1. Provide Manual / Timing / Alarm / Motion-detection recording functions
    2. Provide record through the network

High Speed Dome Camera Feature

    1. New high strength aluminum-titanium alloy structure, effectively prevent deforming and keep surface bright
    2. Newly-designed black shield inner cover, more concealing
    3. Static remove dust, double deck ventilate hole constant temperature design, apply IP66 safety standard.
    4. High quality step motor and belt, make it more reliable
    5. Intelligent speed shift, 0.5°/S-180°/S smooth pan shift, 0.5°/S-120°/S tilt shift, 180° auto flip, 360° continuous revolve.
    6. 220 preset points and 3 groups multiple cruise, every group 16 preset points.
    7. programmable setting cruise speed between presets and presets stick time, 1~64 level cruise speed setting and 1-60 second preset stick time.
    8. proportional zooming, reduce pan/tile speed according to zooming level, ensure clear and balanced image,get the best picture.
    9. Private zone masking, can freely set private zone masking, direct proportion enlarge or shrink to lens zooming level.
    10. Inbuilt multiple protocol, allow any system.
    11. Power-off information protect and inbuilt surge, lightning strike protection device.
    12. Accessory function: Vandal-prevent device.

Technical Index

    1. Support multi-decoding types
    2. Support setting and calling the Preset positions and Auto Scanning paths
    3. Up to 10 users to access the Network Cameras
    4. upport mature Central Management Software and the software can be custom-tailored
    5. Support Bi-directional Voice, 1ch Mic input and 1ch linear audio output.
    6. Auto-recovery after exception occurs or the network being reconnect.
    7. Alarm recording: video lost, motion detection and sensor alarm
    8. level running: 360° continuous revolve, 180° auto flip.t.
    9. Presets points quantity: 220pcs program speed and stick time.
    10. Cruising Route: 3 groups multiple cruise, max to 16 preset points every group.
    11. Private zone masking: can set by yourself.
    12. Proportional zooming: six grade.
    13. Auto-reset: can set by yourself.
    14. Control protocol: Multi-Protocols.
    15. Power supply: 12VAC 5A.
    16. Temperature Operation: -40°C; -60°C.
    17. Installation option: Wall mounting bracket, Suspending installation bracket, in-ceiling.

Specifications

Model HK-HT-IS20SN-1080P HK-HT-IS18HI-1080P
All-In-One Camera Sony 6300 All-in-One HD Camera HITACH DI-SC220 All-in-One HD Camera
Sensor 1/2.8" Exmor CMOS 1/3" CCD
Effective Pixels 2.0M 2.0M
Resolution 1080P 1080P
Lens f=4.1~73.8mm
Zoom 20X Optical Zoom, 12X Electronic Zoom 18X Optical Zoom, 12X Electronic Zoom
Minimum illumination 0.01Lux/0.001Lux 0.01Lux/0.001Lux
Horizontal Angle of View 2.8~48 3.2~55.2
S/N ratio > 50dB
Electric shutter 1/50~1/10000s 1/4~1/10000s
Privacy Zone OFF ON
IR Induce YES YES
Color to Black/White Yes Yes
WDR NO Yes
System Embedded RTOS design, dual core 32-bit DSP(TI DAVINCI DM368F)
Video H.264 main profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjust
Resolution Main stream: 1920*1080;Sub stream: 704*576(D1)
ONVIF 2.0
Network 1 * RJ45, 10/100M; Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
CVBS video output Support CVBS video output and overlying DDNS,user name,password and other info.
3G Support(optional)
WIFI Support(optional)
Mobile Monitor Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Power Supplier DC 12V power supply;
Other Function Support WEB remote config,OSD,motion detect
Temperature Storage -45 TO 65 °C;
Temperature Operation -40 TO 60 °C;
