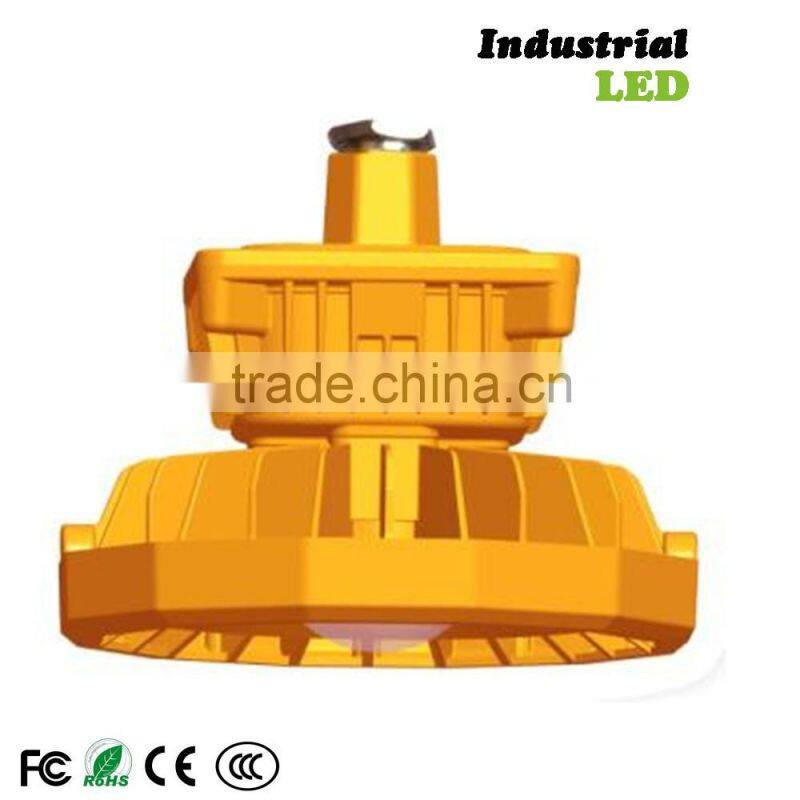

50W IP66 LED explosion-proof light outdoor security light

BGL-03B  Maintenance-free explosion-proof lamp

50W IP66 LED explosion-proof light outdoor security light

Product features:

1. High efficiency and energy-saving: imported integrated LED chip with high efficiency for light source, light efficiency reaching to 100-130lm/v, saving more than 60% energy in comparison to halogen lamp.

2. Highest explosion-proof level, IP66, the whole lamp has the supreme explosion-proof protection performance.

3. Diecasted hard aluminum alloy casing with pressure-casted formation, surfacing high voltage electrostatic powder coated, rust resistant and corrosion resistant.

4. Design of cavities for light source and electric makes it efficiently avoid the heat from adding together, and so it has good heat dissipation performance, lamp is more stable and reliable.

5.Transparent high boron silicon toughed glass, anti-impact, collision and corrosion resistant, resistant to rapid heat change.

6.With constant current & voltage control, and short-circuit & over voltage protection, driver can work even under fluctuated grid without noise or stroboflash.

7.Cavities for light source, electric parts and wiring terminals are separated from each other to ensure the system’s stability; The wiring cavity is designed to facilitate the users’ wiring.

8. Multi-mounting modes.

Specification:

Rated voltage: AC 220V

Rated power: LED 50W (40/60W can be customized)

Luminous flux: 50W 5000lm

Casing material: High toughed aluminum alloy

Transparent part material: Special toughed glass

Waterproof level: IP66

Corrosion-proof level: WF2

Explosion-proof mark: Ex dIICT4 Gb/DIP

Weight: 3.8Kg

Mounting method: wall mounted, suspension mounted, ceiling mounted, flange mounted, banister mounted

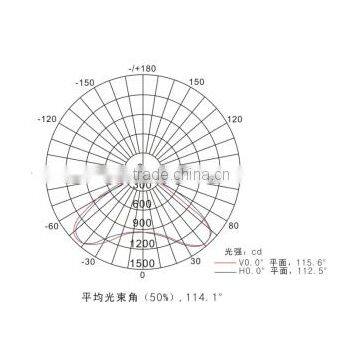

Distribution curve flux:

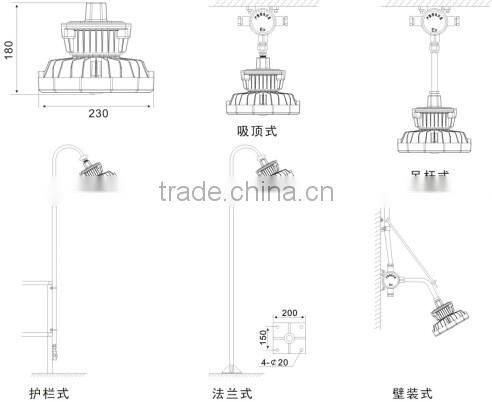

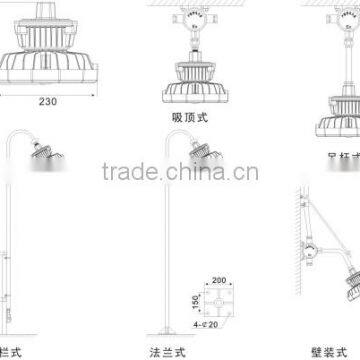

Mounting illustration:

 50W IP66 LED explosion-proof light outdoor security light

Factory pictures:

Front door:

Office entrance

Office environment

Production area photos

Application

Our promises for clients:

1. Just provide good quality products.

2. Make sure to give you the most favorable prices.

3. Provide 3years warranty.

4. Have long-term cooperation with our forwarder, so we can provide you the lowest freight and the fastest service.

5. Have professional engineers to design and develop new led lights according to your requirements.

6. Design the colored boxes for you when you have larger quantity.

7. Can use your logo and label on our products.

8. Your inquiry will be replied in 10 hours

Packaging Detail: Foam + carton. It can be packed according to customers' requirement.

Shipping Options:

A. By express: Such as DHL, UPS, TNT, etc. The dispatch time is about 3-7 working days.

B. Air Freight: When you order more than 100kg which will be more economical than express.

C. Agent designated by client: Please tell us the contact details of your shipping agent/forwarde.

Payment Terms:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
2-3 years warranty
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not
urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers' questions;
2. If anything goes wrong with the products' quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;
Each lamp should pass all these QC procedures before shipping to customer.
Delivery Detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive .
or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
