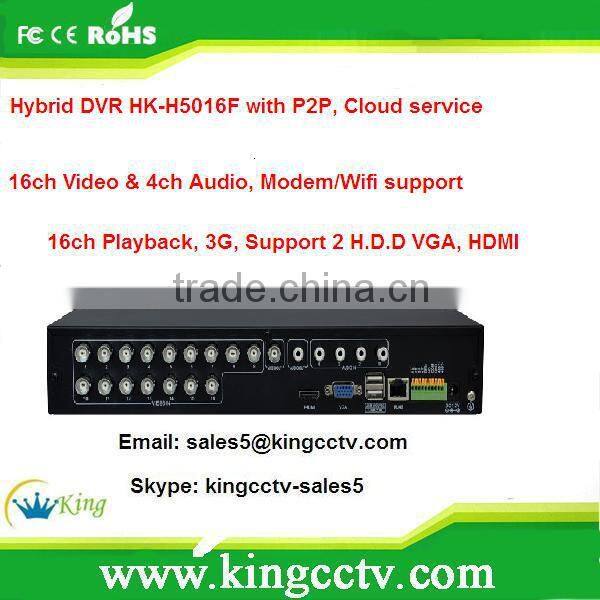

16ch Cheap Hybrid video capture h 264 HK-H5016F
Overview
• 4/8/16ch Effio 960H video & 4ch IP camera inputs
• 4ch audio in &1ch audio o
• Effio: 4/8ch@960H,16ch@CIF
• IPC: Max 50fps@1080p, 100fps@720p, 200fps@960H
• HDMI output up to 1080p, VGA
• alarm in & relay out Optional, RS485
• 4/8/16ch sync realtime playback
• 2 SATA, 2 USB, 1RJ45(1000M)
• support 3G & WIFI extension
• support P2P,cloud service
Specification
Model |
HK-H5004F |
HK-H5008F |
HK-H5016F |
|
System |
Main processor |
Hi3520D |
||
Operating system |
Embedded LINUX operating system |
|||
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|||
Interface |
Operation interface |
16 bit real color GUI interface support mouse operation |
||
Display screen |
Take all analog input as an example, others are depended on the selected channel mode |
|||
1/4 screen |
1/4/8/9 screen |
1/4/8/9/16 screen |
||
Video |
Video standard |
PAL(625 lines,50fps);NTSC(525lines,60fps) |
||
Image encode |
H.264(High Profile) |
|||
Monitor quality |
Monitor:D1;VGA:High Definition;HDMI: High definition |
|||
Playback quality |
Max support 1080P; |
|||
960H/D1/HD1/CIF/QCIF |
960H/D1/CIF/QCIF |
D1/HD1/CIF/QCIF |
||
Encode capability |
4ch D1/960H real-time |
8ch 960H/D1 real-time |
2ch D1+14ch CIF real-time |
|
Decode capability |
4ch D1/960H real-time |
4ch 960H/D1 real-time |
2ch D1+14ch CIF real-time |
|
Multi-mode video input |
Local analog input: 4*D1/4 *960H |
Local analog input: 8*960H/8 *D1 |
Local analog input: 16*D1 |
|
|
Local analog + network digital input: 2 *D1+(1*1080P+1*720P) | ||||
|
All network digital input: 8*960H/4*720P/2*1080P/1*720P+7*D1/ 1*1080P+1*720P+2*D1 | ||||
Motion detection |
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
|||
Audio |
Audio compression |
G711A |
||
Bidirectional talk |
support |
|||
Record and playback |
Record mode |
manual>alarm>motion detection>timing |
||
Local playback |
Under the local mode : 4*960H,Max support 4ch playback(4*960H @25fps) |
Under the local mode: 8*D1, Max support 4ch playback (1* D1@25fps)
|
Under the local mode: 2*D1+14*CIF, Max support 8ch playback(2*D1+6*CIF @25fps) |
|
Video search |
Time,date,event,channel search |
|||
Storage and back up |
Space occupation |
Video:CIF 4~5G/day*channel,D1 16~20G/day*channel; |
||
Video storage |
Local HDD, Network |
|||
Back up mode |
Network backup,USB portable HDD,USB DVD/RW,SATA DVD/RW |
|||
Interface |
Video input |
4ch BNC |
8ch BNC |
16ch BNC |
Video output |
1ch BNC,1ch VGA,1ch HDMI |
|||
Audio input |
4ch RCA(200-2800mV,30KΩ) |
2ch RCA |
||
Audio output |
1ch RCA(200-3000mV,5KΩ) |
|||
Alarm input |
N/A(4chs Optional) |
|||
Alarm output |
N/A(1ch Optional) |
|||
Network interface |
RJ45 10M/100M self-adaptive Ethernet port |
|||
PTZ control |
1 RS485;support multi kinds of PTZ protocol |
|||
USB port |
2*USB2.0 |
|||
HDD port |
2 SATA port(2*4T) |
|||
Wireless port |
3G,WIFI(extension via USB port) |
|||
Other |
Power |
12V/3A |
||
