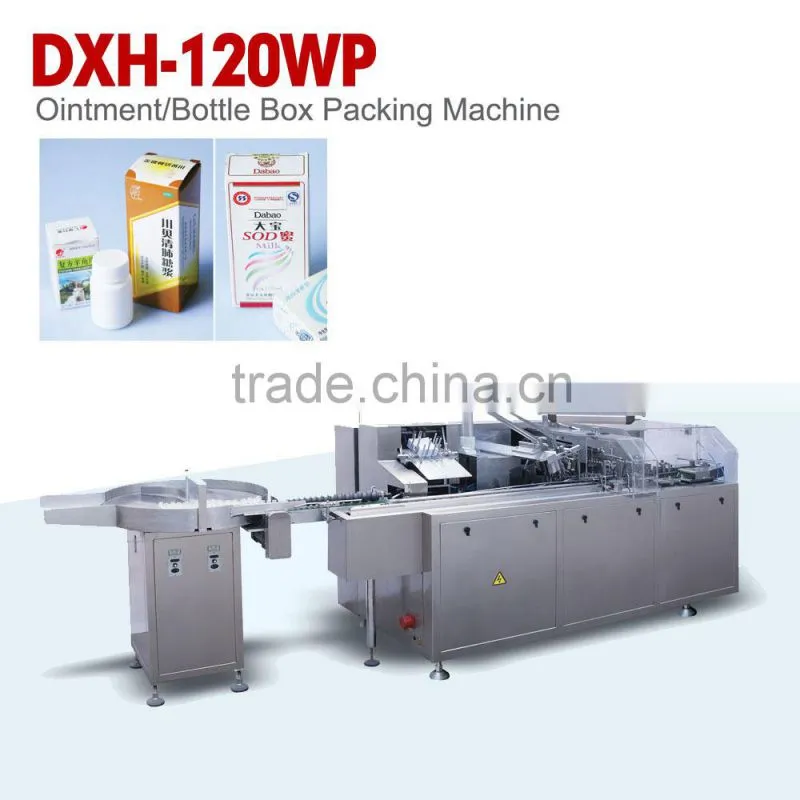

Automatic carton box packing machine for health supplement bottles
Applications:
1.Widely applied. It can pack different sizes and specifics of tubes or similar objects.
2.The working process include automatic leaflet folding inserting, carton opening, object inserting,batch number embossing and cartoning sealing.
3.All working stations equipped electronic sensor for running status monitoring.
TECHNICAL PARAMETER
Cartoning speed |
50-100 boxes/min |
|
Carton |
Request |
250-350g/m2 (according to carton size) |
Specification |
(50-200)×(20-80)×(14-45)mm |
|
Leaflet |
Request |
55-65g/m2 |
Folded Leaflet Specification(1-4) Fold |
(80-240)×(90-190)mm (L×W) |
|
Compressed air |
Pressure |
≥0.5Mpa |
Consumption |
120-160L/min |
|
Motor Power |
220V 50HZ 0.75kw |
|
Dimension |
4200×1200×1600mm (L×W×H) |
|
Net weight |
1600kg
|
|
Performance and characteristics
1. It adopts PLC automatic control and touch screen operating system with speed adjusting by stepless motor.
2.Main transmission system gets overloading protecting device.
3.Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.
4.The machine gets stable performance, easy to change different sizes of products.
5.Detection and Rejection of cartons which gets no object fed or leaflet fed.
6.Rotary feeder can feed different sizes of tubes or bottles by equipping with speed adjusting motor.
AFTER SERVICE:
For the big problem that you can not resolve by yourself, our engineer was available to go over seas for helping you to resolve the problem. For small problems, we can take the video and pictures to guide you how to adjust and fix the machine. We have professional after service team which could help you to resolve the problem within 24 hours.
WARRANTY
v Technical Support(24 hours on line trademanager, skype, MSN, mobile).
v Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
v Video for debugging after sent products.
v Pre-maintance.
v Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
v Welcome send us samples to test on our machine and we will take video for you to confirm.
v Welcome visit our factory for checking machine and offer training course for your workers.
INSTALLING AND COMMISSION
If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging& Boarding expenses shall be payable by you. In case the stay of our technician, the service charges @US $ 100 per day will be charged extra.

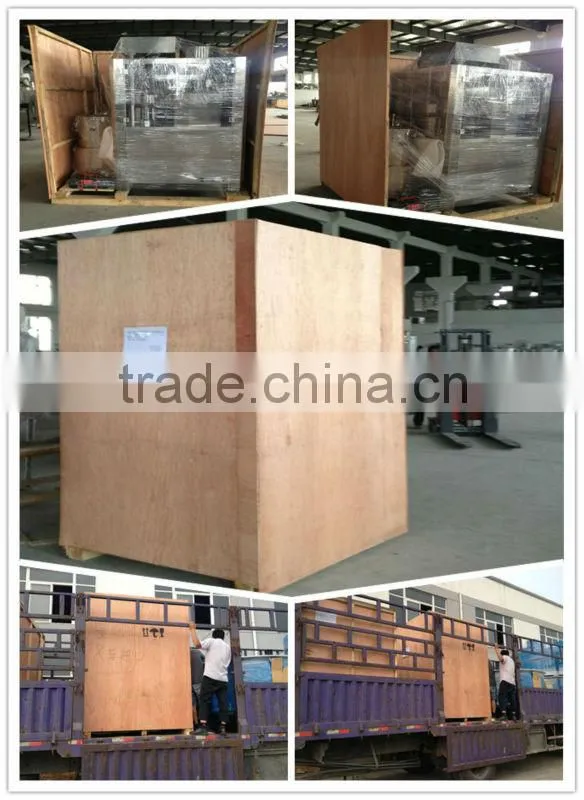

PACKAGE
v The machine will not be shaking in transport with wooden fixed.
v The machine will not be affected with damp in transport with packed with PE plastic bags.
v Easy shaking station will fixed with hard rope.
v Long machine will packed separately.
v If there are strict requirements, chassis can use iron girders.
