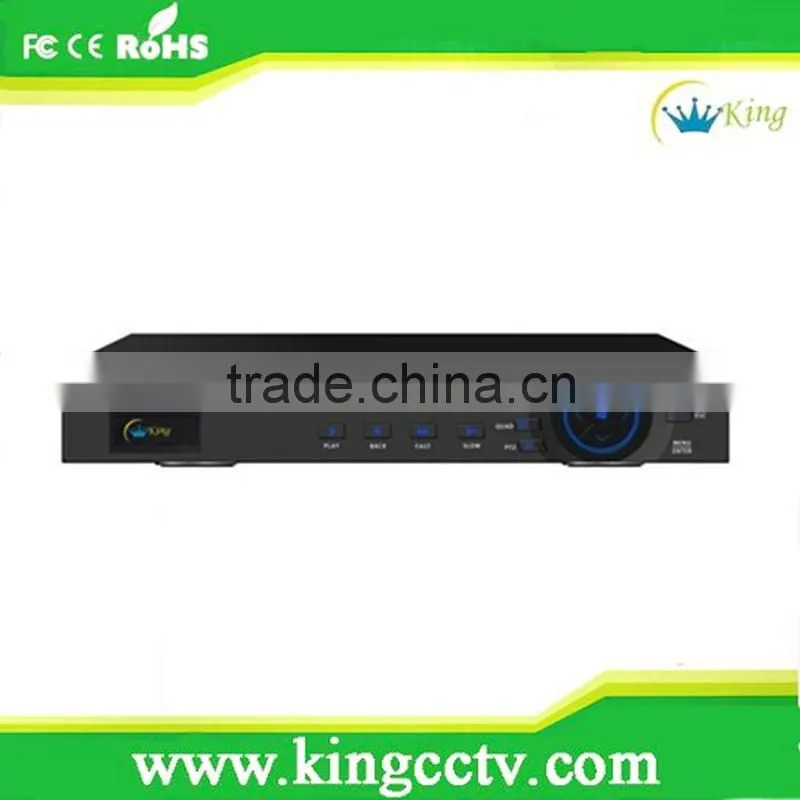

Professional 5mp nvr system 24ch 1080p nvr
Professional 5mp nvr system 24ch 1080p nvr
Specifications
| Model No. | HK-NVR5604Q | HK-NVR5616Q | HK-NVR5624F |
| Main Processor | Hi3535 | ||
| Operating System | Embedded Linux | ||
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | ||
| Operation interface | 16 bit real color GUI interface support mouse operation | ||
| Display screen | 1/4/8/16 | 1/4/8/16 | 1/4/8/16/24/32 |
| Video standard | PAL(625 lines, 50fps); NTSC(525lines, 60fps) | ||
| Image encode | H.264(High Profile) | ||
| Monitor quality | Monitor: D1; VGA: High Definition; HDMI: High definition | ||
| Playback quality | 3M/1080P/960P/720P | 3M/1080P/960P/720P | 5M/3M/1080P/960P/720P |
| Decode capability | 2*3M | 4*3M | 2*5M or 4*3M |
| Motion detection | Each channel can set 192(16*12) detection area | ||
| Audio compression | G711A | ||
| Bidirectional talk | support | ||
| Record mode | manual>alarm>motion detection>timing | ||
| Local playback | support 2ch playback | support 4ch playback | support 4ch playback |
| Video search | Time, date, event, channel search | ||
| Space occupation | Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;960H 12G~20G/day*channel;720P 20~30G/day*channel; 1080P ~40G/day*channel;Audio:691.2M/day*channel |
||
| Video storage | Local HDD, Network | ||
| Back up mode | Network backup, USB portable HDD, USB DVD/RW, SATA DVD/RW | ||
| Video input | 4*3M/8*1080P/16*960P | 16*3M/16*1080P | 8*5M/16*3M/24*1080P/32*960P |
| Video output | 1ch VGA, 1ch HDMI | ||
| Video Loop out | N/A | ||
| Audio input | 1ch RCA | ||
| Audio output | 1ch RCA(200-3000mV, 5KΩ) | ||
| Alarm input | N/A | ||
| Alarm output | N/A | ||
| Network interface | RJ45 10M/100M self-adaptive Ethernet port | ||
| PTZ control | 1 RS485; support multi kinds of PTZ protocol | ||
| USB port | 2 * USB2.0 | ||
| HDD port | 2 SATA port(2*6T) | ||
| Power | 12V/3A | ||
| Consumption | less than 15W(not include H.D.D.) | ||
| Working Temperature | 0℃ ~ +55℃ | ||
| Working Humidity | 10%~90% | ||
| Dimension | L335*W250*H50 | ||
| Weight | 2.5KG | ||
Professional 5mp nvr system 24ch 1080p nvr
Professional 5mp nvr system 24ch 1080p nvr
1.Our product line includes CCTV Camera, IP Camera, PTZ Camera, Network Camera, AHD Camera, NVR, DVR and all kinds of accessories.
2. All of our products are factory direct selling. With our own factory, we strictly monitor the price and quality in order to meet customers's requirements.
3. We have accomplished the following big projects:
- CCTV Surveillance for Greece National Park
- CCTV Surveillance for Jewish Historical Museum Amsterdam
- CCTV Surveillance for Barranquilla Harbour in Colombia
- CCTV Surveillance for Shell in Japan
Professional 5mp nvr system 24ch 1080p nvr
Welcome to vist our team anytime you like
Professional 5mp nvr system 24ch 1080p nvr
Shenzhen KingCCTV Technology Co.,Ltd
Overseas Marketing Sales
Edison Tang
Mail: sales6(at)
Skype:kingcctv-sales6
Whatsapp:18320821085
WeChat:281481464
Welcome to inquiry
Professional 5mp nvr system 24ch 1080p nvr
(1)What is your MOQ?
Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.
(2)How about delivery time?
Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.
(3)Payment terms?
Edison: We accept T/T, Paypal, Western Union payment.
(4)Can I be your exclusive representative?
Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.
(5)How about warranty?
Edison: All of our products are of 2 YEAR warranty.
(6)Can you do OEM/ODM?
Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.
Professional 5mp nvr system 24ch 1080p nvr
