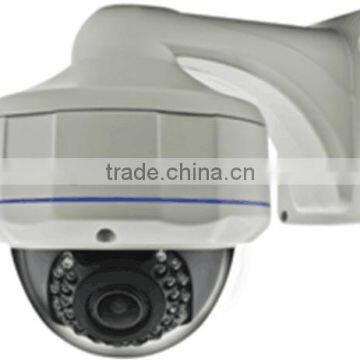

Help CenterDome Style Varifocal Lens HD IP Camera With Housing
Related Products
-
720P D1 Stream POE 1MP Bullet Fix Lens HD IP CameraUS$ 18 - 33MOQ: 5 Pieces -
CMOS POE H 264 ONVIF 1MP HD IR IP CameraUS$ 19 - 33MOQ: 1 Piece
-
Outdoor POE 1MP Bullet Fix Lens HD IP CameraUS$ 18 - 33MOQ: 5 Pieces
-
Housing IR Cut 2mp Varifocal Lens HD IP CameraUS$ 46 - 59MOQ: 1 Piece
-
Cloud Useing COMS 2MP Bullet Fix Lens HD IP CameraUS$ 18 - 33MOQ: 5 Pieces
Features
Dual-core 32bit DSP(Hi3518E)
1/4" 1.0M OV 09712 Scan CMOS; 1.0M/720P, Main stream: 1280*720(25fps),
Sub stream:704*576(D1)
H.264/MJPEG; Support Mobile (iPhone, Windows Mobile, BlackBerry, Symbian, Android), 30pcs IR LEDs,
25m IR Distance, IR Cut
Built-in POE is Optional ($6) Support ONVIF2.2
Support Cloud
With 2.8-12/6-15mm lens,
With Brackets, Without power supply
W What is the Specifications of our products?
| Model # | HKHK-SAT210(-P) |
| System | Embedded RTOS design,dual core H.264 DSP(Hi3518E),pure hardware compression, watchdog |
| Pixel | 1.0 Mega Pixel |
| Image Sensor | 1/2.8" SONY IMX178 low-illumination CMOS |
| Min. Illumination | IR ON 0Lux |
| Lens | 2.8-12mm HD Varifocal lens/3.5-8mm HD Varifocal Lens is optional |
| Lens interface | CS |
| Day&Night | IR-cut |
| Compression | |
| Video Compression | H.264 High Profile, JPEG Screen shot |
| Main/Extra Stream | 1MP(2592*1920)/D1(704*576) |
| Video output bit rate | 32K ~ 8192Kbps |
| Audio Compression | G.711a |
| Image | |
| Max. Resolution | 2592*1920 |
| Frame Rate | 25/30fps(2592*1920) |
| Image Setting | Saturation, Brightness, Contrast adjustable through Client software or web server |
| Network features | |
| Storage | Network storage, TF card storage(optional) |
| Intelligent Alarm | Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP ,RTSP |
| Basic | Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection |
| NVR/HVR | YES |
| Mobile Monitor | Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) |
| ONVIF | 2.2 |
| Multiple Browsers | FireFox, Chrome, Internet Exploerer |
| Interface | |
| Communication Interface | 1pc RJ45 10M/100M self-adaptive Ethernet interface |
| Video Output | 1Vp-p Composite Output(75Ω/BNC) |
| General parameters | |
| Operating Condition | -10~60 °C, Humidity 90% or less(non-condensing) |
| Power Supply | DC12V±10% |
| Power Consumption | 6W MAX |
| Protection Range | IP65 |
| LED | 36pcs φ5 IR LEDs, IR distance 40M |
P Product Photos
W What is the Effect image of our Products?
W What is the Applications of our products?
P Packaging &Shipping,Trade Terms
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
* Presale: product consultation and solution design can be provided.
* After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..
3. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.
with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
Dome style Varifocal Lens HD IP Camera with Housing
F FEEDBACK
C Customers from All over the World
F FAQ
Q1. Can I get samples?
A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment.
Q2. Are you factory?
A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.
Q3. How about warranty period? If any problem, can I get enough support?
A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.
Q4. Why the shipping cost is so much? How about delivery time?
A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.
Q5. Can I become your sole distributor in my place?
A6. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.
Q6. Can you give us enough brochures and ideas as promotion to our customers?
A6. Yes, we’d love to help you promote your business. Welcome to share your idea of your market status and we will give you valuable advice and detailed information you need.
Q7. Can you make OEM products for us?
Q8. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
