Dahua 4ch Cctv Camera System PoE: IPC-HD2100 & NVR3204

Model

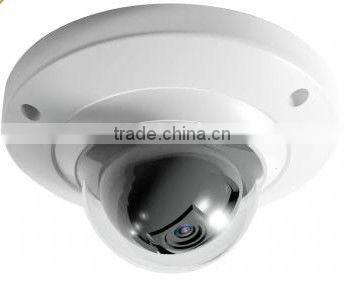

DH-IPC-HD2100P

DH-IPC-HD2100N

General

Processor

TI DaVinci Series DSP

Operating System

Embedded LINUX

Resource

Simultaneous remote monitoring, local recording and remote control

User Interface

WEB, CMS(DSS/ PSS), DMSS, NVR

Camera

Image Sensor

1/3” 1.3 Megapixel Aptina CMOS

Effective Pixels

1280 (H)×960(V)

Electronic Shutter

Auto/Manual, 1/3~1/10000s

Auto/Manual, 1/4~1/10000s

Mini. Illumination

0.1LUX/F1.2(Color), 0.05LUX/F1.2(B/W)

Signal Noise Ratio

>50dB

Gain Control

Auto/Manual

White Balance

Auto/Manual

Day/Night

Electrical Day/Night

Lens Mount

M12

Lens

3.6mm (2.8mm/6mm/8mm optional)

Video

Video Compression

H.264/MJPEG/JPEG

Image Resolution

1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480)

Encoding Speed

1.3M (1~15fps)+ D1(1~15fps)

1.3M (1~15fps)+ D1(1~15fps)

720P(1~25fps)+ D1(1~25fps)

720P(1~30fps)+ D1(1~30fps)

Bit Rate

128K~8192Kbps

Snapshot

Fastest 1fps JPEG capture

Video Format

PAL

NTSC

Network

Ethernet

RJ-45 (10/100Base-T)

Network Functions

HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPNP, NTP, Bonjour, SNMP, Onvif

Remote Operation

Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade

Environmental

Power Supply

DC12V, PoE

Power Consumption

Max.1.5W

Operating Environment

-10°C~+50°C, 10%~90%

Dimension

54mm x ¢110mm

Weight

0.25kg

Model

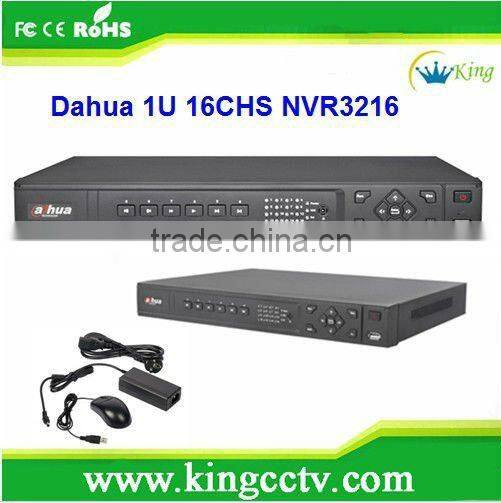

DH-NVR3204

DH-NVR3208

DH-NVR3216

System

Main Processor

High performance Dual-core embedded microprocessor

Operating System

Embedded LINUX

System Resources

Pentaplex function: live, recording, playback, backup & remote access

Control Mode

Front panel, USB mouse, IR remote control, Keyboard, Network

Video

IP Camera Input

4ch@D1 / 2ch@720P /1ch@1080P

8ch@D1 / 4ch@720P / 2ch@1080P

16ch@D1 / 8ch@720P / 4ch@1080P

IP Camera Supported List

Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY, ONVIF

Output

1 HDMI(video & audio), 1 VGA

Display

Display Split

1/4

1/4/8/9

1/4/8/9/16

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Tour Display

Support

Privacy Masking

4 self-defined four-sided zones for privacy masking for each camera

OSD

Camera title, time, video loss, camera lock, motion detection, recording

Recording

Compression

H.264 / MPEG4

Recording Resolution

1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)

Max Recording Speed

100/120fps@D1, 50/60fps@720P , 25/30fps@1080P

200/240fps@D1, 100/120fps@720P , 50/60fps@1080P

400/480fps@D1, 200/240fps@720P , 100/120fps@1080P

Recording Bit Rate

Up to 8Mbps

Up to 16Mbps

Up to 32Mbps

Recording Quality

CBR, VBR(1~6 level, level 6 is the best)

Recording Mode

Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

Recording Priority

Manual >Alarm >MD >Regular

Recording Interval

1~120 min (default: 60 min)

Video Detection & Alarm

Trigger Events

Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips

Motion Detection

Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)

Video Loss & Camera Blank

Support

Alarm Input

4 channel

8 channel

16 channel

Relay Output

3 channel
