Specifications

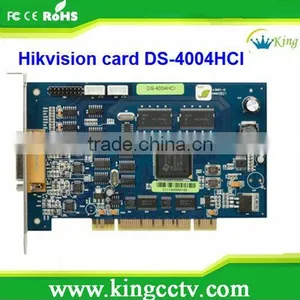

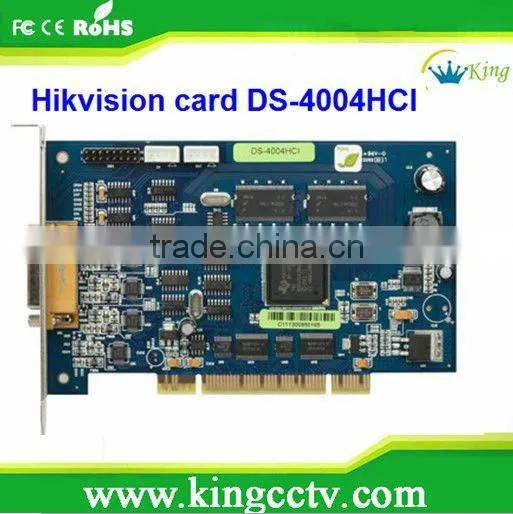

DS-4004hci Hikvision DVR Card:- video capture card
-D1 H.264 Compression
-100/120fps card PCI
- dvr pci card
hot selling ds-4004hci cctv pci dvr video capture card dvr pci card
Available Models:
Cards are stackable to obtain 64 channels maximum
DS4004HCI
4 channels video and audio CIF(real time)
or 2 channels video and audio 4CIF (real time)
or 1 channel 4CIF and 2 channel CIF (real time)
or 4 channel DCIF (real time)
or 4 channel 4CIF(not real time)
Features & Functions :
◊Real-time video and audio compression, no frame lost
◊4CIF preview resolution
◊Comply with PCI 2.2 standard , a PC can support up to 64 channels
◊Support WINDOWS 2000/XP operating system
◊Setable video quality and bitrate
◊Setable brightness , contrast , saturation and hue of video signal
◊Support motion detection
◊Support OSD , LOGO and MASK overlay
◊Support watermark technology
◊Support double encoding:
Specifications:
Item |
HK-DS4004HCI |
||||
Video Format |
PAL and NTSC |
||||
Video Input |
4 Ch BNC (1.0Vp-p, 75ohm) |
||||
Audio Input |
4 Ch BNC (2.0Vp-p, 1Kohm) |
||||
Preview Resolution |
Resolution: 704*576(PAL),704*480(NTSC) |
||||
Video Compression |
H.264, Support CBR, VBR; Frame: 25F/s(PAL),30F/s(NTSC) Output:32kbps-1000kbps(CIF) or 70kbps-4000kbps(4CIF) |
||||
Compression Resolution |
4CIF:704*576(PAL),704*480(NTSC) CIF:528*384(PAL),528*320(NTSC) 2CIF:704*288(PAL),704*240(NTSC) CIF:352*288(PAL),352*240(NTSC) QCIF:176*144(PAL),176*120(NTSC) |
||||
Audio Compression |
OggVorbis, Sample ratio is 16KHz, Output ratio is 16kbps |
||||
Power Consumption |
Less than 3.5W |
||||
Working Temperature |
-10 °C--+50 °C; |
||||
Working Humidity |
10%--90% |
||||
Dimension |
155mm*95mm |
||||
Computer Configuration (Recommend) |
Mainboard: Intel 945 or 965 Chipset Memory: 512MB Display Adapter: Geforce Mx400/420/440 series or ATI Radeon 7000/7200/7500/8500/9000 X550series |
||||
