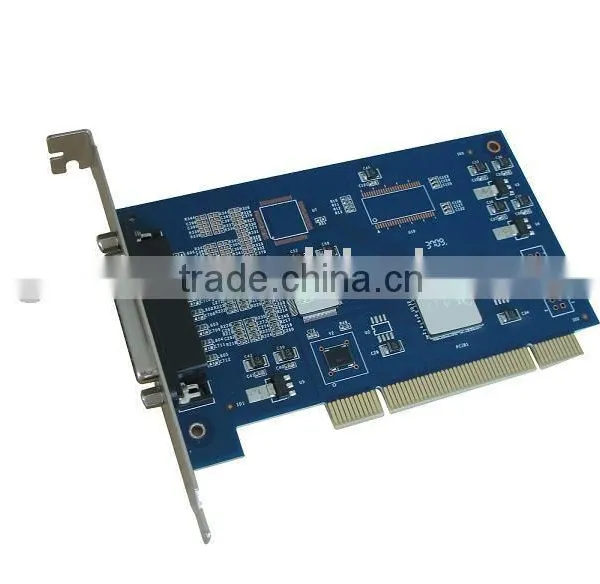

Help CenterPopular Techwell Dvr Card 4 Channel Software Dvr Card H.264(HK-804S)
Related Products
-
New 4 Channel Software Dvr Card H.264(HK-804S)NegotiableMOQ: 1 Piece -
New H.264 4 Channels Video and Audio CIF(real Time) PCI DVR Card(HK-804S)NegotiableMOQ: 1 Piece
-
New H.264 4CH Real-time High Performace Software Compression PCI DVR Video Card(HK-804S)NegotiableMOQ: 1 Piece
-
New High Performace H.264 4 Channels Real-time OEM DVR Card(HK-804S)NegotiableMOQ: 1 Piece
-
New H.264 4 Channels Real-time pc Card(HK-804S)NegotiableMOQ: 1 Piece
Specifications
1)4 CH Video Capture PC Cards2)Recording Resolution:CIF:352*288(P)352*240(N)
3)FPS:200(P)/240F/s(N)
4)Surveillance Equipment
Features & Functions of 4 CH Video Capture PC Cards
Real-time video and audio compression
4CIF preview resolution
Adaptor high quality Techwell
CIF compression Resolution: 352x240 (NTSC), 352x288 (PAL)
Support Intel,AMD,SIS,VIA,NVidia chip Mainboard,support Intel,AMD CPU
Support WINDOWS 2000/XP/VISTA operating system,supports widescreen high resolution LCD
Setable brightness , contrast , saturation and hue of video signal
Record format :AVI,can be played by Windows Media Player,Storm player,Nero,KMP etc.
Support motion detection
Multi screen monitoring, 1,4,9,16,24 split Screen available, support rotate display
Dual stream encode technology:Primary stream is for local store, Second stream is for narrowband networking.
Free Software upgradeable
Specifications of Surveillance Equipment:
Item |
Specifications |
||||
Video Format |
PAL and NTSC |
||||
Video Input |
4 chs |
||||
Audio Input |
4 chs |
||||
Preview Resolution |
D1:704*576(PAL),704*480(NTSC) |
||||
Preview Frame Rate |
100F/s(PAL)120F/s(NTSC) |
||||
Video Compression |
Real time H.264 |
||||
Compression Resolution |
CIF:352*288(PAL)352*240(NTSC) |
||||
Recording Frame rate |
100F/s(PAL)120F/s(NTSC) |
||||
Image quality |
10 Bits ADCs super high quality |
||||
HDD |
50-500M/H/CH |
||||
Hexaplex operation |
simultaneous record, live, playback, backup, control,& remote access |
||||
PTZ Control |
YES |
||||
DDNS |
Build-in DDNS,easy to view via Interent |
||||
Working Temperature |
-10--50 |
||||
Working Humidity |
10--90 |
||||
Power Consumption |
Less than 1W |
||||
Operating System |
Windows 2000/XPVISTA |
||||
Computer Configuration (Recommend) |
Mainboard: Intel,AMD,SIS,VIA Chipset Memory: 512MB Display Adapter: Geforce,ATI etc. |
||||
Send Inquiry to This Supplier
