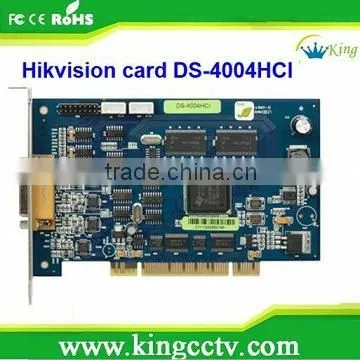

New 4 Channels H.264 Realtime 4CH Hikvision DVR Card ( DS-4004HCI )
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Money Gram Credit Card
You May Like
-
New 4 ChannelsH.264 Smart DVR Software Dvr Card Hikvision ( DS-4004HCI )
-
New 4 Channels Video and Audio CIF Hikvision Ds4004hci Hardware Dvr Card( DS-4004HCI )
-
New 4CH Hikvision Hardware Compression DVR Card( DS-4004HCI )
-
4CH Hikvision DVR Card Smart DVR Software( DS-4004HCI )
-
4 Channel H.264 Dvr Card (DVR-9404)
-
2014 New 8 Channel H.264 Hardware Techwell Hikvision DVR Card (HK-DS4008HCI)
Product Details
| Place of Origin | Guangdong, China | Brand Name | Hyking | |
| Model Number | DS-4004HCI |
Product Description
Specifications
-H.264 Hardware Compression,--4CIF:704*576(PAL),704*480(NTS
-4CH Hikvision DVR Card
- Smart DVR Software for Hikvision DVR
4CH Hikvision DVR Card DS-4004HCI Smart DVR Software for Hikvision DVR Cards
Cards are stackable to obtain 64 channels maximum
DS4004HCI
4 channels video and audio CIF(real time)
or 2 channels video and audio 4CIF (real time)
or 1 channel 4CIF and 2 channel CIF (real time)
or 4 channel DCIF (real time)
or 4 channel 4CIF(not real time)
Features & Functions :
Real-time video and audio compression, no frame lost
4CIF preview resolution
Comply with PCI 2.2 standard , a PC can support up to 64 channels
Support WINDOWS 2000/XP operating system
Setable video quality and bitrate
Setable brightness , contrast , saturation and hue of video signal
Support motion detection
Support OSD , LOGO and MASK overlay
Support watermark technology
Support double encoding Specifications:
Specifications:
Item | Specifications | ||||
Video Format | PAL and NTSC | ||||
Video Input | 4 Ch BNC (1.0Vp-p, 75ohm) | ||||
Audio Input | 4 Ch BNC (2.0Vp-p, 1Kohm) | ||||
Preview Resolution | Resolution: 704*576(PAL),704*480(NTSC) | ||||
Video Compression | H.264, Support CBR, VBR; Frame: 25F/s(PAL)30F/s(NTSC) Output32kbps-1000kbps(CIF) or 70kbps-4000kbps(4CIF) | ||||
Compression Resolution | 4CIF704*576(PAL)704*480(NTSC) CIF528*384(PAL)528*320(NTSC) 2CIF704*288(PAL)704*240(NTSC) CIF352*288(PAL)352*240(NTSC) QCIF176*144(PAL)176*120(NTSC) | ||||
Audio Compression | OggVorbis, Sample ratio is 16KHz, Output ratio is 16kbps | ||||
Power Consumption | Less than 3.5W | ||||
Working Temperature | -10--50 | ||||
Working Humidity | 10--90 | ||||
Dimension | 155mm*95mm | ||||
Computer Configuration (Recommend) | Mainboard: Intel 945 or 965 Chipset Memory: 512MB Display Adapter: Geforce Mx400/420/440 series or ATI Radeon 7000/7200/7500/8500/9000 X550series | ||||
