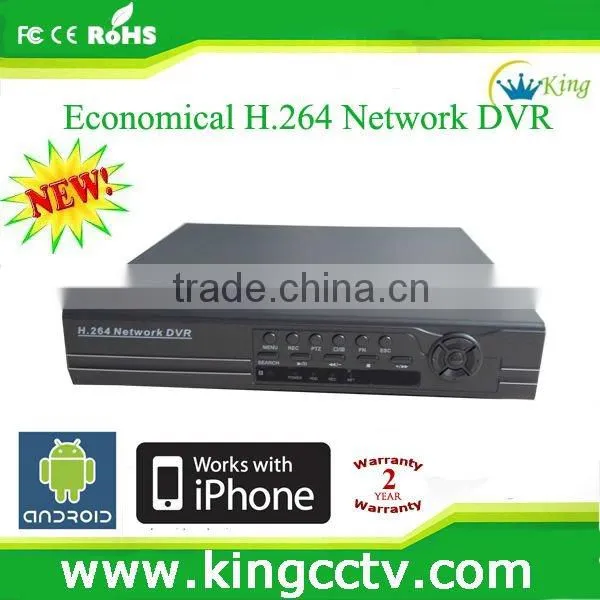

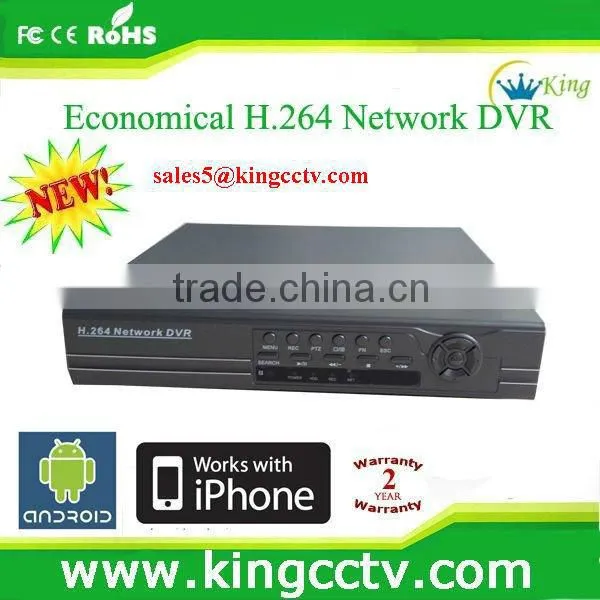

8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S

8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S thumbnail-1
8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S photo-1
US$ 63 - 65 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyking
Model Number:
HK-S2108F-S
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hyking
Model Number HK-S2108F-S

Specifications

8ch H.264 Realtime Recording Iphone Standalone DVR
-CIF,Half D1,D1 Standalone DVR
-Support 3G Mobile
-high perfomance

8ch H.264 Realtime Recording Iphone Standalone DVR  HK-S2108F-S





8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S

  • Operating System: Embedded LINUX;
  • Network Interface :10/100M Base-T, Ethernet interface, Browse via IE
  • Video Input:4/8/16 pairs;
  • Mobile Support:3G Mobile(Symbian&Windows CE& iPhone & Google Android)
  • Multi-language: English,Spanish,Portuguese,Italian,
    Turkish,Russian,Persian,Thai,Hebrew etc.
  • Compression Resolution: H.264,CIF,Half D1,D1 record support



Main Features:

  • 8chs  Video&Audio,  H.264 Compression
  • Record: 200/240fps@CIF, 50/60fps@Half D1, 25/30FPS@D1
  • 8 Chs Playback

Features:



(1) H.264 compression algorithm ideal for standalone DVR

(2) Support Multi-language: English,Italian,Turkish,Russian,French,Portuguese,Spanish, Polish, Hebrew, Thai,Traditional Chinese,Japanese.
(3) New standard for professional DVR with high performance and competitive price.
(4) Support 3G Mobilephone Surveillance with Symbian , Windows CE,Iphone , Google Android
(5) Realtime live display up to 4/8/16 camera with 720P high definition.
(6) 1,2,4,8,16 channel simultaneous realtime playback
(7) Support CIF realtime recording, support HD1,D1 non realtime.
(8) Dual encoding streams flexible for network transmission and mobile phone monitoring.
(9) Multiple function: Live, Recording, Playback, Backup & Remote access.
(10) Smart video detection: motion detection,camera blank, video loss.
(11) Powerful network software:built-in web server, multi-DVR client, MSS(mobile phone surveillance software) & CMS.
(12) Supports SATA HDD (maximal value of each hard disk is up to 2TB)

Specifications:

Model/Item

HK-S2108F-S

Compression Format

H.264 / G.711

Operating system

Embedded LINUX

Main Processor

High-performance embedded microcontroller

Control Mode

Front panel, USB mouse, IR remote control, Keyboard,Network

System Resources

Pentaplex function: live, recording, playback, backup & remote access

Video Input

BNC x 8
1.0VP-P,75Ω

Video Output

1 TV, BNC(1.0Vp-p, 75Ω), 1 VGA

Video Standards

PAL(100f/s)
NTSC(120f/s)

Video Resolution

D1/4CIF(704*576/704*480),HD1(704*288/640*240), CIF(352*288/352*240)

Main Stream Record Speed

CIF:(1-25/30f/s)
HD1:(1-12/15f/s)
D1:(1-5f/s/ch)

Extra Stream Speed

QCIF(1~25/30fps)

Video Image Quality

Super Best, Well, Good,Medium, Normal and bad

Recording Mode

Manual / Timer / Motion

Audio Input/Output

4 audio input, 1 audio output (RCA)

Hard Disk Storage

1 SATA HDD (capacity up to 2TB)

Alarm Input/Output

4 alarm input,1alarm output

Multiplex Operation

Live display / record / playback / backup / network operations

Playback mode

Multiple slow and rapid play speeds, manual and single-frame play modes,and support positioning the time by driving the sliding bar

Backup Device

USB 2.0 flash drive / USB moving Hard disk / Network

Pre-alarm Recording

recording for 5 seconds before alarming

Network Protocol

TCP/IP, PPPOE and DDNS

Ethernet

10/100 Base-T. Supports remote control and live view via Ethernet

Web Interface

Internet Explorer (5 users access simultaneously)
Operating System: Windows Vista / XP / 2000

VGA Interface

Built-in (optional)

IR Remote Control

YES (IR receiver built-in)

Video Loss Detection

YES

Video Adjustable

Hue / Saturation / Contrast / Brightness

PTZ Control

YES

USB Mouse

YES

Power Source

12V DC(¡À10%)

Key Lock (Password Protection)

YES

System Recovery

System auto recovery after power failure

Dimensions (mm)

1U,315mm(W)x52mm(H)x224mm(D)

Working Temperature

-10~+55 degree

Working Humidity

10%- 90%

Weight

Gross weight:3.0kg(without HDD)









8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S

DVS real host,super-network functions,Support IE browser centralized monitoring and CMS Software for multiple DVR from diferent place (up to 64 DVR view per screen) simultaneously, per screen can monitoring and playback from multiple DVR images, thorough solve most of the DVR can only manage a single DVR,as well as monitoring and playback can not be a problem at the same time

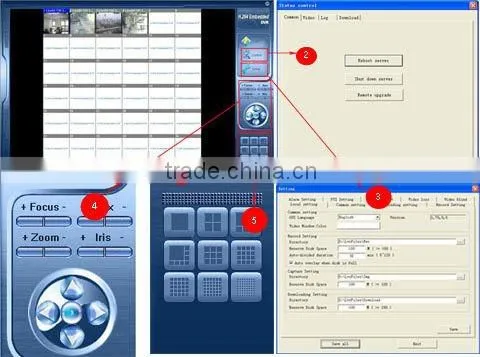

CMS Manager Software

8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S

8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-SLogin
Two logging modes are provided: by IP address and by domain .



8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S




 8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-SControl
COMMON: Reboot server,shutdown server,remote upgrade.
VIDEO:remotely adjust the video frequency, brightness, chromaticity, contrast and saturation degree to the best visual effect
LOG:The user can check the logs in the hard disk on the DVR
DOWNLOAD: remotely download files from the hard disk on the DVR,and save them locally for backup or play.

  8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S Setup

Common setup, coding setup, visual recording setup, alarm setting, cradle head setup, movement monitoring, video loss, and shielding alarm

8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S PTZ Control

ZOOM,FOCUS,IRIS,PANT,TITL,ZOOM

8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S Window browsing mode

switching: single windows, 4 windows, 6 windwos, 8 windows, 9 windows 16 windows,32 windows and 64 windows

8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S Toolbar

Start,pause,Stop,Slow Play,Fast Play Single Frame,Screenshot,Video Recording,Playbak,Volume Control,Total time for file playing.

Software / User's Manual Download

KingCCTV HK-S2104F/S2108F Standalone DVR Manual(1,637KB)

Mobile Manual for KingCCTV HK-S2104F/S2108F Standalone DVR (957KB)

CMS Software for Standalone DVR HK-S2104F/S2108F(1,011KB)

Package



8ch H.264 Realtime Recording Iphone Standalone DVR HK-S2108F-S
