Friction Stay Hinge Stay Opening Top Hinge for UPVC / Aluminium Casement or Top Hung Window Sus304 Stainless Steel Hinge
- SHANGHAI or NINGBO
- T/T Money Gram
You May Like
-
9.05.28033 Two Bar Hinge, Friction Hinge, Window Stay
-
Friction Hinge Friction Stay/Friction Hinge Heavy Duty 2-bar/3-bar/4-bar/5-bar/6-bar Window Hinge Wind Brace 304 Stainless Steel
-
Friction Stay Hinge for UPVC / Aluminium Casement or Top Hung Window
-
304SS Two Bar Safety Window Hinge/ Safety Window Stay PWS PUWEI Security Hinge for Aluminum Wooden PVC Window Friction Hinge
-
PWS PUWEI Transmission Bar Upvc Window and Door Espagnolette Rod/PWS PUWEI Transmission Bar for Casement, Sliding Window & Door
-
9.14.18030 Zinc Alloy Door Lock Without Keys (For PVC or Aluminum Alloy Sliding Doors)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PWS | |
| Model Number | Five-bar friction stay hinge |
100pcs/carton

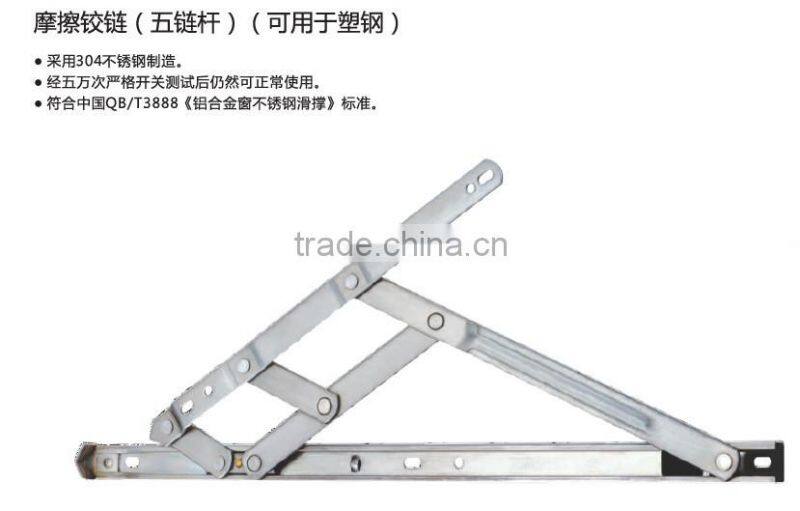

Product Description
There have been many different makes and models of friction stay upvc window hinges but as long as the replacement pair is of the same length, track width and stack height as the originals then they will suit the window to be repaired.
- Handed friction stay
- Designed for consistent reliability and accuracy of closure
- Easy Fit and Fully Adjustable
- Choice of Channel widths and Stack Heights
- Lifetime tested to 30,000 cycles
- Verton end cap for improved strength
- Waterproof lubricant on all pivots ensures smoth action
- length:8,10,12,14,16,18,20,22inches and so on
- bar thickness:2.0,2.5,3.0mm
width:14, 18, 22mm
material:SS202, SS301 OR SS304 OEM welcome
l Adjust the opening angle by the small sliding sheet in the bottom groove to a fixed place.
l Good-quality stainless steel material.
l Regarded regular usage after strictly 50000 times open-and-close test.
l Get to the national standard of QB/T3888 Window-and-Door Sliding hinge.
l Be suitable for U-PVC, Aluminum and Wooden casement windows.
l Material -- Stainless steel 301. But stainless steel 316, 304, 201, 202 are alternative.
l Thickness of the four bars – 2.0-0.2mm, 2.5-0.2mm, and 3.0-0.3 mm.

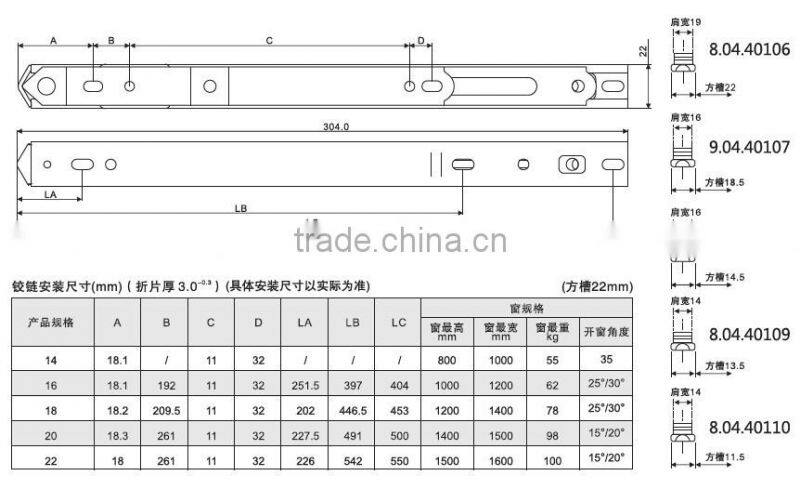

Window Sizes | ||||
Item Sizes | Height Max (mm) | Width Max (mm) | Casement Weight Max (kg) | Casement Angle |
14" | 800 | 1000 | 55 | 35° |
16" | 1000 | 1200 | 62 | 25°/30° |
18" | 1200 | 1400 | 78 | 25°/30° |
20" | 1400 | 1500 | 98 | 25°/30° |
22" | 1500 | 1600 | 100 | 25°/30° |
24" | 1600 | 1800 | 110 | 25°/30° |
