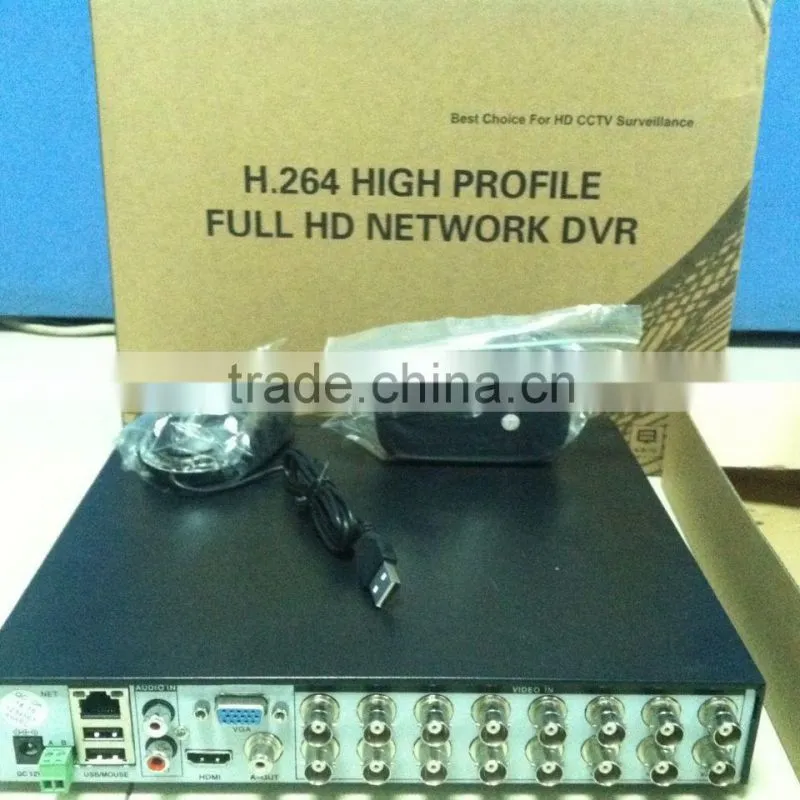

Factory price 16 channel standalone dvr h 264
Specification--16 channel standalone dvr h 264
Specifications
| Model | HK-AHD5104F | HK-AHD5108F | HK-AHD5116F | N/A | |||
| System | Main processor | Hi3515C | Hi3531 | ||||
| Operating system | Embedded LINUX operating system | ||||||
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | ||||||
| Interface | Operation interface | 16 bit real color GUI interface support mouse operation | |||||
| Display screen | Take all analog input as an example, others are depended on the selected channel mode | ||||||
| 1/4 screen | 1/4/8/9 screen | 1/4/8/9/16 screen | 1/4/8/9/16/24 screen | ||||
| Video | Video standard | PAL (625 lines, 50fps); NTSC (525lines, 60fps) | |||||
| Image encode | H.264(High Profile) | ||||||
| Monitor quality | Monitor: D1; VGA: High Definition; HDMI: High definition | ||||||
| Playback quality | Max support 1080P under HVR and NVR mode Max 720P Under local analog input mode: |
||||||
| 720P*4 | 720P*8 | 720P*16 | |||||
| Encode capability | 4*720P | 8*720P | 16*720P | 24*720P | |||
| Decode capability | 4*720P | 8*720P | 16*720P | 24*720P | |||
| Multi-mode video input | Local analog input: | ||||||
| 720P*4/AHD-L*4 | 720P*8/AHD-M*8 | 720P*16/AHD-M*16 | 720P*24/AHD-M*24 | ||||
| Local analog + network digital input: 720P(AHD)*4+720P(IP)*4 | |||||||
| All network digital input: 720P*8+1080P*1/1080P*4/960H*20 | |||||||
| Motion detection | Each channel can set 192 (16*12)detection area; can set multi-level of flexibility (for local analog channel only) | ||||||
| Audio | Audio compression | G.711A | |||||
| Bidirectional talk | support | ||||||
| Record and playback | Record mode | manual>alarm>motion detection>timing | |||||
| Local playback | 720P*4 | 720P*8 | 720P*16 | ||||
| Video search | Time,date,event,channel search | ||||||
| Storage and back up | Space occupation | Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; 960H 12G~20G/Day*CH audio:691.2M/day*channel |
|||||
| Video storage | Local HDD ,Network | ||||||
| Back up mode | Network backup,USB portable HDD,USB DVD/RW,SATA DVD/RW | ||||||
| Interface | Video input | 4ch BNC | 8ch BNC | 16ch BNC | 32ch BNC | ||
Video output |
1ch BNC,1ch VGA,1ch HDMI | ||||||
| Video Loop out | Not Support | ||||||
| Audio input | 1ch RCA(200-2800mV,30KΩ) | 4ch RCA(200-2800mV,30KΩ) | |||||
| Audio output | 1ch RCA(200-3000mV,5KΩ) | ||||||
| Alarm input | N/A(4chs Optional) | ||||||
| Alarm output | N/A(1ch Optional) | ||||||
| Network interface | RJ45 10M/100M self-adaptive Ethernet port | ||||||
| PTZ control | 1 RS485; support multi kinds of PTZ protocol | ||||||
| USB port | 2*USB2.0 | ||||||
| HDD port | 1 SATA port (1*4T) | 2 SATA port (2*4T) | |||||
| Wireless port | N/A | 3G,WIFI(extension via USB port) | |||||
| Other | Power | 12V/3A | |||||
| Consumption | less than 5W(not include H.D.D.) | ||||||
| Working Temperature | 0℃-+55℃ | ||||||
| Working Humidity | 10% ~ 90% | ||||||
| Dimension(mm) | L233 * W300 * H45 | ||||||
| Package |
5 sets/Carton(457*455*308) |
||||||
| Weight | 1.46KG | ||||||
Features--16 channel standalone dvr h 264
Feature
- 4/8/16/24ch AHD (Analog High-Definition) video & 4ch IP camera inputs
- Adopt 75-3 (or more) coaxial, transmission distance up to 500 meters; Low-cost, long distance, without delay, high efficiency, noise immunity and easy installation.
- Easily upgrading the old analog systems to the Mega high-definition system without changing the installed coax cables and equipment
- Support analog video, Analog HD video, network HD video input
- AHD: 4ch@AHD_L,8/16/24ch@AHD-M
- IPC: Max 50fps@1080p, 100fps@720p, 200fps@960H
- HDMI output up to 1080p, VGA
- alarm in & relay out Optional, RS485
- 4/8/16ch sync real time playback
- 1/2 SATA, 2 USB, 1 RJ45(1000M)
- Support Multi-language: English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc
- Support multi-browser: IE, Chrome, Firefox, Safari
- support 3G & WIFI extension
- support P2P,cloud service
Considerate Service--16 channel standalone dvr h 264
OEM and ODM are both acceptable
Sample order is acceptable
Payment terms: Paypal, T/T, Western Union
Warranty: 2 YEARS
Certification: CE, FCC, RoHS
Lead time: 3-25 days since purchasing date
Note: In case of not stock, you can do 30% as deposit, and pay 70% when ready.
Adantage--16 channel standalone dvr h 264
1.Our product line includes CCTV Camera, IP Camera, PTZ Camera, Network Camera, AHD Camera, NVR, DVR and all kinds of accessories.
2. All of our products are factory direct selling. With our own factory, we strictly monitor the price and quality in order to meet customers's requirements.
3. We have accomplished the following big projects:
- CCTV Surveillance for Greece National Park
- CCTV Surveillance for Jewish Historical Museum Amsterdam
- CCTV Surveillance for Barranquilla Harbour in Colombia
- CCTV Surveillance for Shell in Japan
16 channel standalone dvr h 264
Shenzhen KingCCTV Technology Co., Ltd. is a high technology enterprise, engaged in software & hardware development, manufacturing and sales for security & safe products.
Our factory is in Yindafeng Industry Park of Longgang District of Shenzhen. As our business extended, in order to provide more products and better service, we established a Greece Branch on January of 2008, and established a USA Branch in Senoia GA on October of 2012. We mainly sell, develop and manufacture DVR, HDVR, NVR, CCTV Camera, IP Camera, PTZ camera, etc.
Due to the hard work of all staffs in KingCCTV, and the continuous supports from our extensive customers, we have already achieved outstanding accomplishments in the past years. Here we deeply appreciate that it's only the customer's success which makes KingCCTV successful. So we would like to cooperate with you in the long run and create a brilliant future for all of us.
Welcome to vist our factory anytime you like
16 channel standalone dvr h 264
Shenzhen KingCCTV Technology Co.,Ltd
Overseas Marketing Sales
Edison Tang
Mail: sales6(at)
Skype:kingcctv-sales6
Whatsapp:18320821085
WeChat:281481464
Welcome to inquiry
16 channel standalone dvr h 264
(1)What is your MOQ?
Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.
(2)How about delivery time?
Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.
(3)Payment terms?
Edison: We accept T/T, Paypal, Western Union payment.
(4)Can I be your exclusive representative?
Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.
(5)How about warranty?
Edison: All of our products are of 2 YEAR warranty.
(6)Can you do OEM/ODM?
Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.
16 channel standalone dvr h 264
