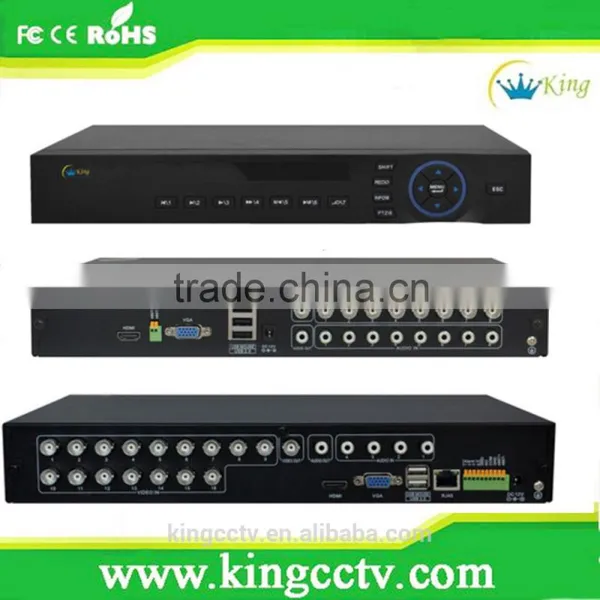

2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR

2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR thumbnail-1
2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR thumbnail-2
2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR thumbnail-3
2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR thumbnail-4
2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR photo-1
2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR photo-2
2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR photo-3
2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR photo-4
US$ 152 - 180 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HK
Model Number:
HK-H5004F, HK-H5008F, HK-H5016F
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HK
Model Number HK-H5004F, HK-H5008F, HK-H5016F
2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR
 2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR


Product Description

W What is the Specifications of our products?

Feature

  1. 4/8/16ch Effio 960H video & 4ch IP camera inputs
  2. 4ch audio in &1ch audio out
  3. Effio: 4/8ch@960H,16ch@CIF
  4. IPC: Max 50fps@1080p, 100fps@720p, 200fps@960H
  5. HDMI output up to 1080p, VGA
  6. alarm in & relay out Optional, RS485
  7. 4/8/16ch sync realtime playback
  8. 2 SATA, 2 USB, 1RJ45(1000M)
  9. Multi-language Support(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
  10. Support multi-browser(IE, Chrome, Firefox, Safari)
  11. support 3G & WIFI extension
  12. support P2P,cloud service

Specifications

Model No. HK-H5004F HK-H5008F HK-H5016F
Main Processor Hi3520D
Operating System Embedded Linux
System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Operation interface 16 bit real color GUI interface support mouse operation
Display screen 1/4 1/4/8/9 1/4/8/9/16
Video standard PAL(625 lines, 50fps); NTSC(525lines, 60fps)
Image encode H.264(High Profile)
Monitor quality Monitor: D1; VGA: High Definition; HDMI: High definition
Playback quality 960H/D1/HD1/CIF/QCIF 960H/D1/CIF/QCIF D1/HD1/CIF/QCIF
Encode capability 4ch D1/960H real-time 8ch 960H/D1 real-time 2ch D1+14ch CIF real-time
Decode capability 4ch D1/960H real-time 4ch 960H/D1 real-time 2ch D1+14ch CIF real-time
Multi-mode video input Local analog: 4*D1/4 *960H Local analog: 8*D1/8 *960H Local analog: 16*D1
Local analog + network digital input: 2 *D1+(1*1080P+1*720P)
8*960H/4*720P/2*1080P/1*720P+7*D1/1*1080P+1*720P+2*D1
Motion detection Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio compression G711A
Bidirectional talk support
Record mode manual>alarm>motion detection>timing
Local playback Under the local mode : 4*960H,Max support 4ch playback(4*960H @25fps) Under the local mode: 8*D1, Max support 4ch playback(1* D1@25fps) Under the local mode: 2*D1+14*CIF, Max support 8ch playback(2*D1+6*CIF @25fps)
Video search Time, date, event, channel search
Space occupation Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; audio:691.2M/day*channel
Video storage Local HDD, Network
Back up mode Network backup, USB portable HDD, USB DVD/RW, SATA DVD/RW
Video input 4ch BNC 8ch BNC 16ch BNC
Video output 1ch BNC,1ch VGA,1ch HDMI
Video Loop out Not support
Audio input 4ch RCA(200-2800mV,30KΩ) 2ch RCA
Audio output 1ch RCA(200-3000mV,5KΩ)
Alarm input N/A(4chs Optional)
Alarm output N/A(1ch Optional)
Network interface RJ45 10M/100M self-adaptive Ethernet port
PTZ control 1 RS485; support multi kinds of PTZ protocol
USB port 2 * USB2.0
HDD port 1 SATA port(1*4T) 2 SATA port(2*4T)
Wireless port 3G, WIFI(extension via USB port)
Power 12V/3A
Consumption less than 5W(not include H.D.D.)
Working Temperature 0℃ ~ +55℃
Working Humidity 10%~90%
Dimension L233*W300*H45
Weight 1.46KG



W What is the Applications of our products?

2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR



Packaging & Shipping



P Packaging &Shipping,Trade Terms

 2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR



Our Services



W Why choosing us?



1. More professional, better quality.

We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.



2. OEM/ ODM service available.

  Any your idea on camera we can help you to design and put in solution.

3.Strong Tech support.

* Presale: product consultation and solution design can be provided.

* After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.

* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..



3. Strict Quality Control :

All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.

with CE, ROHS, FCC approval.



Company Information



A ABOUT US

2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR

O Our Certifications

2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR

O Our Exhibitions & Customers visiting

2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR

 F FEEDBACK

2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR



C Customers from All over the World



2016 Top 10 H.264 4/8/16CH Effio 960H & IP 1U Hybrid DVR



FAQ



F FAQ



Q1. Can I get samples?

A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment.



Q2. Are you factory?

A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.

Q3. How about warranty period? If any problem, can I get enough support?

A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.



Q4. Why the shipping cost is so much? How about delivery time?

A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.



Q5. Can I become your sole distributor in my place?

A6. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.



Q6. Can you give us enough brochures and ideas as promotion to our customers?

A6. Yes, we’d love to help you promote your business. Welcome to share your idea of your market status and we will give you valuable advice and detailed information you need.



Q7. Can you make OEM products for us?

Q8. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
