H.264 Dahua Cctv Camera Eco-savvy Series 1.3 Megapixels hd Network Outdoor ip Camera IPC-HDBW4120E

H.264 Dahua Cctv Camera Eco-savvy Series 1.3 Megapixels hd Network Outdoor ip Camera IPC-HDBW4120E thumbnail-1
H.264 Dahua Cctv Camera Eco-savvy Series 1.3 Megapixels hd Network Outdoor ip Camera IPC-HDBW4120E photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dahua
Model Number:
IPC-HDBW4120E
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Dahua
Model Number IPC-HDBW4120E
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology NetWork
Special Features Waterproof / Weatherproof



h.264 Dahua cctv camera 1.3mp hd network small eyeball outdoor ip camera IPC-HDW1120S

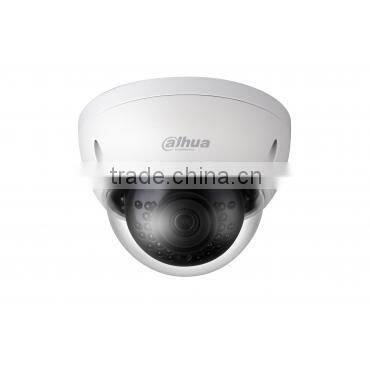

h.264 Dahua cctv camera Eco-savvy Series 1.3 Megapixels hd network outdoor ip camera IPC-HDBW4120E





>1/3” 1.3Megapixel progressive scan CMOS
>H.264&MJPEG triple-stream encoding
>25/30fps/1.3Mp(1280×960)
>DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm, 6mm optional)
>Max. IR LEDs Length 30m
>IP67, IK10, PoE







Model IPC-HDBW4120E
Camera
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0. 01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (2.8mm, 6mm optional)
Max Aperture F2.0(F1.8/F1.8)
Focus Control Manual
Angle of View H:73.5°/86°/47°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/H.264B/H.264H/ MJPEG
Resolution 1.3MP(1280×960) / 720P(1280×720) / D1(704×576/704×480) /
CIF(352×288/352×240)
Frame Rate Main Stream 1.3MP/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P(1-14/7fps)
Bit Rate H.264: 32Kbps ~ 10Mbps
Corridor Mode Support
Audio
Compression N/A
Interface N/A
Smart Function
Smart detection Tripwire
Intrusion
Scene change
Face detect
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot N/A
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption <4W
Working Environment -40°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

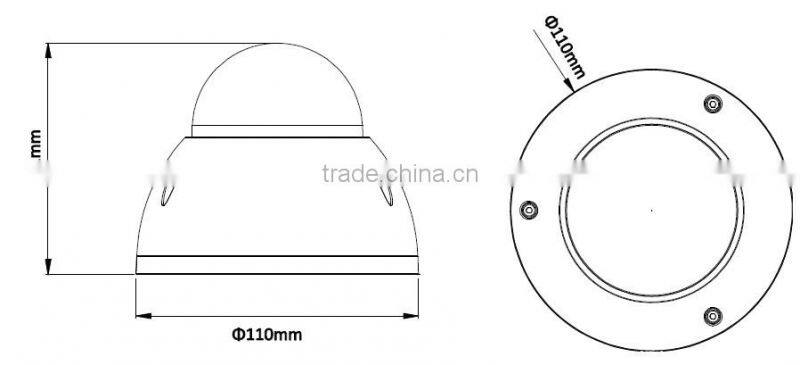

Dimensions Φ110mm×81mm
Weight 0.33kg(with package 0.47kg)









Application



 h.264 Dahua cctv camera Eco-savvy Series 1.3 Megapixels hd network outdoor ip camera IPC-HDBW4120E

h.264 Dahua cctv camera Eco-savvy Series 1.3 Megapixels hd network outdoor ip camera IPC-HDBW4120Eh.264 Dahua cctv camera Eco-savvy Series 1.3 Megapixels hd network outdoor ip camera IPC-HDBW4120Eh.264 Dahua cctv camera Eco-savvy Series 1.3 Megapixels hd network outdoor ip camera IPC-HDBW4120E
