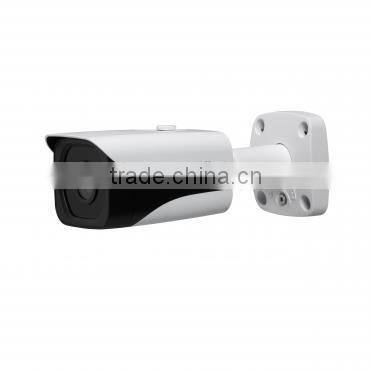

4K Ultra HD Eco-savvy Series water-proof Network small IR-Bullet Camera
IPC-HFW4800E
Product Feature:
-
>1/2.3” 4K progressive scan CMOS
>H.264 &MJPEG dual-stream encoding
>Max 7fps@4K(3840×2160)
>DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>4mm fixed lens
>Max. IR LEDs Length 30m
>IP66, PoE
Specification:
| Model | DH-IPC-HFW4800E | |
| Camera | ||
| Image Sensor | 1/2.3” 4K progressive scan CMOS | |
| Effective Pixels | 3840(H)x2160(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/10000s | |
| Min. Illumination | 0.1Lux/F1.6 (Color), 0Lux/F1.6(IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 30m | |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 4mm | |
| Max Aperture | F1.6 | |
| Focus Control | Manual | |
| Angle of View | H:80° | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264/ MJPEG | |
| Resolution | 4K(3840×2160)3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) / CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 4K(1~7fps)/3M/1080P/ (1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 20K ~ 16Mbps | |
| Audio | ||
| Compression | N/A | |
| Interface | N/A | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| Compatibility | ONVIF,PSIA,CGI | |
| Max. User Access | 20users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | N/A | |
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE (802.3af) | |
| Power Consumption | <7.5W | |
| Working Environment | -30°C~+60°C, Less than 95% RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | N/A | |

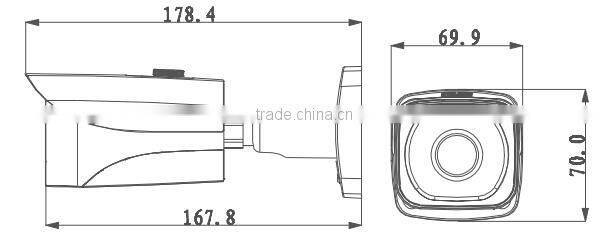

| Dimensions | 168.1mm×66mm×58.4mm Now: 178.4mm×70mm×69.9mm |
|
| Weight | 528g(683.4g with packaging) | |
