Dahua DVR5116C H.264 Dual Stream 16CH Smart 1u Home-use DVR

Dahua DVR5116C H.264 Dual Stream 16CH Smart 1u Home-use DVR thumbnail-1
Dahua DVR5116C H.264 Dual Stream 16CH Smart 1u Home-use DVR photo-1
US$ 130 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
DVR5116C
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dahua
Model Number DVR5116C

Dahua DVR5116C H.264 Dual Stream 16CH

Smart 1u Home-use DVR



Dahua DVR5116C H.264 Dual Stream 16CH Smart 1u Home-use DVR



Product Description

  Smart 1u Home-use DVR





Specification-- Smart 1u Home-use DVR



Model DH-DVR5104C-V2 DH-DVR5108C DH-DVR5116C
System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel, BNC 8 channel, BNC 16 channel, BNC
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input 1 channel, RCA N/A N/A
Output 1 channel, RCA N/A N/A
Two-way Talk Reuse audio input/output channel 1 N/A N/A
Display
Interface 1HDMI, 1 VGA, 1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4 1/4/8/9 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video Compression H.264
Resolution 960H/D1/4CIF(704×576/704×480)/2CIF(704×288/704×240)/CIF(352×288/352×240)/ QCIF(176×144/176×120)
Record Rate Main Stream: 960H/D1/HD1/2CFI/CIF(1~25/30fps)
Extra Stream QCIF(1-25/30fps)/CIF(1-6/7fps)
Bit Rate 48~3072Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events Recording, Tour, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4 1/4/9 1/4/9/16
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet RJ-45 port (10/100M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB Interface 2 ports (1 Rear), USB2.0
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H) 205mm×205mm 270mm×205mm×40mm
Weight 0.5KG 0.75KG





Features-- Smart 1u Home-use DVR

>Up to 4/8/16 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>DVR5104C-V2/5108C/5116C: All channel 960H realtime recording
>HDMI/VGA/TV simultaneous video output
>4 channel synchronous realtime playback, GRID interface & smart search
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>DVR5104C-V2 support 1channel audio

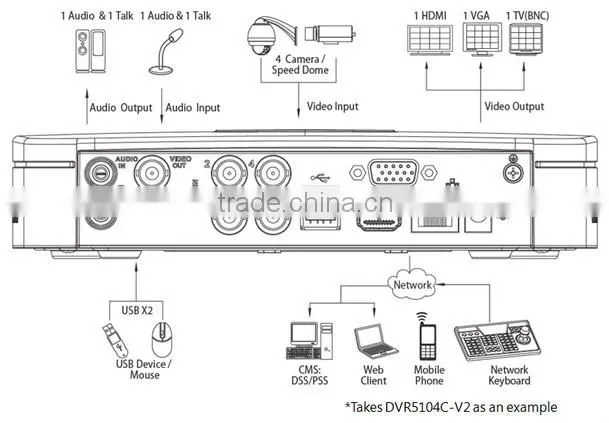

Real shot of Smart 1u Home-use DVR



Dahua DVR5116C H.264 Dual Stream 16CH Smart 1u Home-use DVR



Dahua DVR5116C H.264 Dual Stream 16CH Smart 1u Home-use DVR







Our Services

Considerate Service-- Smart 1u Home-use DVR


OEM and ODM are both acceptable

Sample order is acceptable

Payment terms: Paypal, T/T, Western Union

Warranty: 2 YEARS

Certification: CE, FCC, RoHS

Lead time: 3-25 days since purchasing date





Adantage-- Smart 1u Home-use DVR


1.Our product line includes CCTV Camera, IP Camera, PTZ Camera, Network Camera, AHD Camera, NVR, DVR and all kinds of accessories.

2. All of our products are factory direct selling. With our own factory, we strictly monitor the price and quality in order to meet customers's requirements.

3. We have accomplished the following big projects:

  • CCTV Surveillance for Greece National Park
  • CCTV Surveillance for Jewish Historical Museum Amsterdam
  • CCTV Surveillance for Barranquilla Harbour in Colombia
  • CCTV Surveillance for Shell in Japan



Company Information

    Smart 1u Home-use DVR


        Shenzhen KingCCTV Technology Co., Ltd. is a high technology enterprise, engaged in software & hardware development, manufacturing and sales for security & safe products.

        Our factory is in Yindafeng Industry Park of Longgang District of Shenzhen. As our business extended, in order to provide more products and better service, we established a Greece Branch on January of 2008, and established a USA Branch in Senoia GA on October of 2012. We mainly sell, develop and manufacture DVR, HDVR, NVR, CCTV Camera, IP Camera, PTZ camera, etc.

        Due to the hard work of all staffs in KingCCTV, and the continuous supports from our extensive customers, we have already achieved outstanding accomplishments in the past years. Here we deeply appreciate that it's only the customer's success which makes KingCCTV successful. So we would like to cooperate with you in the long run and create a brilliant future for all of us.



Dahua DVR5116C H.264 Dual Stream 16CH Smart 1u Home-use DVR





Welcome to vist our factory anytime you like





Contact

  Smart 1u Home-use DVR




Shenzhen KingCCTV Technology Co.,Ltd

Overseas Marketing Sales

Edison Tang

Mail: sales6(at)

Skype:kingcctv-sales6

Whatsapp:18320821085

WeChat:281481464





Welcome to inquiry



FAQ

Smart 1u Home-use DVR

(1)What is your MOQ?

Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.

(2)How about delivery time?

Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.

(3)Payment terms?

Edison: We accept T/T, Paypal, Western Union payment.

(4)Can I be your exclusive representative?

Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.

(5)How about warranty?

Edison: All of our products are of 2 YEAR warranty.

(6)Can you do OEM/ODM?

Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.



Dahua DVR5116C H.264 Dual Stream 16CH Smart 1u Home-use DVR
