Specifications

Product Description

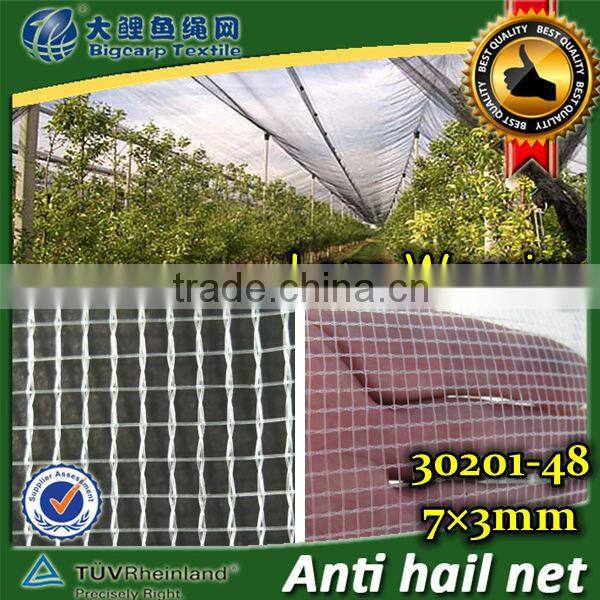

Leno-weaving anti-hail Net:

 Leno-weaving hail netting is strong, tough, long-lasting. Equipped with strong lateral and central selvedges, leno-weaving hail netting is particularly suitable for laying on long rows.

Its transparent color allows the crop to receive a low level of shade.

• Produced with 100% Pure HDPE virgin material
• UV stabilized and Anti-oxidant (OX) - Long life
• Leno/Gauze weave,
• Help reduce hail damage and increase crop yields
• Transparent , 48 g/m2 ,

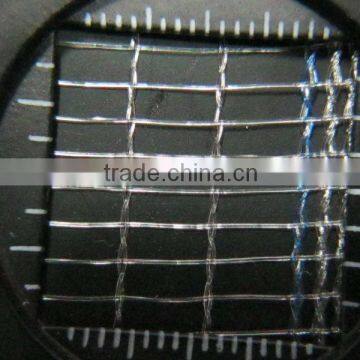

• Mesh size: 7x3 mm;
• Strong lateral and central selvedges for long lasting
• Use continuously 5-10 years

The anti-hail nets are made with Leno/Gauze weave and offer excellent hail protection. The nets are produced using high-density polyethylene monofilament (HDPE) that is UV stabilised and contains anti-oxidant (OX) additives. The Leno weave gives the net extra strength, while the lateral selvedges and the central area of the netting are reinforced by an increase in the yarn threads in order to permit a strong and secure netting installation.
These anti-hail nets are available in several mesh sizes and in crystal transparent (natural white), black and green colours.

STANDARD ROLL SIZES (MONOFOLDED ROLLS):
Widths from 0.25 mt up to 5.20 mt and lengths from 100 mt to 500 ml (as per client request).

CUSTOM SEWN ROLLS:
Widths from 5.20 mt up to 10.50 mt and lengths from 100 to 300 ml (as per client request)

The anti hail net is recyclable and environment friendly.

Material:  100% Pure Virgin HDPE Mono. with UV Stabilized & Igranox

U.V. Warranty:

5 years pro rata warranty against product failure due to Ultra violet degradation

PROPERTIES

Polymer HIGH DENSITY POLYETHYLENE

Tensile st rength: 0.20 - 0.40 N/mm²

Notched Impact St rength: no break Kj /m²

Max Cont Use Temp: 100 - 220 x 10-6

Density: 0.944 - 0.965 g/ cm3

The HDPE LENO anti-hail net must resist a load of 18 kg/cm2 and also must resist an impact of a hailstone up to 20mm of diameter at a speed of 40 m/second.

Feature:
- Reinforced margin edges eliminate yarn displacement
- Wovened in ultramodern plants with high quality CIBA U.V. stabilizers
- Strong, durable lockstitch technology that resist tearing, fraying, stretching, and sagging
- The nets will not unravel or ladder even when punctured

- Light weight for easy handling and positioning

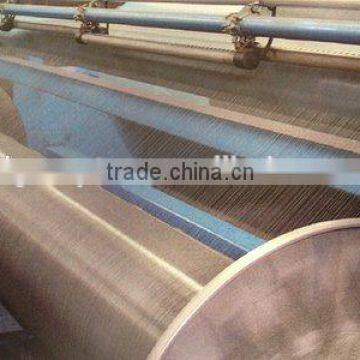

Machine – SULZER RUTI

l  The knowledge of Woven net

u  Plain

A plain weave is the most simple and most commonly used weave pattern. In this type of weave, the warp and filling threads cross alternately. Plain woven fabrics are generally the least pliable, but they are also the most stable.

u  Leno

The leno weave is a locking type weave in which two or more warp threads cross over each other and interlace with one or more filling threads. It is used primarily to prevent shifting of fibers in open weave fabrics.

u  Satin Weave

In a satin weave, the face of the fabric consists almost completely of warp or filling floats produced in the repeat of the weave, which causes one side of the fabric to look different than the other side. There is one filling thread which floats over three or more warp threads, then under one. This is the most drapeable of weave patterns and conforms very easily around most contoured surfaces. Most satin weaves are either four, five, eight, or twelve harness satins and are typically utilized in the composites industry.

u  Twill

A twill weave is a basic weave characterized by a diagonal rib, or twill line. Each end floats over at least two or more consecutive picks enabling a greater number of yarns per unit area than a plain weave, while not losing a great deal of fabric stability. This type of fabric looks different on one side than on the other.

u  Basket Weave

The basket weave is a variation of the plain weave in which two or more warp yarns cross alternately with two or more filling yarns, resembling a plaited basket. This weave is more pliable and stronger than a plain weave, but is looser and therefore, not as stable. The basket weave is typically used in the composites industry.

•  Product Specification:

We provide full range specification of LENO Weaving Hail protection nettings:

   CLICK HERE to read our comprehensive guide on 'Leno Weaving Hail Netting'.

• We promise: 100% pure virgin HDPE, No recycle

• Our Suppliers:

To keep the high quality of our product, our raw material is purchased from world famous chemical company.

• After Sales Service:

We promise if there is anything wrong with our product and it is our responsibility, we would accept the rquest of returning the goods and refund back to the clients.

Because we are cofident with the quality of our product and the competitive price.
