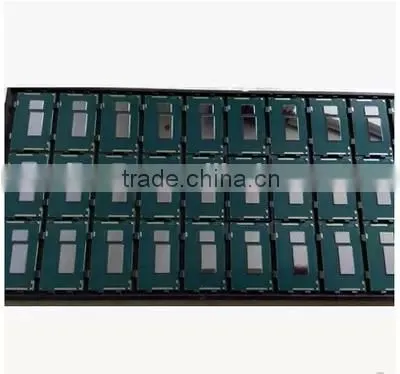

Intel Core I7-5500U Mobile CPU FH8065801620004 SR23W Broadwell i7 Processor

Shenzhen Shines Technology Co., Ltd.
Intel Core I7-5500U Mobile CPU FH8065801620004 SR23W Broadwell i7 Processor thumbnail-1
Intel Core I7-5500U Mobile CPU FH8065801620004 SR23W Broadwell i7 Processor photo-1
US$ 210 - 215 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock, Stock
Application:
Other, Laptop, Laptop
Processor Brand:
Other, Intel, Intel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock, Stock
Application Other, Laptop, Laptop
Processor Brand Other, Intel, Intel
Type Other, Dual-Core, Dual-Core
Processor Type Other, Intel Core, Intel Core
L2 Cache Other, 4MB, 4MB
Socket Type Other, BGA1168
Main Frequency 2.4GHz, 2.4 GHz
Brand Name intel
Model Number SR23W
Place of Origin Guangdong, China

Intel Core i7-5500U Mobile CPU FH8065801620004 SR23W Broadwell i7 processor

Intel Core i7-5500U specifications

General information
TypeCPU / Microprocessor
Market segmentMobile
Family

Intel Core i7 Mobile
Model number  ?

i7-5500U
CPU part number

  • FH8065801620004 is an OEM/tray microprocessor
Frequency  ? 2400 MHz
Turbo frequency3000 MHz (1 core)
2900 MHz (2 cores)
Bus speed  ? 5 GT/s DMI
Clock multiplier  ? 24
Package1168-ball micro-FCBGA
SocketBGA1168
Size1.57" x 0.94" / 4cm x 2.4cm
Introduction dateJanuary 5, 2015
Price at introduction$393
S-spec numbers
 Production processors
Part numberSR23W
FH8065801620004+
Architecture / Microarchitecture
MicroarchitectureBroadwell
Processor core  ? Broadwell
Core stepping  ? F0 (SR23W)
Manufacturing process0.014 micron
1.38 billion transistors
Die size82mm2
Data width64 bit
The number of cores2
The number of threads4
Floating Point UnitIntegrated
Level 1 cache size  ? 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size  ? 2 x 256 KB 8-way set associative caches
Level 3 cache size4 MB 16-way set associative shared cache
Physical memory16 GB
MultiprocessingNot supported
Features
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • AVX2 / Advanced Vector Extensions 2.0
  • BMI / BMI1 + BMI2 / Bit Manipulation instructions
  • F16C / 16-bit Floating-Point conversion instructions
  • FMA3 / 3-operand Fused Multiply-Add instructions
  • EM64T / Extended Memory 64 technology / Intel 64  ?
  • NX / XD / Execute disable bit  ?
  • HT / Hyper-Threading technology  ?
  • VT-x / Virtualization technology  ?
  • VT-d / Virtualization for directed I/O
  • TBT 2.0 / Turbo Boost technology 2.0  ?
Low power featuresEnhanced SpeedStep technology  ?
Integrated peripherals / components
Integrated graphicsGPU Type: Intel HD 5500
Base frequency (MHz): 300
Maximum frequency (MHz): 950
The number of supported displays: 3
Memory controllerThe number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, LPDDR3-1333, LPDDR3-1600
Maximum memory bandwidth (GB/s): 25.6
Other peripherals
  • Direct Media Interface 2.0
  • PCI Express 2.0 interface (12 lanes)
Electrical / Thermal parameters
Maximum operating temperature  ? 105°C
Thermal Design Power  ? 15 Watt
Notes on Intel Core i7-5500U
  • Configurable TDP-down feature is supported. In TDP-down mode the CPU operates at 600 MHz, and has 7.5 Watt TDP
  • The processor has the following security, data protection and/or software features: Intel Secure Key, Identity Protection technology, OS Guard and Smart Response technology.
  • The CPU is compatible with DirectX 11.2, OpenGL 4.3 and OpenCL 2.0 APIs.
  • The graphics unit has the following software features enabled: Intel Wireless Display, Quick Sync Video, Clear Video HD technology, InTru 3D technology and Insider.

CPU ID information for the Core i7-5500U

Search or browse all public submissions in our CPUID database.

Use our CPU identification tool to check features of your processor.

NOTE: The CPU ID information below was taken from one chip and may include features that are not present in all different steppings of the Intel Core i7 Mobile i7-5500U microprocessor.



Manufacturer:IntelMeasured frequency:2394 MHz
CPU Family:Core i7 MobileComment:
Processor Number:i7-5500U
Part number (supplied): Submitted by:
Part number (guessed):
FH8065801620004
Submitted on:
S-Spec Number: CWID version:0.5
General information
Vendor:GenuineIntel
Processor name (BIOS):Intel(R) Core(TM) i7-5500U CPU @ 2.40GHz
Cores:2
Logical processors:4
Processor type:Original OEM Processor
CPUID signature:306D4
Family:6 (06h)
Model:61 (03Dh)
Stepping:4 (04h)
TLB/Cache details:64-byte Prefetching
Data TLB: 1-GB pages, 4-way set associative, 4 entries
Data TLB: 4-KB Pages, 4-way set associative, 64 entries
Instruction TLB: 4-KByte pages, 8-way set associative, 64 entries
L2 TLB: 1-MB, 4-way set associative, 64-byte line size
Shared 2nd-Level TLB: 4-KB / 2-MB pages, 6-way associative, 1536 entries. Plus, 1-GB pages, 4-way, 16 entries

Cache:L1 dataL1 instructionL2L3
Size:2 x 32 KB2 x 32 KB2 x 256 KB4 MB
Associativity:8-way set
associative		8-way set
associative		8-way set
associative		16-way set
associative
Line size:64 bytes64 bytes64 bytes64 bytes
Comments:Direct-mappedDirect-mappedNon-inclusive
Direct-mapped		Inclusive
Shared between all cores

Instruction set extensionsAdditional instructions
MMXADCX/ADOX instructions
SSEAdvanced Bit manipulation
SSE2CLFLUSH
SSE3CMOV
SSSE3CMPXCHG16B
SSE4.1CMPXCHG8B
SSE4.2Enhanced REP MOVSB/STOSB
AESFXSAVE/FXRSTORE
AVXINVPCID
AVX2MONITOR/MWAIT
BMI1MOVBE
BMI2PCLMULDQ
F16CPOPCNT
FMAPREFETCH/PREFETCHW
 RD/WR FSGSBASE instructions
 RDRAND
 RDSEED
 RDTSCP
 SYSENTER/SYSEXIT
 XSAVE/XRESTORE states
 XSETBV/XGETBV are enabled

CPUs, related to Intel Core i7-5500U

The list of related CPUs does not include all models. For the complete list, please see the related "Broadwell" processors for socket BGA1168 page.

ModelCores /
Threads		FrequencyTurbo
frequency		L3
cache		TDPFeaturesPrice
Intel Core i7 Mobile family, BGA1168
   Core i7-4550U2 / 41.5 GHz3 GHz4 MB15WAES, AVX, HT, TBT >
   Core i7-4610Y2 / 41.7 GHz2.9 GHz4 MB11.5WAES, AVX, HT, TXT, TBT >
   Core i7-4500U2 / 41.8 GHz3 GHz4 MB15WAES, AVX, HT, TBT >
   Core i7-5550U2 / 42 GHz3 GHz4 MB15WAES, AVX, HT, TBT$426>
   Core i7-4650U2 / 41.7 GHz3.3 GHz4 MB15WAES, AVX, HT, TXT, TBT >
   Core i7-4510U2 / 42 GHz3.1 GHz4 MB15WAES, AVX, HT, TBT$393>
   Core i7-5500U2 / 42.4 GHz3 GHz4 MB15WAES, AVX, HT, TBT$393
   Core i7-4600U2 / 42.1 GHz3.3 GHz4 MB15WAES, AVX, HT, TXT, TBT >
   Core i7-5650U2 / 42.2 GHz3.2 GHz4 MB15WAES, AVX, HT, TXT, TBT$426>
   Core i7-5600U2 / 42.6 GHz3.2 GHz4 MB15WAES, AVX, HT, TXT, TBT$393>
   Core i7-4558U2 / 42.8 GHz3.3 GHz4 MB28WAES, AVX, HT, TBT >
   Core i7-4578U2 / 43 GHz3.5 GHz4 MB28WAES, AVX, HT, TBT$426>
   Core i7-5557U2 / 43.1 GHz3.4 GHz4 MB28WAES, AVX, HT, TBT$426>
Intel Core i7 Mobile family, Broadwell micro-architecture, Other sockets
   Core i7-5750HQ4 / 82.5 GHz3.4 GHz6 MB47WAES, AVX, HT, TBT$434>
   Core i7-5700HQ4 / 82.7 GHz3.5 GHz6 MB47WAES, AVX, HT, TBT$378>
   Core i7-5850HQ4 / 82.7 GHz3.6 GHz6 MB47WAES, AVX, HT, TBT$434>
   Core i7-5950HQ4 / 82.9 GHz3.7 GHz6 MB47WAES, AVX, HT, TBT >
Other families, Broadwell micro-architecture, BGA1168
   Celeron 3755U2 / 21.7 GHz 2 MB15WAES, AVX, HT, TBT$107>
   Celeron 3765U2 / 21.9 GHz 2 MB15WAES, AVX, HT, TBT$107>
   Pentium 3805U2 / 21.9 GHz 2 MB15WAES, AVX, HT, TBT$161>
   Pentium 3825U2 / 41.9 GHz 2 MB15WAES, AVX, HT, TBT$161>
   Core i3-5157U2 / 42.5 GHz 3 MB28WAES, AVX, HT, TBT$315>
   Core i5-5257U2 / 42.7 GHz3.1 GHz3 MB28WAES, AVX, HT, TBT$315>
   Core i5-5287U2 / 42.9 GHz3.3 GHz3 MB28WAES, AVX, HT, TBT$315>
 • Within each category, the CPUs are sorted from slower (at the top) to faster (at the bottom)
 • Background color of specs and features indicate whether they are better or worse than similar spec/feature of the Core i7-5500U
 • Click on the >  icon to compare any CPU in the table with the Intel Core i7-5500U (Javascript required).
 • The 'Price' column shows official Intel prices as of Sep 1, 2015. Prices for obsolete and tray-only processors are not provided.
 • Features abbreviations:
AES - AES instructions
AVX - AVX instructions
HT - Hyper-Threading
TXT - Trusted Execution
TBT - Dynamic Acceleration / Turbo Boost
