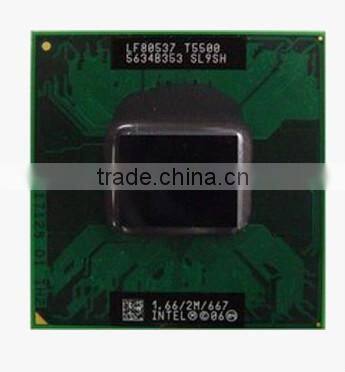

Notebook CPU T5500 1.66/2 m / 667 SL9U4 SL9SH Original Official PGA PM945 Motherboard

Shenzhen Shines Technology Co., Ltd.
Notebook CPU T5500 1.66/2 m / 667 SL9U4 SL9SH Original Official PGA PM945 Motherboard thumbnail-1
Notebook CPU T5500 1.66/2 m / 667 SL9U4 SL9SH Original Official PGA PM945 Motherboard photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Used
Application:
Laptop
Processor Brand:
Intel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Used
Application Laptop
Processor Brand Intel
Type Quad-Core
Processor Type Other
L2 Cache 2MB
Socket Type Socket 478
Main Frequency 1.6GHz
Brand Name Intel
Model Number T5500
Place of Origin China

Notebook CPU T5500 1.66/2 m / 667 SL9U4 SL9SH original official PGA PM945 motherboard

One year warranty, if you have any question can definitely guarantee baotuibaohuan



Boutique CPU strongest warranty



Not home furnishings? This store is responsible for the postage back and forth to return or exchange



Broke in transit? This store is responsible for the postage back and forth to return or exchange



Our quality problem? This store is responsible for the postage back and forth to return or exchange



SL9SH specifications

General information

TypeCPU / Microprocessor
FamilyIntel Core 2 Duo Mobile
Processor number  ? T5500
Part numberLF80537GF0282M
BX80537T5500
Processor markingsLF80537 T5500
1.66/2M/667
Frequency (GHz)  ? 1.667
Frequency in LFM mode (GHz)1
Bus speed (MHz)  ? 667
Clock multiplier  ? 10
Package type478-pin micro-FCPGA
Socket typeSocket M

Architecture / Microarchitecture / Other

CPUID06F6h
Core steppingB2
Next steppingQUGG
Next production steppingSL9U4
Manufacturing technology (micron)0.065
Number of cores2
L2 cache size (MB)  ? 2
FeaturesEM64T technology  ?
Enhanced SpeedStep technology  ?
Execute disable bit  ?
Thermal Monitor 2
Core voltage (V)  ? 1.075 - 1.25
Core voltage in LFM mode (V)0.85 - 0.95
Case temperature (°C)  ? 100
Thermal Design Power (Watt)  ? 34

There are no notes on sSpec SL9SH




Related S-Spec numbers

In addition to the SL9SH S-Spec, this processor was also manufactured with a few production and pre-production S-Spec numbers:

SteppingS-SpecLF80537GF0282MBX80537T5500
B2QTBW+
SL9SH++
G0SLGFK+
L2QUGC+
QUGG+
SL9U4+
M0QWNW+
UnknownQQCL+
QRHW+

NOTE: Engineering and qualifications samples are marked with this color








SL9SH CPUID information

View / search public CPUID submissions
Intel Core 2 Duo Mobile T5500 SL9SH
Part number:LF80537GF0282M
Frequency:1662 MHz
Comment:
Submitted by:hungaryblu

General information
Vendor:GenuineIntel
Processor name (BIOS):Intel(R) Core(TM)2 CPU T5500 @ 1.66GHz
Cores:2
Logical processors:2
Processor type:Original OEM Processor
CPUID signature:6F6
Family:6 (06h)
Model:15 (0Fh)
Stepping:6 (06h)
TLB/Cache details:64-byte Prefetching
Data TLB: 4-KB Pages, 4-way set associative, 256 entries
Data TLB: 4-MB Pages, 4-way set associative, 32 entries
Instruction TLB: 2-MB pages, 4-way, 8 entries or 4M pages, 4-way, 4 entries
Instruction TLB: 4-KB Pages, 4-way set associative, 128 entries
L1 Data TLB: 4-KB pages, 4-way set associative, 16 entries
L1 Data TLB: 4-MB pages, 4-way set associative, 16 entries

Cache:L1 dataL1 instructionL2
Size:2 x 32 KB2 x 32 KB2 MB
Associativity:8-way set
associative		8-way set
associative		8-way set
associative
Line size:64 bytes64 bytes64 bytes
Comments:Direct-mappedDirect-mappedNon-inclusive
Direct-mapped
Shared between all cores

Instruction set extensionsAdditional instructions
MMXCLFLUSH
SSECMOV
SSE2CMPXCHG16B
SSE3CMPXCHG8B
SSSE3FXSAVE/FXRSTORE
 MONITOR/MWAIT
 SYSENTER/SYSEXIT

Major featuresOther features
On-chip Floating Point Unit36-bit page-size extensions
64-bit / Intel 6464-bit debug store
NX bit/XD-bitAdvanced programmable interrupt controller
Enhanced SpeedStepCPL qualified debug store
 Debug store
 Debugging extensions
 Digital Thermal Sensor capability
 LAHF/SAHF support in 64-bit mode
 Machine check architecture
 Machine check exception
 Memory-type range registers
 Model-specific registers
 Page attribute table
 Page global extension
 Page-size extensions (4MB pages)
 Pending break enable
 Perfmon and Debug capability
 Physical address extensions
 Self-snoop
 Thermal monitor
 Thermal monitor 2
 Thermal monitor and software controlled clock facilities
 Time stamp counter
 Virtual 8086-mode enhancements
 xTPR Update Control

Our CPUID database has 3 records for this microprocessor. See all submitted records.
