10T Self align Welding Rotators

Name: 10T Self align Welding Rotators
Brand: HUAFEI
Availability: InStock

FOB Price

USD $1,800 - $15,600 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao;10T Self align Welding Rotators
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HUAFEI	Model Number	10T Self align Welding Rotators
Usage	10T Self align Welding Rotators	Dimensions	350-5500mm(diameter)
Weight	1-100T

Product Description

10T Self align Welding Rotators

welding turning roll

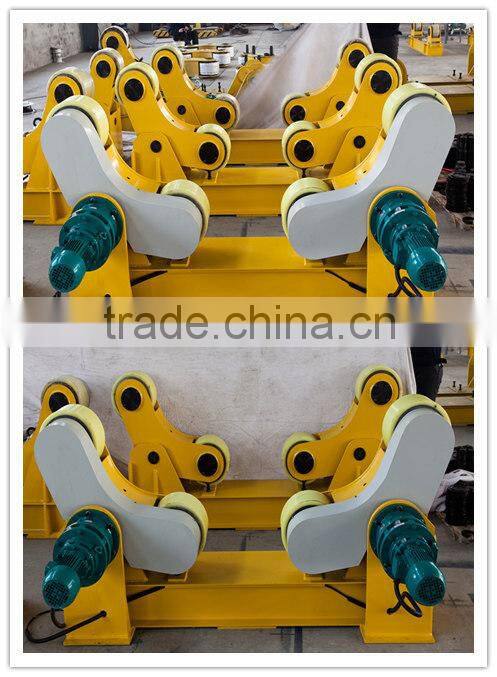

Self-aligning Rotator welding rotator welding turning roll

Self-adjusting Welding Rotator can align by itself according to the cylinder diameter, adopting cycloid pinwheel reducer or worm gear speed reducer. Such rotator is used mainly for welding, polishing, assembling and so on, working with other equipment, can realize the cone being assembled and welded. Such products are widely used in wind power,pressure vessel, petrifaction, pipe, steel structure, and overlaying industries.

Parameter welding rotator welding turning roll

Model No.		HG1 W-5	HG1 W -10	HG1 W -20	HG1 W -30	HG1 W -40	HG1 W -50	HG1 W -60	HG1 W -80	HG1 W -100
Loading (t)		5	10	20	30	40	50	60	80	100
Shell Diameter	min	350	600	600	600	750	800	900	900	900
Shell Diameter	max	2500	4000	4500	5000	5000	5000	5500	5500	5500
Roller speed (m/h)		6-60	6-60	6-60	6-60	6-60	6-60	6-60	6-60	6-60
Motor power (Kw)		2×0.18	2×0.25	2×0.37	2×0.37	2×0.55	2×0.75	2×0.75	2×1.1	2×1.5
Regulating mode		Frequency control
Dimension	Length (mm)	Active 1410 Passive 1270	Active 1585 Passive 1450	Active 2165 Passive 2125	Active 2410 Passive 2410	Active 2410 Passive 2410	Active 2600 Passive 2600	Active 2600 Passive 2600	Active 3020 Passive 3020	Active 3020 Passive 3020
	Width (mm)	Active 800 Passive 340	Active 872 Passive 392	Active 1010 Passive 425	Active 1260 Passive 550	Active 1290 Passive 550	Active 1360 Passive 590	Active 1360 Passive 590	Active 1745 Passive 760	Active 1770 Passive 760
	Height (mm)	660	660	945	1125	1135	1135	1135	1400	1400

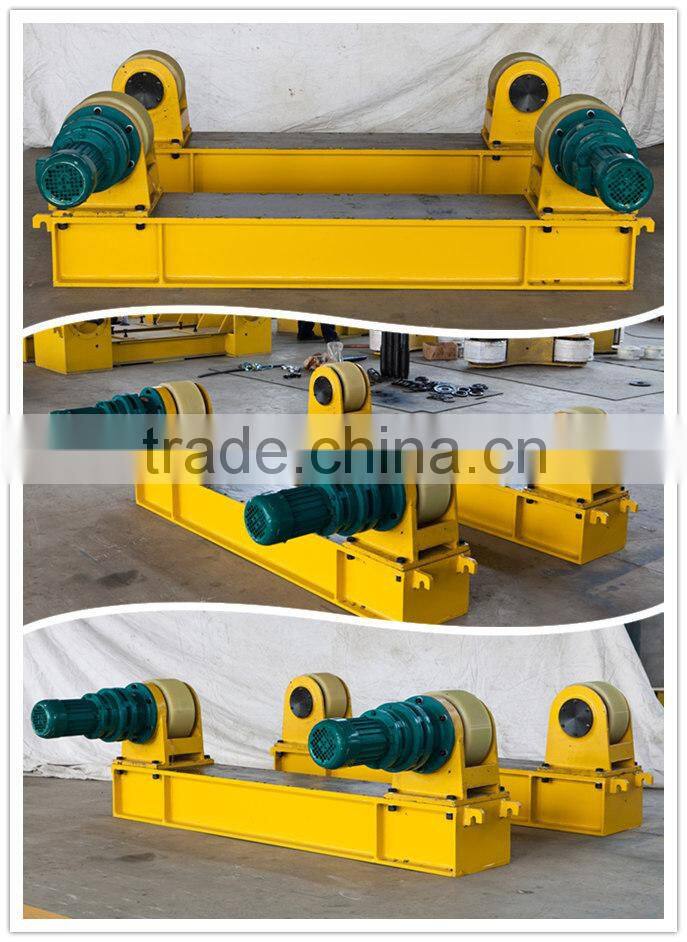

Conventional Rotator welding rotator welding turning roll

Conventional welding rotator can be matched to the different work piece diameter through reserved screw hole or roller center distance, adopting the driven way of cycloidal pinwheel reducer or worm gear reducer. there are three kinds of rollers : rubber rollers, steel rollers, and steel and rubber combined rollers. Such rotator is used mainly for welding, polishing, and assembling and so on, working with other equipment, can realize the cone being assembled and welded. Such products apply widely to wind power, pressure vessel, petrifaction, pipe, steel structure, and overlaying industries. We can design and make specifically on the users’ requirement.

Parameter welding rotator welding turning roll

Model No.		HG2 W-5	HG2 W -10	HG2 W -20	HG2 W -40	HG2 W -50	HG2 W -60	HG2 W -80	HG2 W -100
Loading (t)		5	10	20	40	50	60	80	100
Shell Diameter	Min	250	300	350	600	850	850	850	1000
Shell Diameter	Max	1800	3500	3600	4200	5000	5000	5000	5500
Roller speed (m/h)		6-60	6-60	6-60	6-60	6-60	6-60	6-60	6-60
Motor power (Kw)		1×0.25	2×0.25	2×0.37	2×0.55	2×0.75	2×0.75	2×1.1	2×1.5
Speed adjustable mode		Frequency control
Dimension	Length (mm)	Active 1260 Passive 1260	Active 1760 Passive 1760	Active 1960 Passive 1960	Active 2440 Passive 2440	Active 2800 Passive 2800	Active 2800 Passive 2800	Active 3010 Passive 3010	Active 3310 Passive 3310
	Width (mm)	Active 725 Passive 280	Active 725 Passive 280	Active 745 Passive 320	Active 960 Passive 400	Active 1180 Passive 480	Active 1260 Passive 480	Active 1420 Passive 560	Active 1450 Passive 560
	Height (mm)	660	660	943	1142	1142	1142	875	1393

Our Services

ISO9001:2008 & CE certification

After-sale Service

♥ Warranty : one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material
