Welding Positioner / Welding Turning Table with CE
Seat Type Welding Positioner
Seat-type positioner is by working table turning or tilting, let the welding seam at level or boat type position’s welding device.Table rotation with frequency variable speed, table tilting driven by sector gear or hydraulic cylinder,table rotating angle 0 ° - 120 °.It can achieved linkage control with welding manipulator or welding machine. Control system have 3 option:Button digital control,switch digital control and switching relays control.This machine can widely used in various parts of the shaft,disk, cylinder etc.
Welding Positioner Specifications
1. With professional anti-electromagnet funtion.
2. Have self-locking function.
3. Giving you the competitive price.
4. Tilting from 0 to 120°, rotating 360°.
5. Provide you the excellent service.
6. Supply you the reliable products.
Welding Positioner Technical data
| Model No. | BW2-6 | BW2-12 | BW2-20 | BW2-40 | BW2-50 | BW2-80 | BW2-150 | BW2-200 | |
| Basic loading(kg) | 600 | 1200 | 2000 | 4000 | 5000 | 8000 | 15000 | 20000 | |
| Rotating speed r/min | 0.05-0.5 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | |
| Turning speed r/min | 0.75 | 0.37 | 0.37 | 0.37 | 0.25 | 0.25 | 0.15 | 0.15 | |
| Turning angle (° ) | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-90 | 0-90 | |
| Work table diameter(mm) | 800 | 1100 | 1100 | 1400 | 1600 | 1800 | 2200 | 2500 | |
| Height of work table(mm) | 1000 | 1250 | 1250 | 1600 | 1800 | 1800 | 2300 | 2600 | |
| Allow workpieceoff-center(mm) | Eccentricity | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Centroidal distance | 200 | 250 | 300 | 300 | 300 | 350 | 500 | 600 | |
| Rotating motor power(kW) | 0.37 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 4 | 5.5 | |
| Turning motor power(kW) | 0.75 | 0.75 | 1.1 | 3 | 3 | 4 | 7.5 | 11 | |

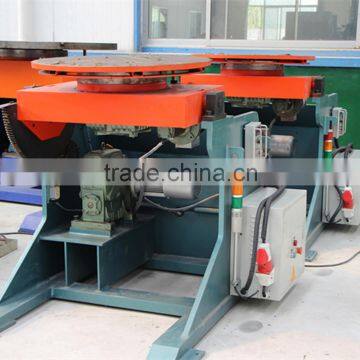

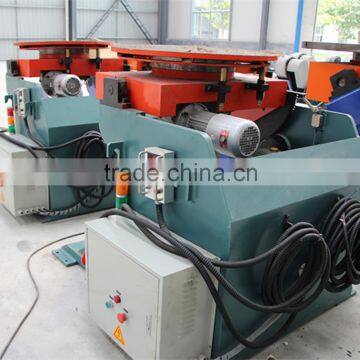

Welding Positioner Pictures
Welding Positioner Video
/video.php?v=1527359967504471&set=vb.100006914478186&type=3&theater
Certification: ISO9001:2008 and CE
After-sale service
♥ Warranty : one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components, spare parts and consumptive material
Jinan GT Machinery Co.,Ltd the sales branch company of Jinan HuaFei CNC Machine is a professional CNC machine manufacturer, which specializes in designing, producing and trading together. The company mainly produce and sell automatic welding equipment, cnc cutting machine, and uncoiling production line. Since establishment, the company has built long-term good cooperation with plenty of customers home and abroad, the products have been exported to many countries including United States, Canada,Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan etc.
Service Purpose:
Our professional sale and after-sale service give you a faithful feel.
Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
