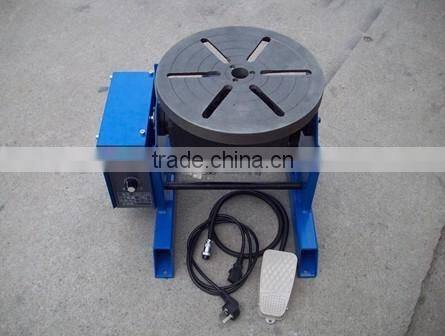

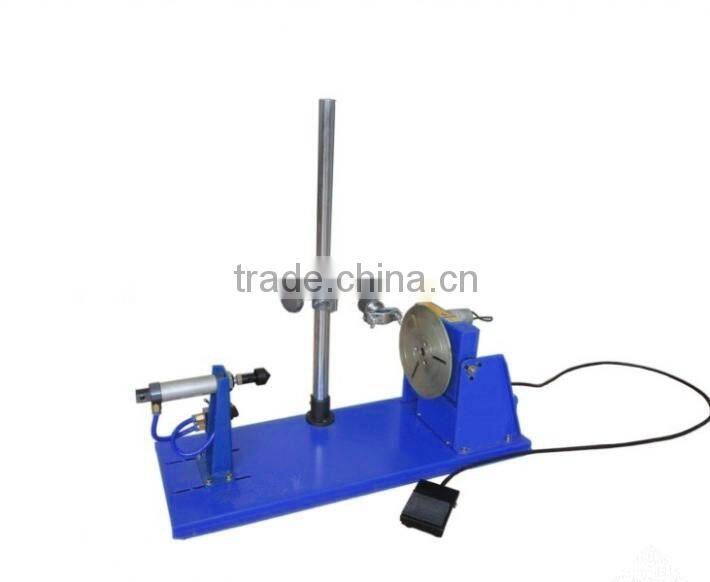

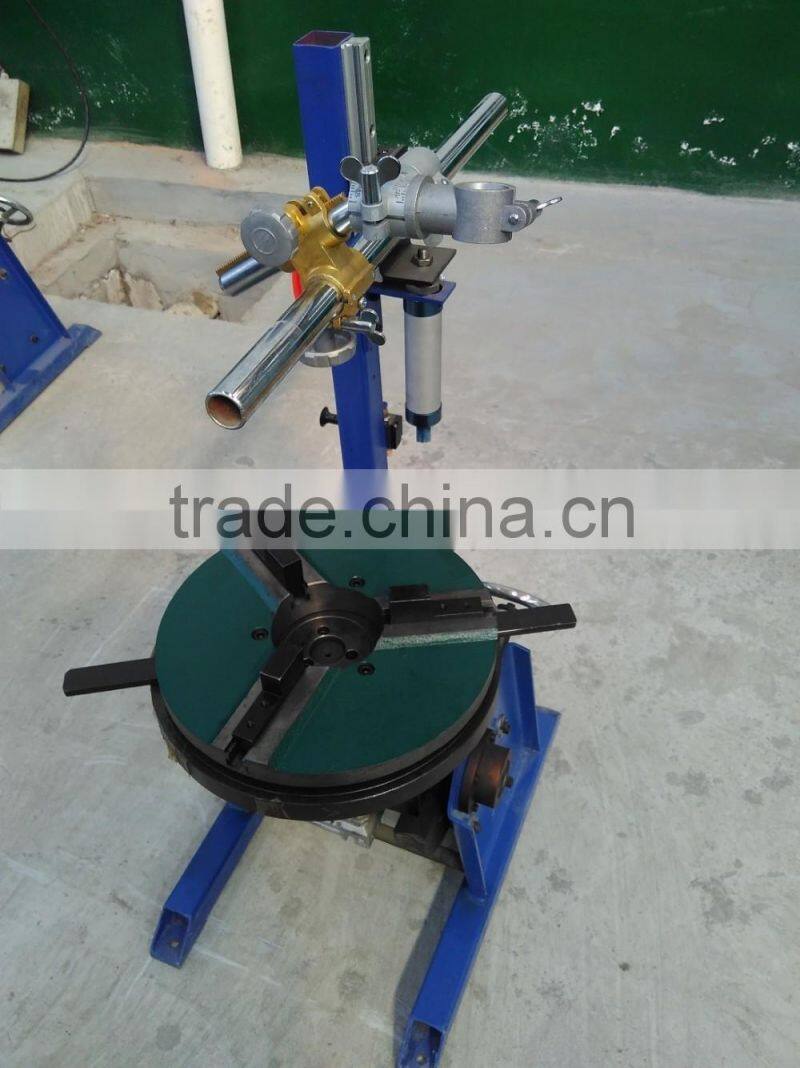

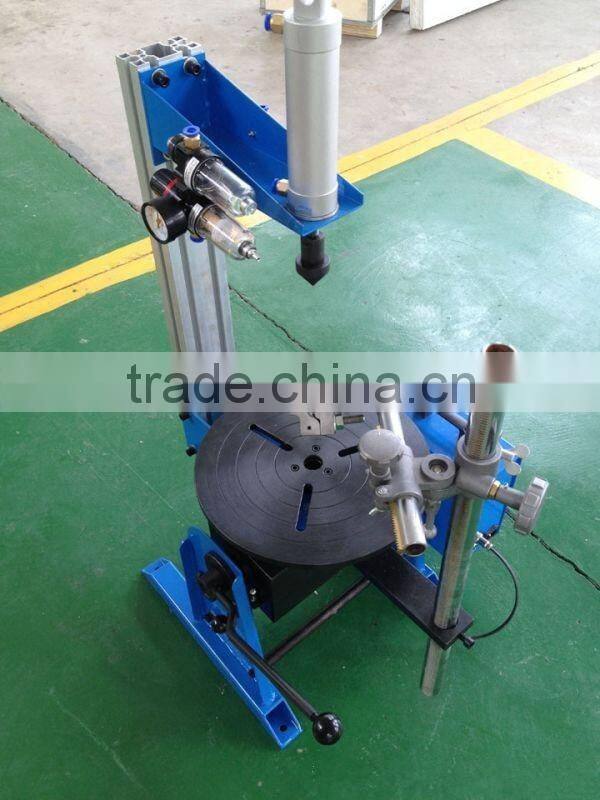

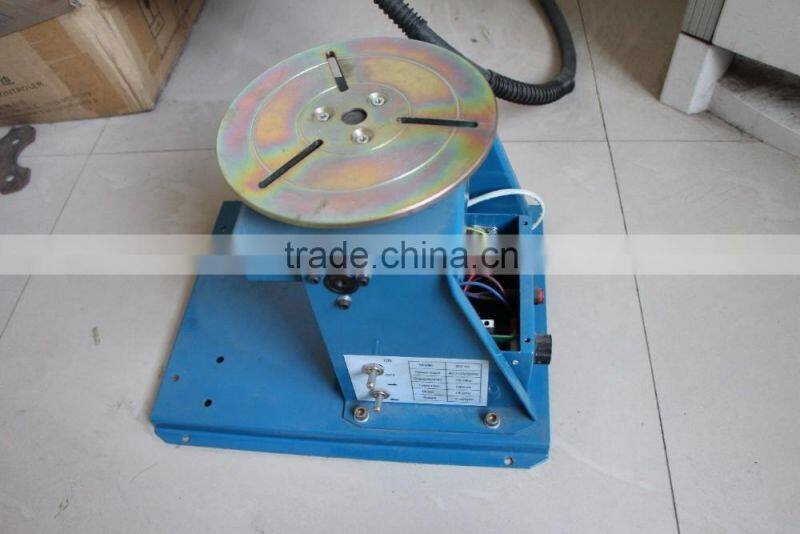

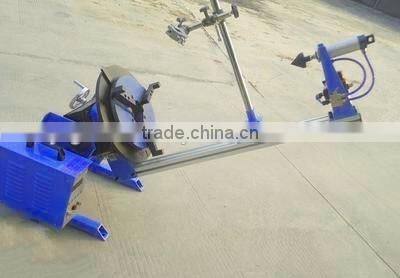

Huafei Engineering Pipe Boiler Welding Positioner Turntable With Overturning Device / Working Table

Name: Huafei Engineering Pipe Boiler Welding Positioner Turntable With Overturning Device / Working Table
Brand: HUAFEI
Availability: InStock

FOB Price

US$ 200 - 3,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HUAFEI	Model Number	BY-10
Usage	Welding Positioning	Dimensions	500470415mm
Weight	700kg	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

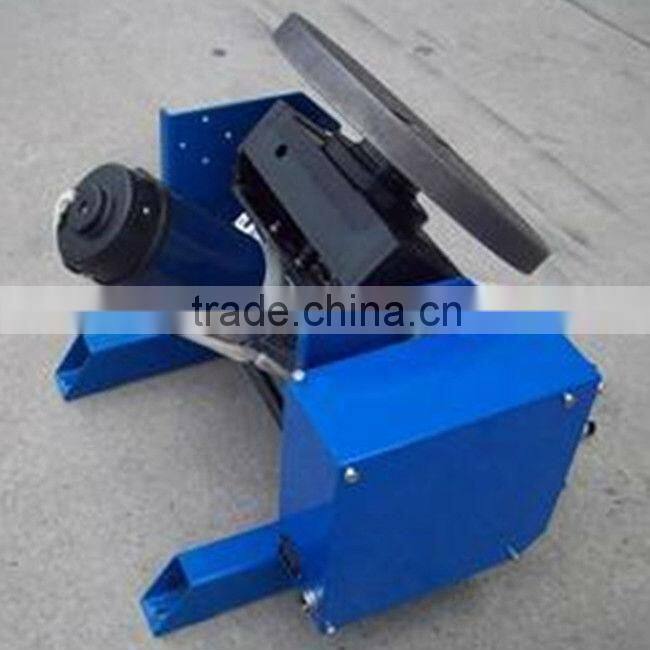

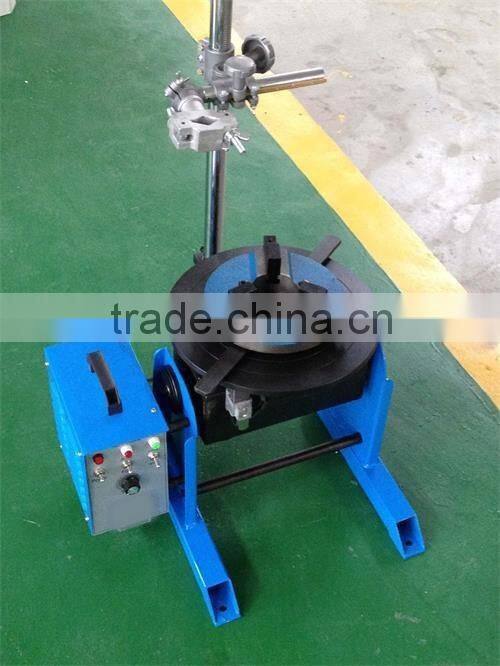

Portable Small Size Welding Positioner

Specifications

1. With professional anti-electromagnet function

2. Have self-locking function.

3. Giving you the competitive price.

4. Tilting from 0 to 90°, rotating 360°.

5. Provide you the excellent service.

6. Supply you the reliable products.

General introduction

Small-block positioner driven by DC motor can achieve step-less speed regulation. It mainly used for welding parts’ conducting, surfacing and cutting. Turning and overturning make the work piece to reach a reasonable welding and fitting angle by the elevating of the working table, the turning of the working table is frequency conversion which can get a satisfied welding speed. There are three kinds of configuration for the control system: button digital control, switch digital control and switch relay control. It can realize the combination control with other machines,such as welding equipment. It designed with professional anti-electromagnet to avoid high-frequency interference.

Technical Data .Parameter

model No.		BW1-01	BW1-05	BW1-1	BW1-3	BW1-5
basic loading (kg)		10/5	50/25	100/50	300/150	500
rotating speed(r/min)		2~20	1~7/15	0.2~7/15	0.2~2.5	0.05~0.5
turning speed(r/min)		manual turning	manual turning	manual turning	manual turning	0.5
turning angle(° )		0~90	0~90	0~90	0~90	0~90
work table diameter(mm)		180	315	345	450	650
height of work table(mm)		215	375	415	500	675
allow work piece off -center(mm)	eccentricity	--	--	--	150	300
allow work piece off -center(mm)	centroidal distance	--	--	--	--	300
rotating motor power(w)		10	80	120	200	300
turning motor power(w)		--	--	--	--	300
shape size	L(mm)	370	430	500	500	650
	B(mm)	270	430	470	520	800
	H(mm)	215	375	415	500	675

Certification

More detail,contact with us freely.
