Home > Transportation > Tricycle & Parts > Electric Tricycle > SY150ZH-C4 150CC Disc Brake Three Wheel Motorcycle and High Quality Cargo Tricycle With Rear Seats and Double Board

SY150ZH-C4 150CC Disc Brake Three Wheel Motorcycle and High Quality Cargo Tricycle With Rear Seats and Double Board

SY150ZH-C4 150CC Disc Brake Three Wheel Motorcycle and High Quality Cargo Tricycle With Rear Seats and Double Board thumbnail-1
SY150ZH-C4 150CC Disc Brake Three Wheel Motorcycle and High Quality Cargo Tricycle With Rear Seats and Double Board photo-1
US$ 765 - 785 MOQ: 20 Sets
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Motorized
Displacement:
111 - 150cc
Contact Supplier Request Quote Chat Now
Jiangsu Linzhi Shanyang Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use For Cargo
Driving Type Motorized
Displacement 111 - 150cc
Body Type Open
Certification Other, CCC
Brand Name SHANYANG
Place of Origin Jiangsu, China
Model Number SY150ZH-C4
Size 3.25m*1.21m*1.35m
Company Information

This is Jiangsu Linzhi Shanyang Group Co., Ltd. Our company is one of the largest manufacturers of motorcycles and tricycles in Jiangsu Province. The quality of motorcycles and tricycles produced by our company are superior.

Our company is located in No.41, Tuanjie Road, Xishan Economic Zone, Wuxi, Jiangsu, China. We now export our products to global markets, including Middle East, Southeast Asia, South America and Africa. Our company's products especially sell well in Africa.

Decades of fine operation makes us believe that quality is the life of the corporation. We keep improving and advancing our facilities. We have the advanced tail gas emission detective facility from Japan Horiba Company, the batholithic test machine, the motorcycle composite test machine, the single arm and three dimension test line machine, the checkup instrument, the tail gas test instrument, the oil wear sensor control instrument and the engine test instrument from Germany. All these facilities ensure every product from our line can undergo strict performance tests. The quality of our products has already reached the attestation request and our products have obtained the CCC certificate. What's more, one model of our products obtained the EEC certificate.

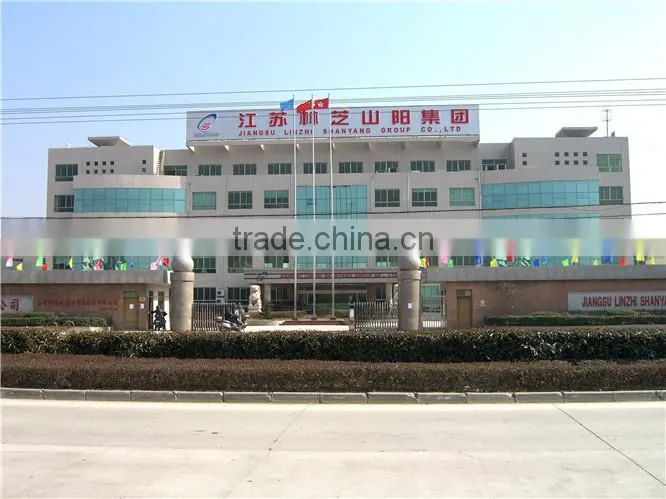

Front door of our company

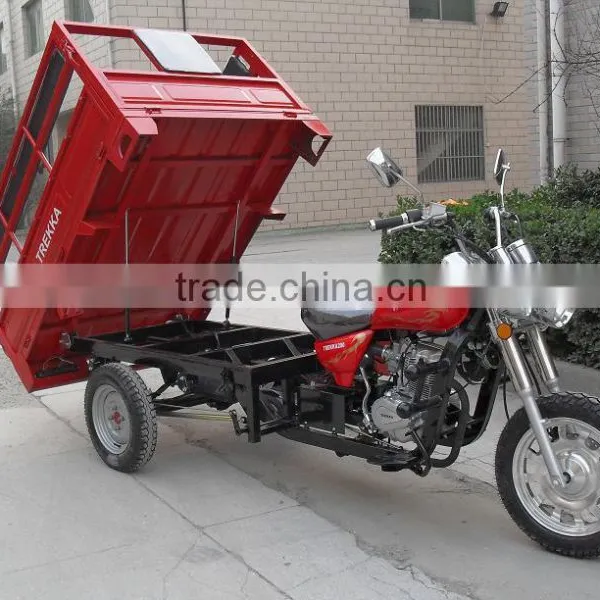

 SY150ZH-C4 150CC disc brake three wheel motorcycle and high quality cargo tricycle with rear seats and double board

Trading certificate

SY150ZH-C4 150CC disc brake three wheel motorcycle and high quality cargo tricycle with rear seats and double board

Certificate of the World Manufacturer Identifier (WMI) Code

SY150ZH-C4 150CC disc brake three wheel motorcycle and high quality cargo tricycle with rear seats and double board

CCC certificate

SY150ZH-C4 150CC disc brake three wheel motorcycle and high quality cargo tricycle with rear seats and double board

Product Description



The following are the specifications:



  150CC 200CC 250CC 300CC
Brand SHANYANG SHANYANG SHANYANG SHANYANG
Engine Model 162FMJ 163FML 167FMM 172mm-2E
Cooling Type air/water cooled air/water cooled air/water cooled air/water cooled
Start Model electric/kick electric/kick electric/kick electric/kick
Driving  Model shaft transmission shaft transmission shaft transmission shaft transmission
Brake Model drum/disc brake drum/disc brake drum/disc brake drum/disc brake
Fuel Tank Capacity(L) 12 12 12 12
Fuel Type petrol  petrol  petrol  petrol
Fuel Consumption(L/100 km) 3.2 3.5 3.5 3.5
Wheel base(mm) 2130 2130 2130 2130
Rear Track(mm) 1045 1045 1045 1045
Ratio Power(kw/r/min) 8.2 10.2 11.5 12
Max torque(nm/r/min) 9.8 13.8 16 20.5
Max Speed(km/h) 60 60 60 60
Max Noise(db) 80 80 80 80
Min Ground Clearance(mm) 200 200 200 200
Compression Ratio 9.3:1 9.0:1 9.0:1 10.3:1
Bore*Stoke(mm) 62*49.5 63.5*62.2 67*65 72*66.2
Displacement(ml) 149.4 197 229.2 269.5
Net Weight(kg) 320 320 320 320
Max Load(kg) 800 800 800 800
Turning Circle Diameter(m) 3.5 3.5 3.5 3.5
Tyre Size 4.5-12/5.0-12 4.5-12/5.0-13 4.5-12/5.0-14 4.5-12/5.0-15
Cargo Box Size(m) 1.7*1.2*0.65 1.7*1.2*0.65 1.7*1.2*0.65 1.7*1.2*0.65
Tricycle Size(m) 3.25*1.21*1.35 3.25*1.21*1.35 3.25*1.21*1.35 3.25*1.21*1.35



Packaging & Shipping

 Packaging:

Tricycle: CKD,  carton box,  wrapper

48 units in one 40'HQ
20 units in one 20'FT

Shipping:

FOB Shanghai
