Electric Motor for Air Compressor

Name: Electric Motor for Air Compressor
Brand: BENLING
SKU: 127946205
Availability: InStock

US$ 300 - 500 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

BENLING

Model Number:

DM27A1

Shanghai Benling Scroll Compressor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name BENLING

Model Number DM27A1

Size 193x135x153

Type Compressor

Car Make electric motor for air compressor

OE NO. electric motor for air compressor

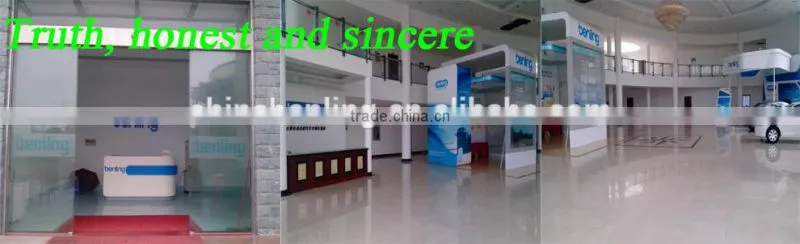

Company sprite: Truth, honest and sincere!!!

DM27A1

DM27A1 27CC 312V DC displacement:18cc rated voltage:312v rotated speed:1800-6000

electric motor for air compressor

Performance(DM27A1)
refrigerant capacity(3000 rpm)	2.15kw /7300 Btu/hr
input power	1.10 KW
current	3.5A
refrigerant capacity(4000 rpm)	2.90kw /9900 Btu/hr
input power	1.49KW
current	5A
refrigerant capacity(6000 rpm)	4.60kw /15700 Btu/hr
input power	2.30KW
current	7A
test condition	Pd/Ps=1.47/0.196 Mpa(G) SC=5℃ SH=10℃
Usable range
evaporated temperature	-15 °F ~ 70°F
condenser temperature	77 °F ~ 167°F
compression ratio	15.0 MAX
refrigerant	R134a
start temperature	-26 °F ~ 158 °F
working temperature	-26 °F ~ 212 °F
storing temperature	-40 °F ~ 221 °F
Compressor parameter
discharge capacity	27.0 cc/rev
weight	6.3kg
oil charge	120cc PVE oil
refrigerant capacity	700cc
rotated speed rang	1000rpm---8600 rpm
safety valve pressure	4.0 Mpa
cover protection level	IP67
motor coil temperature	248°F MAX
discharge temperature	239°F MAX
Motor parameter
motor type	PMSM (permanent magnet synchronous motor
rated tortue	3.5 Nm
max tortue	6.0 Nm
Drive parameter
max power	3700W
working frequency	15HZ-150HZ
over heating protection	212°F
low voltage protection	230V
over voltage protection	430V
soft hardware overload	yes
control method (common way)	1, pwm 2,gear 3,can 4-----
