Help CenterR50S 6/8/10mm Standard Incremental Optical Rotary Shaft Encoder/ Incremental Encoder
Related Products
-
R66T 20mm Incremental Through Hollow Shaft Autonics EncoderUS$ 50 - 80MOQ: 1 Piece -
R50T 6/8/10mm Incremental Through Hollow Shaft / Encoder ShaftUS$ 10 - 15MOQ: 1 Piece
-
R58S 6/8/9/10mm Incremental Rotary Encoder AutonicsUS$ 30 - 50MOQ: 1 Piece
-
E40S 6/8mm Incremental Shaft Encoder for Cross Textile Machine/ Incremental Optical Encoder SensorUS$ 10 - 15MOQ: 1 Piece
-
R30S 4mm Shaft Mini Industrial Incremental Solid Shaft Encoder/ Rotary Optical EncoderUS$ 10 - 15MOQ: 1 Piece
Specifications
1.External DIA:50mm2.Shaft DIA:6/8/10mm
3.Output Model:Voltage /Open Collector/Complementary/Line Driver
4.Pulse No:10-50
Specifications
1.External DIA:50mm
2.Shaft DIA:6/8/10mm
3.Output Model:Voltage /Open Collector/Complementary/Line Driver
4.Pulse No:10-5000
Principle of Incremental Rotary Optical Encoder
An incremental rotary encoder provides cyclical outputs (only) when the encoder is rotated. The incremental rotary encoder is the most widely used of all rotary encoders due to its low cost and ability to provide signals that can be easily interpreted to provide motion related information such as position and velocity.
Optical encoders use light (optics) to identify unique positions for the encoder. Optical encoder engines can be amazingly precise, with some designs hitting 4 million counts per revolution. This makes an optical encoder a desirable choice where resolution matters, from office equipment like computer mice and copiers to medical equipment. With phased-array technology, an optical encoder is increasingly able to perform in much tougher environments which require a combination of durability and resolution, like crane operations and automated vehicle guidance.
Product Description
1.Encoder R50S series are widely applied in light industry.
2.Compact design, easy installation.
3.High radial and axial load.
4.Standard flange, clamp flange and synchronous flange are used together.
5.Imported bearings, shock resistant.
6. Multiple output formats to request.
7.Compatible to various receivers and counters.
8. Waterproof protection of outgoing line.
MECHANICAL SPECIFICATIONS | |
External Diameter |
50mm |
Shaft Diameter/Shaft Hollow Diameter |
6/8/10mm |
Slew Speed |
6000r/min |
Shaft Load |
≤30N |
Operating Temperature |
-20 °C(-40 °C)- +85°C |
Protection Class |
c |
Termination |
G/E |
ELECTRICAL SPECIFICATIONS | |
Supply Voltage |
DC5V-DC26V |
Output Model |
E/C/F/L |
Frequency Response |
0-100kHz |
Current Requirement |
≤60mA |
Output Pulse No. |
10-5000 |
Index Length |
1T |
Output Phase |
A,B,Z/A,-A,B,-B,Z,-Z |
TERMINATION | |||
G Side Entry Cable |
E Rear Entry Cable |
C Side Entry Plug |
R Rear Entry Plug |
OUTPUT MODEL | |||
E Voltage |
F Complementary |
C Open Collector |
L Line driver or according to user requirement |

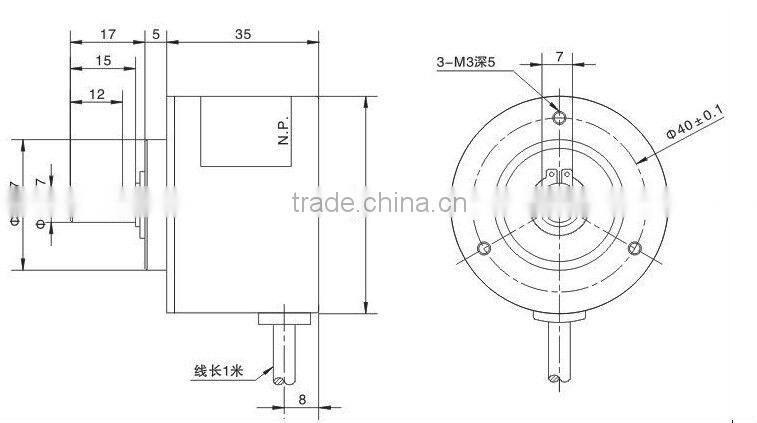

Mechanical Dimensions
