Digital Timer Relay with on-delay and off-delay function
FAQ ( Frequently Asked Questions)
01. Does the digital timer relay has power failure memory function ?
Yes , it will keep the timing data when disconnecting the power.
02. Does the HG4 timer relay has reset function?
yes , it has reset function. You can choose reset by manual or reset automatically.
03. Can the digtial timer count down and count up ?
Yes , it can work as count down mode and count up mode . You can set it on the menu of the timer.
04. Is 24V DC power supply available for this timer relay ?
Yes . Our standard power supply of the timer is 100-240VAC/DC , and 24VDC can be ordered.
Technical Specification
Timing Range |
0.01S-9999H |
Contact capacity |
AC250V 3A Resistance load |
Delay range |
0.1S-9999H |
Power Consumption |
<6W |
Temperature |
-10~50℃ |
Timing accuracy |
±0.5% |
Humidity |
35~75%RH |
Reset time |
<0.2s |
Working life |
Mechanical life: above 5 million times;Electrical life:100,000 times under rated load |
Power supply |
100-240V AC/DC , 24V DC |

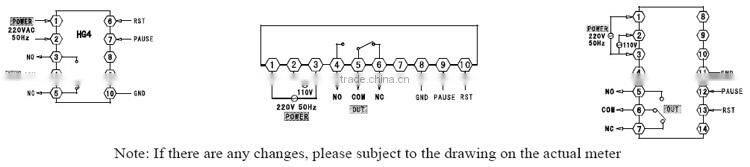

Connection Drawing
Packaging and Shipping
Company information and certificates
