Air-cooled Diesel Silence Generator Set 4-7 kw Generator Set

Fuzhou Gabreal Machine Co., Ltd.

US$ 450 - 600 MOQ: 10 Sets

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

GBR

Model Number:

GD5

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name GBR

Model Number GD5

Output Type AC Single Phase

Speed 3000rpm/3600rpm

Frequency 50HZ/60HZ

Rated Power 4-7kw

Rated Voltage 230v,230/400v

Rated Current 25A

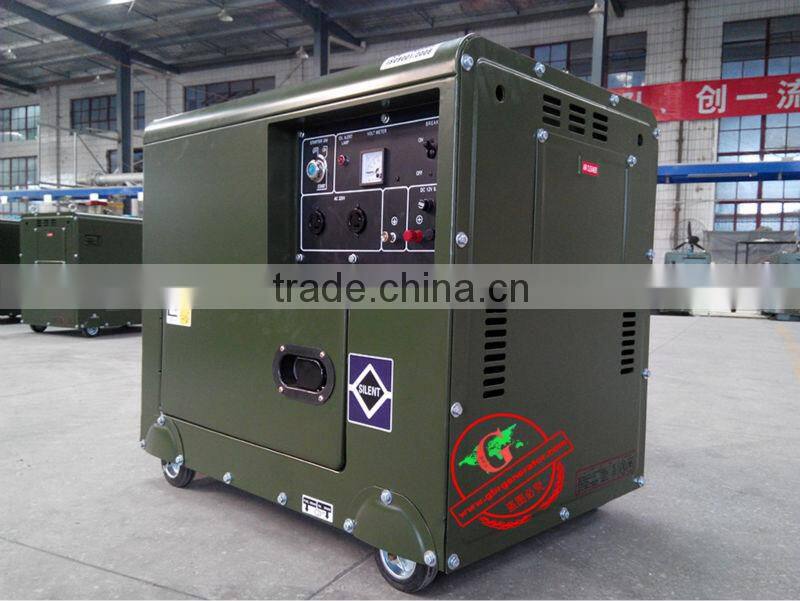

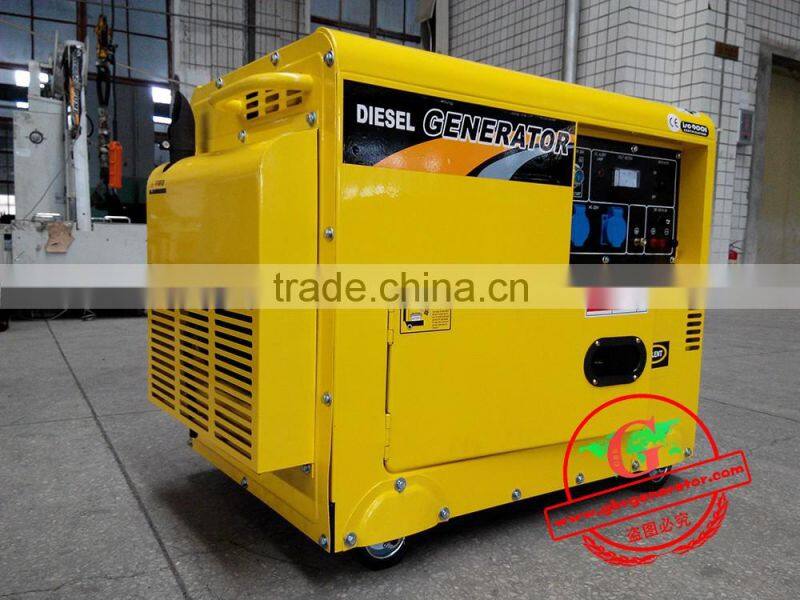

Air-cooled diesel silence generator set 4-7 kw Generator set

1.Genset with top technology 4 stroke engine.

2.New type automatic AVR ensure the generators with stable output voltage.

3.Low-oil alam system can automaticly stop the engine when the oil is too low.

4.Continus running time : 12hours.

5.Products are ISO9001:2000 CE Approval.

More detail,contact with us,show the test video and photos.

Air-cooled engine Diesel silent generator set
Model		GD5
	Frame Type	SILENT
Engine	Origin	Gabreal Co.,Ltd
	Type	GD186FAE
	Max. Power Output (hp)	9.0HP
	Output(KW/rpm)	6.5/3000 7.0/3600
	Compress the ratio	19:01
	Combustion Systems	EXPLODE INGITION
	Cooling Type	Cooled Type
	Lube oil system	Pressure splash Type
	Fuel type	0#(Summer)10#(Winter)35#(Severe cold)
	Lube oil type	SAE10W30(CD)
	Lube oil capacity	1.65 L
	Starting System	Electric or Remote Control
	Type	Air-cooled, 4-stroke, Diesel
	Borestroke(mmmm)	86*70
	Displacement (cc)	418
	Fuel Consumption(g/kw/h)	210
	Fuel Tank Capacity	16 L
	Continuons Operating Honrs	12hr
Generator	AC Frequency(Hz)	50 / 60
	AC Output Voltage(V)	110,120,220,230,240,110/220,120/240 ,230/400,240/400
	Rated AC Output(kW)	5
	Maximum AC Output(kW)	5.5
	Rated Current	19--20.5A
	Phase	Single/both
	Insulation(Class)	B
	Progression	2
	Power factor	1.0
	Voltage regulated	≤ + 1%
Standard Features	Panel Type	Standard
	Output Plug	Two Unit
	DC12V/8.3A DC Output(V/A)	Connection Pole Output
	Voltage Meter	Equipped
	Automatic Voltage Regulator	Equipped
	Oil Alert	Equipped
	Noise Level LwA Noise Level LwA	72
Electric	Start the machine power(V/KW)	12V/0.8KW
	The charger capacity(V/A)	12V/8.3A
	accumulator capacity(V/Ah)	12V/20-36Ah
Dimension	Dimensions(LWH)(mm)	955565780
	Net Weight (kg)	170
	Gross Weight (kg)	185
	LG 20#	72
	Quotation Contain	PS:Additional Costs
	1. Electric starter With 32AH battery
	2.Four Wheels	1.Remote Control(100m)
	3.Low Oil Shutdown	2.ATS
