Automatic Vertical Coffee Packing Machine

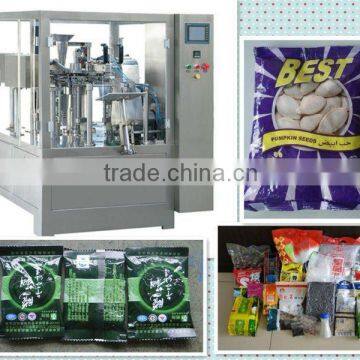

Automatic Vertical Coffee Packing Machine photo-1

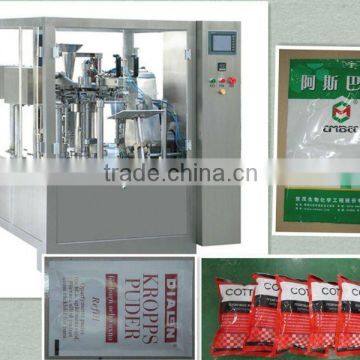

Automatic Vertical Coffee Packing Machine photo-2

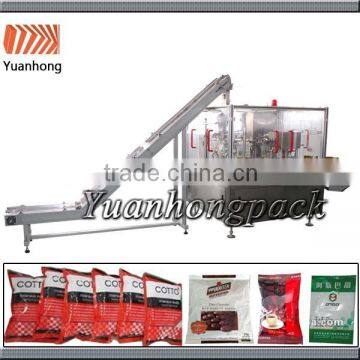

Automatic Vertical Coffee Packing Machine photo-3

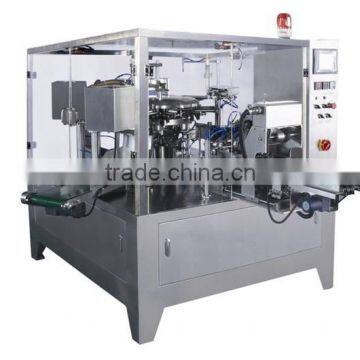

Automatic Vertical Coffee Packing Machine photo-4

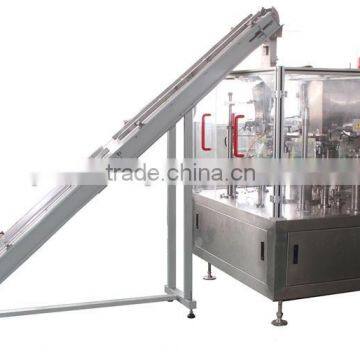

Automatic Vertical Coffee Packing Machine photo-5
Automatic Vertical Coffee Packing Machine photo-6
US$ 10,000 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Film, Foil, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai for vertical coffee packing machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Bags, Film, Foil, Pouch, Stand-up Pouch
Packaging Material Plastic, Other, Plastic, PET / AL / CPP composite film
Automatic Grade Automatic
Driven Type Electric
Voltage 380v
Power 2.5kw, 4kw
Place of Origin Anhui, China
Brand Name Yuanhong
Model Number YHXZ6-1K
Weight 1000KG
Dimension(L*W*H) 1540 * 1240 * 1465mm
Certification CE ISO9001
After-sales Service Provided Overseas service center available

                      automatic vertical coffee packing machine



Company Information

automatic vertical coffee packing machine

1- Anhui Yuanhong Machinery Automation Co.,Ltd is a high and new technology enterprise

    which specialized in R&D and manufacture automatic packaging machine with CE and ISO9001                    certificate since 1995.

2- Main products are vertical packing machineweighing machinesecondary automatic

    packing machine(small bags into big bag)vacuum packing machinefruit and vegetable packing

    machine1kg-50kg powder and granule bag packing machine, filling machine, detection machine,       elevator conveyorrobot palletizer for bags,cases, drumsautomatic packing linebag-sewing              machine and so on.

3- Especially the heavy bag (25kg-50kg) and coffee beans packaging machine stay at advanced

    level in the world.



Product Description

Details---vertical coffee packing machine:
The equipment is consist of automatic bag feeding,packaging machine and and a Multihead weigher,Highly suitable for  weighing and packaging for Snacks,Potato Chips,Dry fruits,Tea,Sugar,Seeds,Grains.
Technical parameters---vertical coffee packing machine:

Mechanical locationsix stations for vertical coffee packing machine
Bag type

Vertical zipper pouches,stand up pouches,flat bags

(side sealing,four sides sealing bag,zipper bag)

Packaging materialsPET / AL / CPP composite film bag
Packing sizeW: 100-210mm  L: 100-350mm (adjustable, make to customer)
Packing speed

50 bags/min or less, the speed is determined by the material itself and the

filling weight

Electrical voltage380 v three-phase ,50 Hz
Total power4 KW
Compressed air  consumption0.6 m³ / min
Dimensions1540 × 1240 × 1465mm

Note



Select different types of packaging machines to be based on the parameters of the bag type ,bag size,etc.



Details Images

Machine Details---vertical coffee packing machine

automatic vertical coffee packing machineautomatic vertical coffee packing machine



automatic vertical coffee packing machineautomatic vertical coffee packing machine



Features

1. bag size is adjustable according to the material.

2. filling, weighing, bag-giving, sealing, coding, and product output automatically.

3. perfect prevention system (to guarantee the product quality).

4. 304 stainless steel, water-proof, easy to wash.

5. PLC control, touch screen, easy to operate.

6. The unit has the advantages of fast packing, nice and continuous sealing, good looking    appearance and the outside effect better.

workshop

automatic vertical coffee packing machineautomatic vertical coffee packing machine

Packaging & Shipping

automatic vertical coffee packing machine



automatic vertical coffee packing machine automatic vertical coffee packing machine automatic vertical coffee packing machine



FAQ

1. How about engineers service oversea?

Engineers available to service machinery overseas;

2. How to use the machine?

We will supply customer the installation manual or video online;

3. Minimum order quantity and maximum order quantity?

We dont have limit for the MOQ.

4. How about the guarantee period?

One year.

5. Will you accept L/C, D/A, D/P, Western Union, MoneyGram as payment terms?

Yes, T/T, L/C, D/A, D/P, Western Union, MoneyGram is accepted.

After-Sales Service

.Find our products through http://cnyuanhong.en.china.cn,  /en etc.

.One year warranty for the whole system.

.Can arrange technician for equipment installation and debugging in your factory.

.After one year, we can help you to maintain the machine and the accessories provided only for the cost price.

.We can provide the internship service and help you train the operator and mechanic.

.Free production technology and process configuration.

.We can help you to design the product line, workshop, and provide turn-key project.





Note:

Any question about technical or price, pls send inquiry or click the contact supplier button. Competitive quotation and superior quality will be provided for you. Looking forward to hear from you.  Welcome to visit our factory warmly.
