Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Medical
Packaging Type:
Bags, Film, Foil, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity, Food, Medical
Packaging Type Bags, Film, Foil, Pouch, Stand-up Pouch
Packaging Material Plastic, Other, Plastic, Coffee Packing Machine
Automatic Grade Automatic
Driven Type Pneumatic
Voltage AC 380V 50HZ
Power 5.5KW
Place of Origin Anhui, China
Brand Name Yuanhong
Model Number YH1000A6 Coffee Packing Machine
Weight 1650KG
Dimension(L*W*H) 1560*1920*3520mm
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas

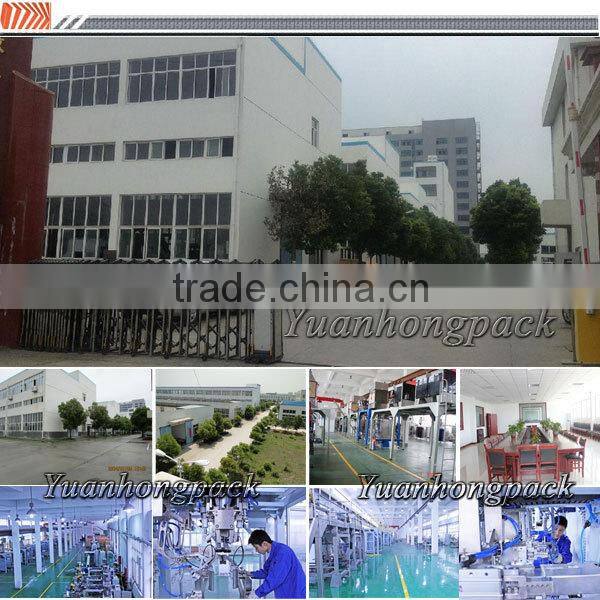

Company Information --  Coffee Packing Machine



1- Anhui Yuanhong Machinery Automation Co.,Ltd is a high and new technology enterprise

    which specialized in R&D and manufacture automatic packaging machine since 1995.

2- Main products are VFFS vertical packaing machineweight machinesecondary automatic

    packing machine(samll bags into big bag)vacuum packing machinedetecting and filling

    machine1kg-50kg powder and granule bag packing machinebags/bottles into box robot

    palletizerautomatic packing linebag-sewing machine and so on.

3- Especially the heavy bag (25kg-50kg) and secondary packing machine stay at advanced

    level in the world.





                      WARMLY WELCOME TO VISIT OUR COMPANY !!!

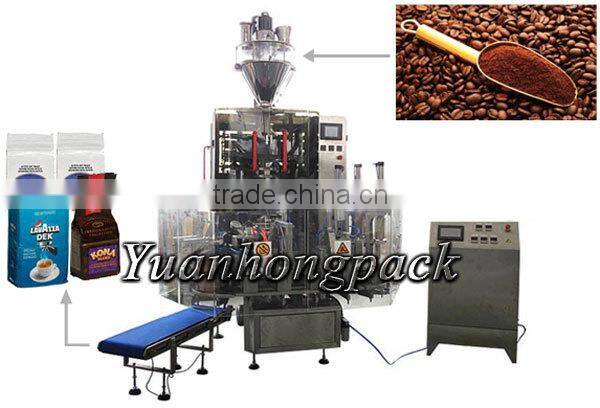

 Coffee Packing Machine

This vacuum packing system consist of YH1000 Vacuum &bag bag reshape system , CJS2000

Auger filler , VFS5000F vertical packing machine, the bag size is adjustable according to material,

it has advantages of fast packing, nice andcontinuous sealing, good-looking appearance and the

inside pumping keep the vacuum effect better, it is widely used in food, pharmacy, chemical and

other industries.

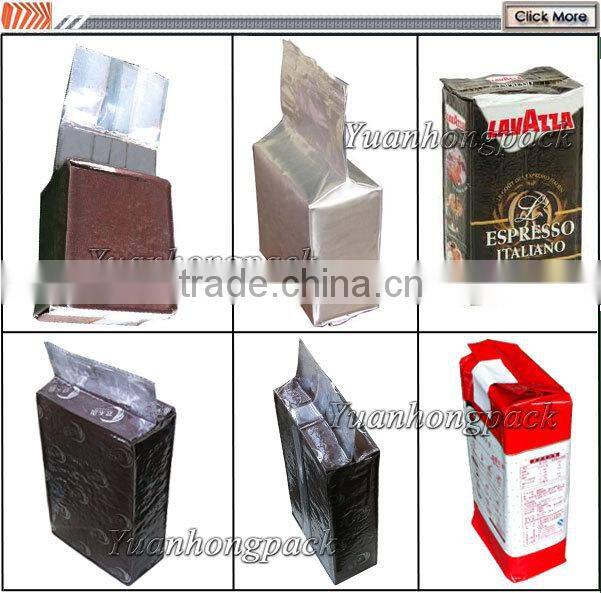

Bag Samples --  Coffee Packing Machine

 Coffee Packing Machine



Specifications -- Coffee Packing Machine



MODEL

YH1000A6

Bag Type

vacuum & reseal brick bag

Maximum Capacity

up to 2kg

Minimum Capacity

depend on product characteristics but normal 100g

Speed

6-12bags/min (depend on products characteristics)

Hopper Capacity

50 Litres

Weighing Accuracy

± 0.2% depend on products characteristics

Bag Length

50 - 340mm

Bag Width

80 - 260mm

Reel Film Width

 540mm

Film Thickness

0.04 - 0.12mm

Reel Outer Dia.

400mm

Reel Inner Dia.

75mm

Voltage

AC220V/50Hz 1 phase or customer specification

Machine

VFS500F

3kw, 800kg, 1650*1140*1650mm

CJSL2000

1.2kw, 250kg, 1000*950*2200mm

YH1000

5.5kw, 600kg, 3125*660*1050mm

Compressed Air Requirement

0.6MPa 0.36M3/min

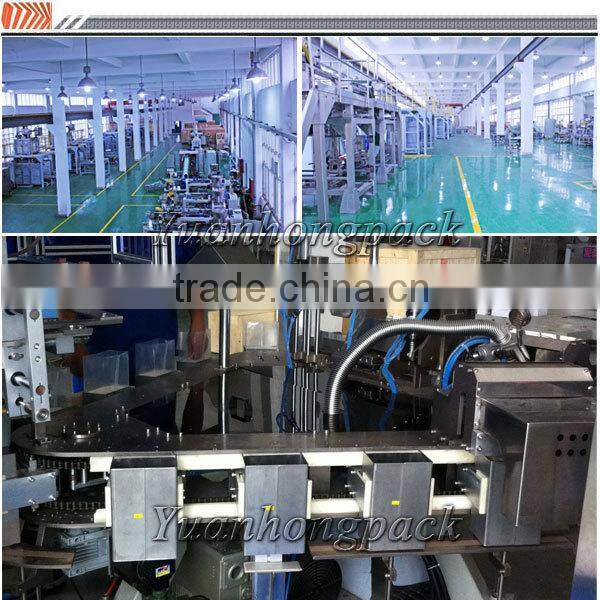

Workshop --  Coffee Packing Machine

Coffee Packing MachineCoffee Packing Machine

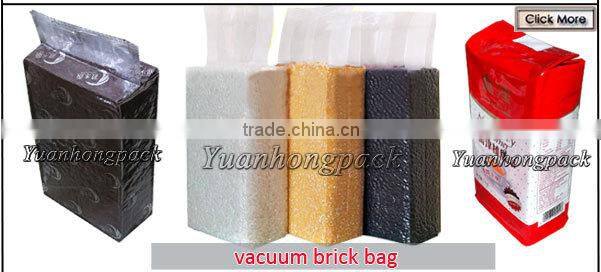

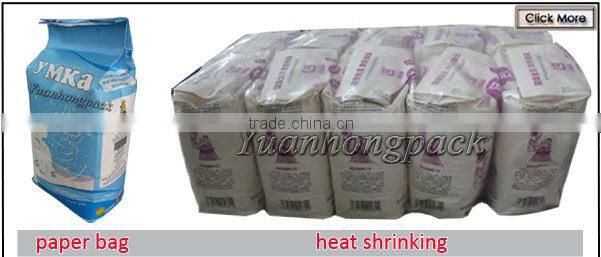

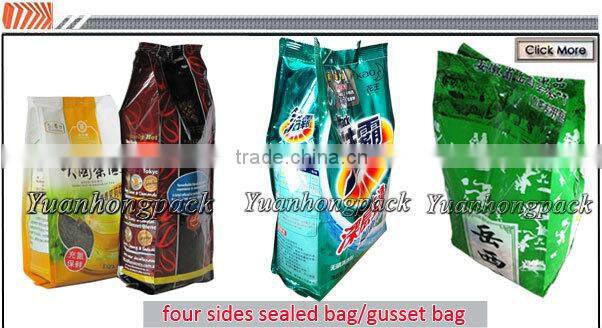

Recommended Bags --  Coffee Packing Machine

Coffee Packing MachineCoffee Packing MachineCoffee Packing MachineCoffee Packing MachineCoffee Packing MachineCoffee Packing Machine

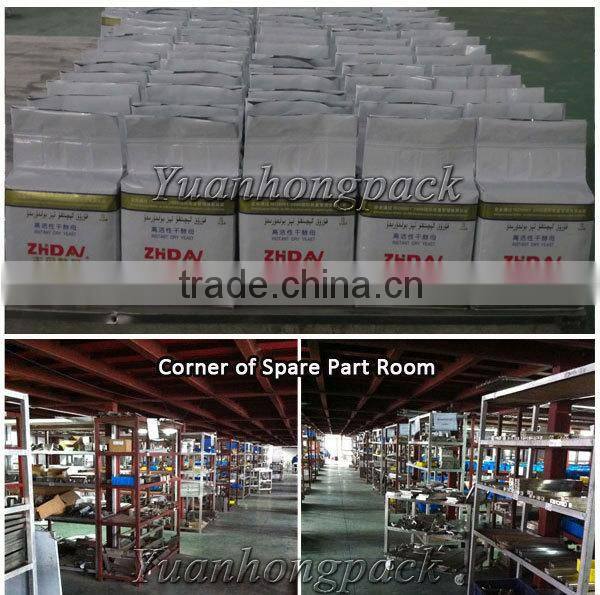

Packaging & Shipping --  Coffee Packing Machine

Coffee Packing Machine



OUR PROMISE of Coffee Packing Machine



Custom-made machine:

We have Great customized and design ability. Any required custom made machine can be

designed and manufactured for convenient operation and reasonable cost, making your

packaging system work smoothly.

Installation:

1- We provide videos and instruction manual to show the process of installation.

 2- We provide training for installation for free in our factory.

3- We can send technician to buyer's factory to install the machine and provide training service.

After Sales Service:

1- One year quality warranty and free lifetime technique support.

2- Free spare parts would be supplied if machine broken within warranty period.

3- After the warranty period, the spare parts for replacement are offered based on certain charge.



Mob: 0086 18956067610       Skype: yuanhongpack_jason



Thank you for your inquiry and we will provide packaging solutions according to

your requirements immediately.
