2014 Anhui YHMD-1 automatic 25KG Bag Palletizing horizontal pallet bag packing machine
This Bag packing machine production line including: automatic weighing packaging machines, automatic bag feeding machine, automatic sealing & sewing system, weight checker and automatic palletizer. The whole production line can be realized on automatic weighing packaging, palletizing for bulk materials. Packing speeds of up to 600 bags / hour (25 kg / bag, PP, Kraft paper bags).
Production process: feeding bags →opening the bag → filling → sealing → palletizing.

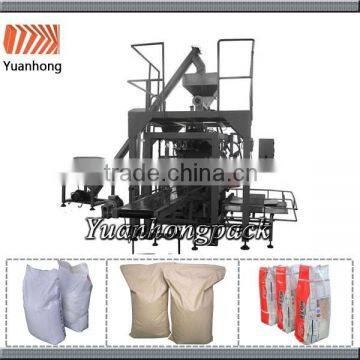

1. 25KG Automatic Powder Bag packing machine
Introduction--- Bag packing machine
This bag packing machine is developed for powdery material packing in allusion to Agriculture,chemical and foodindustry etc. The unit is provided with the functions of elevating the materials, automatic bag-giving, bag opening, materials filling, automatic bag-conveying and sealing. Can be linked with all kinds of powder materials production equipment to work to achieve unattended production of large-sized packaging operations. LCD touch screen control. human-computer interface more favorable, automatic fault diagnosis, safety shutdown protection, quick adjustment and easy maintenance.
Technical parameters--- Bag packing machine

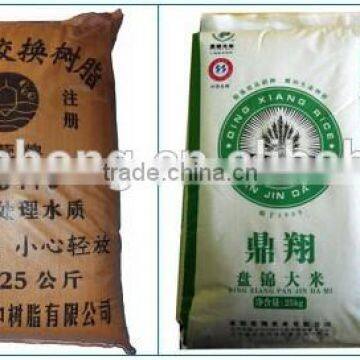

| Packaging materials: | 1.Woven Bags 2. Kraft paper bags 3. Plastic composite film |
| Package Dimensions: | (700 ~ 1100) * (480 ~ 650) L * W (Unit: mm) |
| Package weight: | 25-50 kg / bag |
| Measurement accuracy: | ±0.5% |
| Speed: | 1- 4 packs / minute (depending on packaging materials, bags and other dimensions may vary slightly) |
| Air supply: | about 0.5 ~ 0.7Mpa |
| Power: | about 3.2 KW 380 ± 10% 50HZ |
| Dimensions | 4200 × 2200 × 2100 (L × W × H) (unit: mm) |
| Sealing | 1. Woven bag:lura folding/ seaming |
| 2. kraft paper bags: sealing / seaming | |
| 3. composite film bag: sealing |

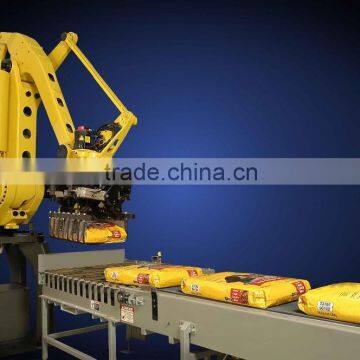

2. Automatic Big bag palletizer--- Bag packing machine
Introduction--- Bag packing machine
Automatic Big bag palletizer is the product of the bags loaded, arranged according to a certain code on the tray, automatic stacking, stacking layers can be then introduced to facilitate forklift transported to the storage facility. This equipment uses PLC + touch screen controls, intelligent operations management, simple, easy to master. Can greatly reduce labor and reduce labor intensity. High-speed, stable, space saving design ideas. Separate off the board used, faster, more space-saving. Of a machine, adjust quickly, do not have to worry about replacing the product stack. Touch-screen operation to achieve human-computer dialogue, to show the production speed, failure causes and location, high degree of automation. It adopts PLC programmable sorting stacking layers of cartons, pallet supply and discharge can be programmed to control. Mainly used in fertilizers; feed; chemical; and cement industries.
3. Other related equipments
Cache Line, Pressure charter, Weigher Check Machine, Automatic Online Film Wrapping Machine etc.
1. How about engineers service oversea?
Engineers available to service machinery overseas;
2. How to use the machine?
We will supply customer the installation manual or video online;
3. Minimum order quantity and maximum order quantity?
We don’t have limit for the MOQ.
4. How about the guarantee period?
One year.
5. Will you accept L/C, D/A, D/P, Western Union, MoneyGram as payment terms?
Yes, T/T, L/C, D/A, D/P, Western Union, MoneyGram is accepted.
.Find our products through http://cnyuanhong.en.china.cn, /en etc.
.One year warranty for the whole system.
.Can arrange technician for equipment installation and debugging in your factory.
.After one year, we can help you to maintain the machine and the accessories provided only for the cost price.
.We can provide the internship service and help you train the operator and mechanic.
.Free production technology and process configuration.
.We can help you to design the product line, workshop, and provide turn-key project.
