Help Center2016 2HP Fish Pond Aerator, Shrimp Farming Aerator, Cheap Paddle Wheel Aerator With Bantam Gearbox and Split Frame
Related Products
-
1HP Fish Pond Aerator, Paddlewheel Aerator With 9 Spline Gear BoxUS$ 100 - 300MOQ: 1 Set -
Pool Aerator, Prawn Pond Aerator, 1 HP Paddle Wheel Aerator With Cheap PriceUS$ 100 - 300MOQ: 1 Set
-
2015 Paddle Wheel Aerator India, Water Wheel Aerator, Paddle Water Aerator With Factory PriceUS$ 10 - 350MOQ: 1 Set
-
2015 New Aerator for Shrimp, Paddle Wheel Aerator With High Speed, Lake AeratorUS$ 1 - 350MOQ: 1 Set
-
2015 New Aerator for Ponds, Paddle Wheel Aerator With High Speed, Kincir Air TambakUS$ 10 - 400MOQ: 1 Set
shrimp farming aerator

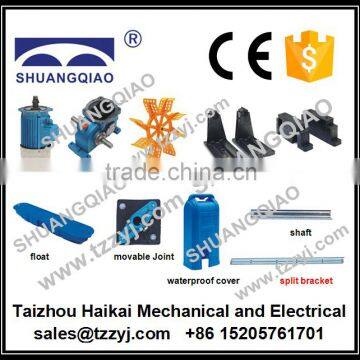

Main Parts
| No. | Item Name | Quantity | Details | Functions |
| 1 | Motor | 1 set | 2 HP/1.5KW, 3 phase, cast iron body | Provide the power |
| 2 | Reducer | 1 set | Arc-shaped bevel gear box, cast iron body | Change the motor output rate |
| 3 | Impeller | 4 pcs |
Dia:66.5cm Material: Engineering plastic |
Splash the water and make oxygen into the water, provide enough oxygen |
| 4 | Float | 3 pcs | 100% New material | Support the paddle wheel aerator on the water surface |
| 5 | Bush Stand | 2 pcs | 100% New material | Support the Shaft |
| 6 | Shaft | 2 pcs | 304 stainless steel | Transfer the force |
| 7 | Cover | 1 pcs | 100% New material | Protect the motor |
| Futures | Functions |
| 1. Arc-shaped bevel gear box | Save energy and high efficiency |
| 2. Bevel gear material: chrome-manganese-titanium alloy steel | Longer service life |
| 3. Mechanical seal | No leakage and no pollution |
| 4. A protector is added to motor | Prevent the motor being accidentally burned out. |
Technical Parameters ( Standard: SC/T6010-2001)
Model |
Motor power (r/kw) |
Overall Weight (kg) |
Loading water surface (Acre) |
Power Efficiency kg/kw.h |
Aeration Capacity kg/h |
Noise Db(A) |
Insulation resistance mΩ |
| YC-0.75 | 1.5 | ≤60 | 3-8 | ≥1.25 | ≥1. 9 | ≤80 | >1 |
| YCD-0.75 | 1.5 | ≤60 | 3-10 | ≥1.25 | ≥1. 9 | ≤80 | >1 |
1. 1 year guarantee service.
2. English manual for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. Any problem, we will give solution in 12 hours.

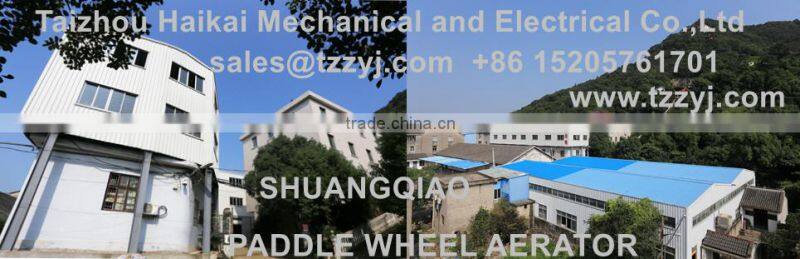

Taizhou Haikai Mechanical and Electrical Co.Ltd
1. History: built in 2001, 13 years experience of making the motors and aerators.
2. Products: SHUANGQIAO brand motors, paddle wheel aerators, impellers aerator, multi-function surge aerator and kinds of aerator spares and accessories.
3. Address: It's located in Yuanqiao, Huangyan, Taizhou, Zhejiang, China. Near Taizhou railway station and 3 hours to Ningbo Port.
4. Win-win Goal: With the high reputation and our first-class service and quality, Haikai will be more prospourse ,as well as with your trust and cooperation.
