Solar Water Pump Controller 0.75KW / 1.5KW / 2.2KW / 3KW / 4KW

Solar Water Pump Controller 0.75KW / 1.5KW / 2.2KW / 3KW / 4KW thumbnail-1
Solar Water Pump Controller 0.75KW / 1.5KW / 2.2KW / 3KW / 4KW thumbnail-2
Solar Water Pump Controller 0.75KW / 1.5KW / 2.2KW / 3KW / 4KW photo-1
Solar Water Pump Controller 0.75KW / 1.5KW / 2.2KW / 3KW / 4KW photo-2
US$ 332 - 650 MOQ: 1 set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HOLLEY
Model Number:
HP-I 750 / 1700 / 2500 / 3600 / 5000
Contact Supplier Request Quote Chat Now
Zhejiang Holley International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HOLLEY
Model Number HP-I 750 / 1700 / 2500 / 3600 / 5000
Output Type Triple
Input Voltage 540-650Vdc / 3ph 380Vac
Output Voltage 3ph 380Vac
Type Other, Solar pump controller / inverter
Output Frequency 0 - 50/60HZ
Product Description

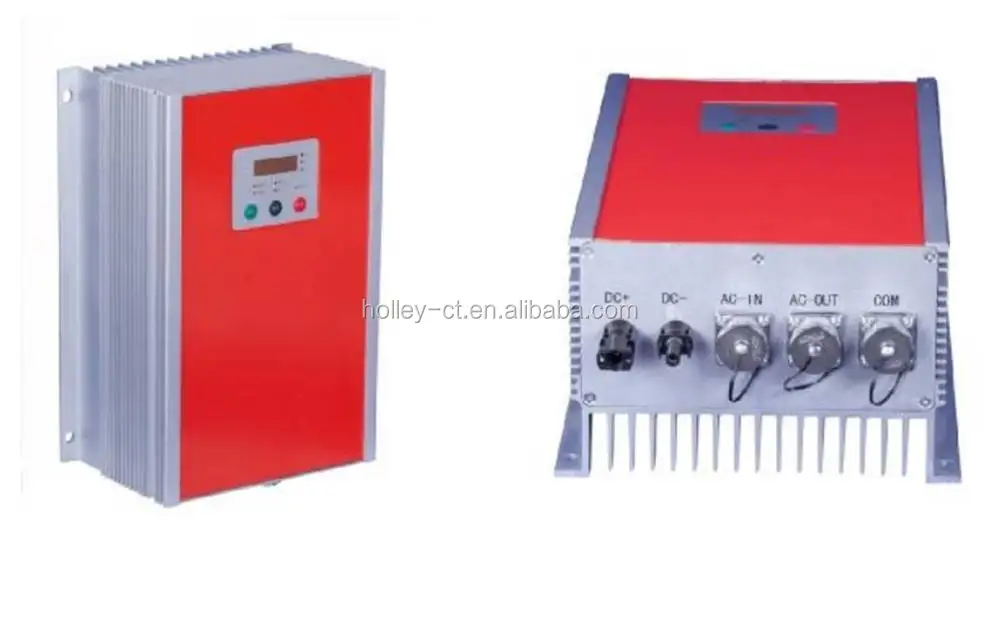

Solar water pump controller 0.75KW / 1.5KW / 2.2KW / 3KW / 4KW.

Feature:
1.Water blocked cable connector is impervious to water leakage and condensation

2.Accepts a variety of jacketed cables from your power source Runs dry without damage
3.Easily repaired in the field
4.Corrosion-proof housing with stainless steel fasteners
5.Quick disconnect electrical connection
6.Requires a pump control box

Detailed Images
Technical data
Model (HP-I)
800
1700
2500
3600
5000
Rated Power(KW)
0.75
1.5
2.2
3
4
Output
Voltage(V)
3 phase, 380V
Current(A)
2.5
3.8
5.5
8.5
9
Overload Capacity
150% 60s, 180% 10s, 200% 0.5s
Input
Voltage(V)
AC
3 phase, 380-480V, 50/60HZ
DC
Solar open curcuit voltage: DC750±50V
Voltage Range(V)
AC
323-528V,voltage unbalance<3%, frequency fluctuation rate±5%
DC
MPPT range: DC540-650V, Max Voc
Current(A)
AC
2.8
4.2
6.1
9.4
9.9
DC
3
4.6
6.6
10.2
10.8
Protection Level
IP20
