Home > Electrical & Electronics > Connector & Terminals > Terminals > Insulated Male or Female Terminal
Insulated Male or Female Terminal
US$ 0.1 - 1
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HRYA
Type:
Crimp Terminal
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
No-Insulated Ring TerminalsUS$ 0.01 - 1MOQ: 5000 Pieces -
HRYA Bimetal LugsUS$ 0.01 - 1MOQ: 5000 Pieces
-
TE Insulated Double Crimp Terminals Pipe Pre-insulated TerminalUS$ 0.1 - 1MOQ: 5000 Pieces
-
Copper Wire Terminals Pin Insulated TerminalUS$ 0.1 - 0.2MOQ: 100 Pieces
-
Heat Shrinkable Cable Terminal Cable TerminalUS$ 0.1 - 0.2MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
HRYA
Type
Crimp Terminal
Product Description:

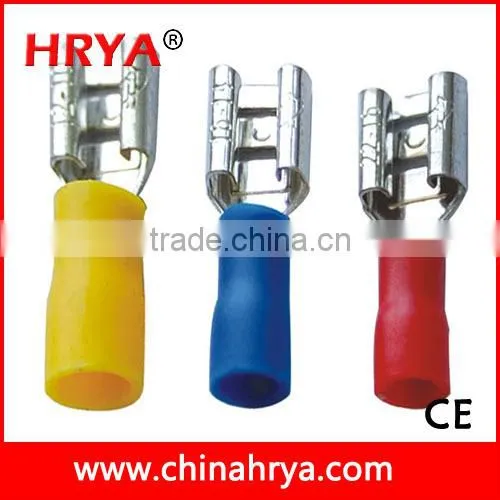

Nylon or PVC insulated cooper terminal :
1.Certifications:CE,SGS,ISO9001 2.Material: Made by high purity copper tube T2 3.Plating:Tin 4.Material thickness:0.7mm-1.0mm 5.Color:Red,Blue,Black,Yellow 6.Using:Connect wire with electrical equipment

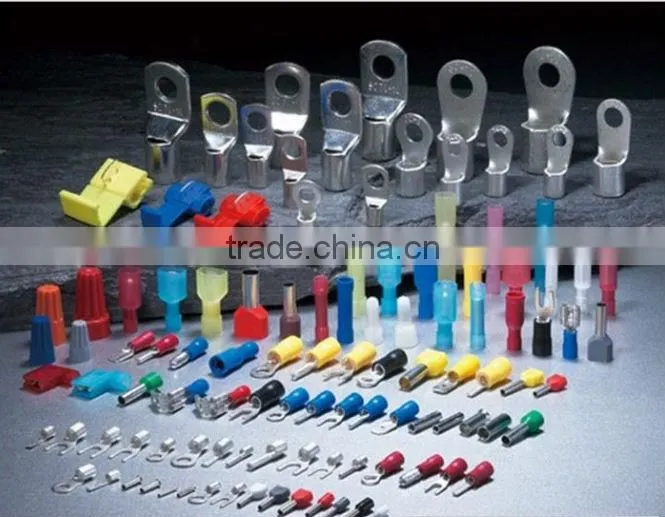

There are many kinds of insulated cable terminals to choose ring terminal,fork terminal,hook terminal,butt
connector,pin terminal,flange spade terminal.
| Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=10A Material: brass | |||||||||
| No. | Item No. | Name Tab (mm) | Thickness of material (mm) | Dimension | Color | ||||
| B(mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||||
| 1 | FDD1.25-110(5) | 0.5×2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19.0 | 10.0 | Red |
| 2 | FDD1.25-110(8) | 0.8×2.8 | 0.3 | 3.8 | 1.7 | 3.8 | 19.0 | 10.0 | |
| 3 | FDD1.25-187(5) | 0.5×4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19.0 | 10.0 | |
| 4 | FDD1.25-187(8) | 0.8×4.75 | 0.35 | 5.6 | 1.7 | 3.8 | 19.0 | 10.0 | |
| 5 | FDD1.25-205 | 0.5×5.2 | 0.35 | 6.5 | 1.7 | 3.8 | 20.0 | 10.0 | |
| 6 | FDD1.25-250 | 0.8×6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21.0 | 10.0 | |
| Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass | |||||||||
| No. | Item No. | Name Tab (mm) | Thickness of material (mm) | Dimension | Color | ||||
| B(mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||||
| 7 | MDD2-110(5) | 0.5×2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19.0 | 10.0 | Blue |
| 8 | MDD2-110(8) | 0.8×2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19.0 | 10.0 | |
| 9 | MDD2-187(5) | 0.5×4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19.0 | 10.0 | |
| 10 | MDD2-187(8) | 0.8×4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19.0 | 10.0 | |
| 11 | MDD2-205 | 0.5×5.2 | 0.35 | 6.5 | 2.3 | 4.3 | 20.0 | 10.0 | |
| 12 | MDD2-250 | 0.8×6.35 | 0.4 | 7.4 | 2.3 | 4.3 | 21.0 | 10.0 | |
| 13 | MDD2-312 | 0.8×8.0 | 0.4 | 9.0 | 2.3 | 4.3 | 23.0 | 10.0 | |
| Cable size:4~6mm²(A.W.G.12~10) Max current:Imax=24A Material: brass | |||||||||
| No. | Item No. | Name Tab (mm) | Thickness of material (mm) | Dimension | Color | ||||
| B(mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||||
| 14 | MDD5.5-250 | 0.8×6.35 | 0.4 | 7.4 | 3.4 | 5.7 | 25.0 | 13.0 | Yellow |
| 15 | MDD5.5-375 | 1.2×9.4 | 0.4 | 10.9 | 3.4 | 5.7 | 29.6 | 13.0 | |
Samples:
About us:
Certificate:

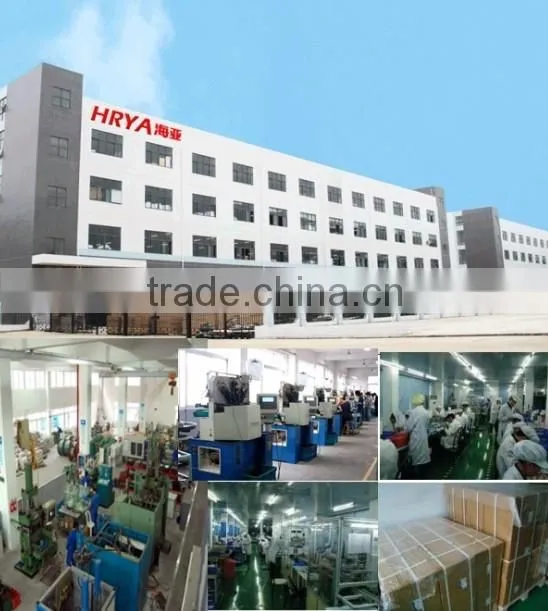

HRYA Electrical was established in 2013,with 20 office guys and 120 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO and CE certificates.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2013
Factory Size
1,000-3,000 square meters
Total Employees
51 - 100 People
