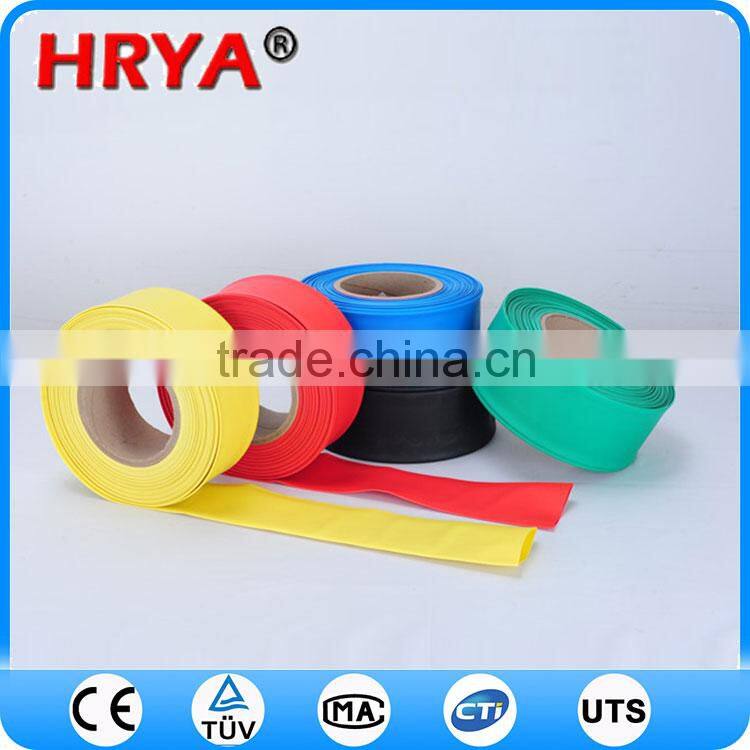

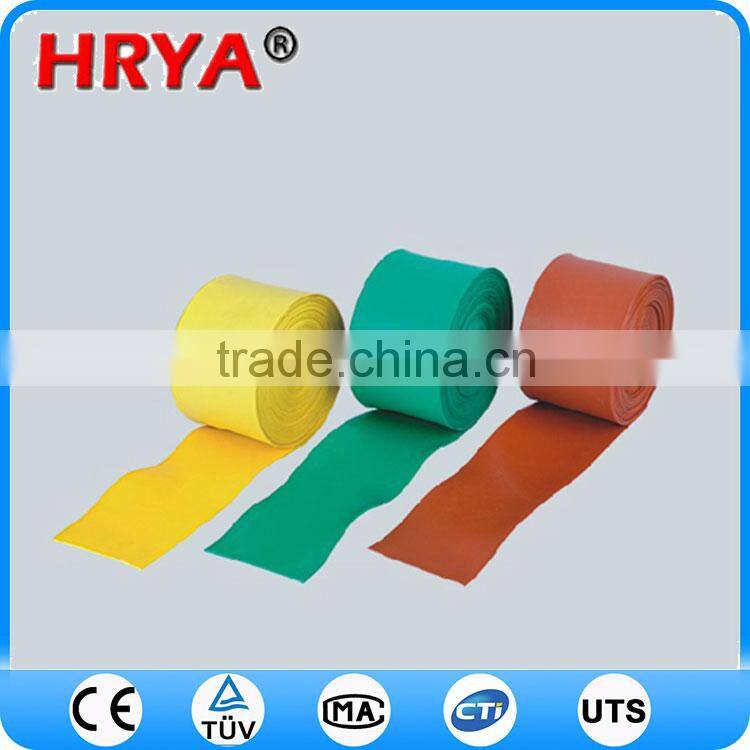

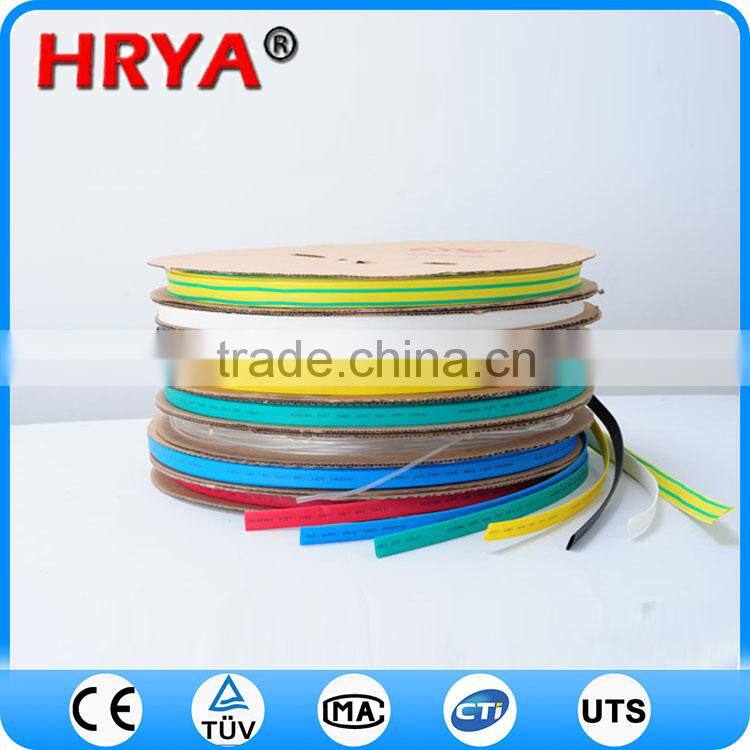

Low Voltage, Heat pipes heat shrinkable pe tube
heat shrink tubing :
HDRS heat shrinkable sleeve is made of polythene and others material,Which have some advantage pliability, flame-repellent,shrink fast,high stability,Bright Color and so on.Being used in Cable ,special sleeves,and so on.It reliably pretects wires,solder joints,terminals,connections and components from most industrial fuels,solventa and chemical..
Feature:
Shrink ratio:2:1 3:1
Colors;black, red,yellow,green,blue
Special colors can be customized according to the customer with the color card
Type and specification :
| Item No | Inner Dia | Thinkcess | Package(m/roll) |
| HDRS-Φ1/0.5 | 1.3±0.3 | 0.185±0.05 | 400 |
| HDRS-Φ1.5/0.75 | 1.8±0.3 | 0.19±0.05 | 400 |
| HDRS-Φ2/1 | 2.3±0.3 | 0.2±0.05 | 400 |
| HDRS-Φ2.5/1.25 | 2.8±0.3 | 0.2±0.05 | 400 |
| HDRS-Φ3/1.5 | 3.3±0.3 | 0.2±0.05 | 400 |
| HDRS-Φ3.5/1.75 | 3.8±0.3 | 0.2±0.05 | 400 |
| HDRS-Φ4/2 | 4.3±0.3 | 0.21±0.05 | 400 |
| HDRS-Φ4.5/2.25 | 4.8±0.3 | 0.21±0.05 | 200 |
| HDRS-Φ5/2.5 | 5.3±0.3 | 0.21±0.05 | 200 |
| HDRS-Φ6/3 | 6.4±0.3 | 0.21±0.05 | 200 |
| HDRS-Φ7/3.5 | 7.4±0.4 | 0.21±0.05 | 100 |
| HDRS-Φ8/4 | 8.4±0.4 | 0.21±0.05 | 100 |
| HDRS-Φ9/4.5 | 9.4±0.4 | 0.24±0.05 | 100 |
| HDRS-Φ10/5 | 10.5±0.5 | 0.24±0.05 | 100 |
| HDRS-Φ11/5.5 | 11.5±0.5 | 0.24±0.05 | 100 |
| HDRS-Φ12/6 | 12.5±0.5 | 0.25±0.05 | 100 |
| HDRS-Φ13/6.5 | 13.5±0.5 | 0.25±0.05 | 100 |
| HDRS-Φ14/7 | 14.5±0.5 | 0.26±0.05 | 100 |
| HDRS-Φ15/7.5 | 15.5±0.5 | 0.27±0.05 | 100 |
| HDRS-Φ16/8 | 16.5±0.5 | 0.29±0.05 | 100 |
| HDRS-Φ18/9 | 18.5±0.5 | 0.29±0.05 | 100 |
| HDRS-Φ20/10 | 20.5±0.5 | 0.31±0.07 | 100 |
| HDRS-Φ25/12.5 | 25.8±0.8 | 0.35±0.07 | 100 |
| HDRS-Φ30/15 | 30.8±0.8 | 0.37±0.07 | 25 |
| HDRS-Φ35/12.5 | 35.8±0.8 | 0.39±0.07 | 25 |
| HDRS-Φ40/20 | 41±1.0 | 0.39±0.07 | 25 |
| HDRS-Φ45/22.5 | 45±1.0 | 0.39±0.07 | 25 |
| HDRS-Φ50/25 | 51±1.0 | 0.41±0.07 | 25 |
| HDRS-Φ60/30 | 60±1.0 | 0.42±0.07 | 25 |
| HDRS-Φ70/35 | 71±1.0 | 0.43±0.07 | 25 |
| HDRS-Φ80/40 | 81±1.0 | 0.45±0.07 | 25 |
| HDRS-Φ90/45 | 91±1.0 | 0.50±0.07 | 25 |
| HDRS-Φ100/50 | 101±2.0 | 0.55±0.07 | 25 |
| HDRS-Φ120/60 | 121±2.5 | 0.57±0.07 | 25 |
| HDRS-Φ150/75 | 150±3.0 | 0.60±0.07 | 25 |
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: CHINAHRYA
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
