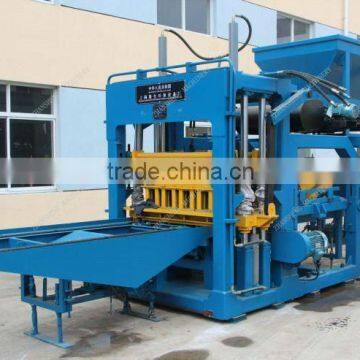

Algeria ZS-QT10-15 Automatic Concrete Brick Machine

 Main Technical Parameter of ZS-QT10-15 Cement Block Machine Plant

 Overall Size(mm)

3600*3100*3300mm

 Moulding Cycle

15-18s

 Power(KM)

54KW

 Area of molding

1000*800mm

Height of molding

40-230mm

Pallet size

1060*860*25mm

 Host weight

14T

 Master Frequency

4500R/Min

  Rated pressure

36Mpa

Exciting force

80-100KN

 List of Theoretical Production Capacity

 Proudcts

 Specifications

 Pc/Mould

 Pc/Day

 Pc/Year

 Standard Brik

240*115*53mm

52

99,840

29,952,000

 Hollow Block

390*190*190mm

10

19,200

5,760,000

 Multi-hole Brick

240*115*90mm

24

46,080

13,824,000

  Pathway Brick

200*100*60mm

36

47,232

14,169,600

1. Supervise the construction of foundation which includes electricity, water and other related amenities;

2. Our engineer will help to train the managers and technicians. Course including: factory management, equipment maintenance, quality control, stocking, marketing etc;
3. On-Site Service Engineers for machines installation On-Site training service for production personnel. After-sales Service

1. Set up individual client's archives with all their needs and detailed to be attended;
2. 24 hours technical advices;
3. Frequent and scheduled engineers visiting;
4. Prompt spare parts support from our major cities distribution network.

1.Table vibration:

Energy from the vibration table through the pallet to the mixture, make the mixture density.

2.Pressure vibrating:

Pressure head of mould down to the top surface of concrete,at the same time vibration start.Pressure with vibrating.

3.Feed vibrating:

Small vibrating when the material feeding car at the top of the mould frame,let the concrete easy to fall down to the mould frame.

4.Green block:

Block just forming by the machine,without curing.

Separate the finished block from the mould.
