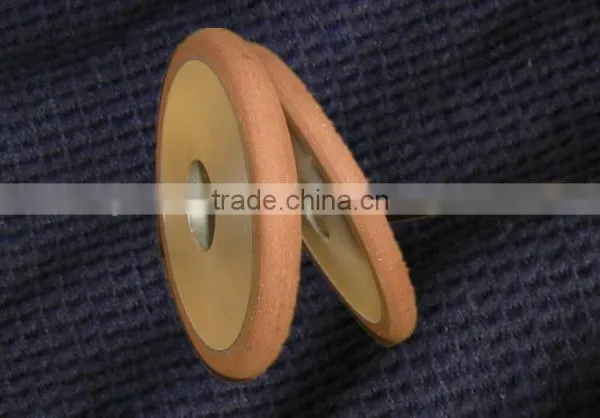

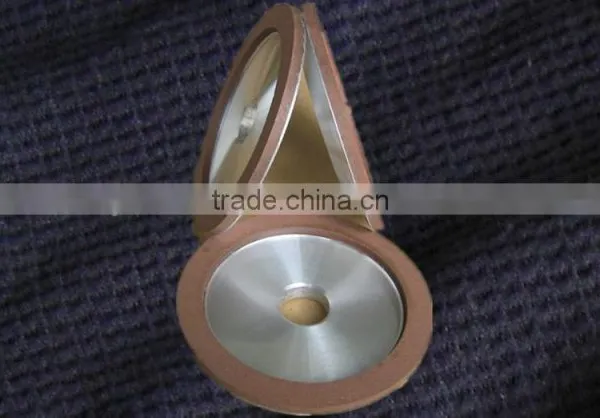

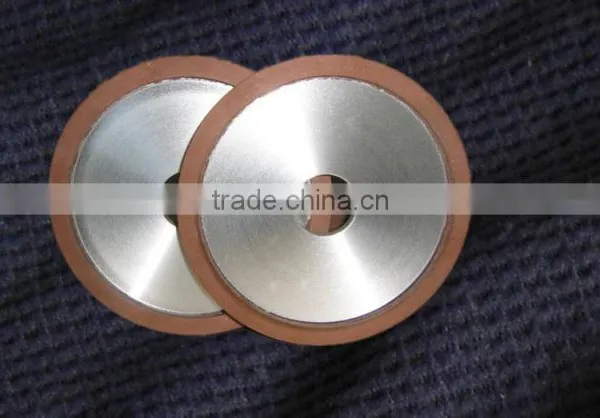

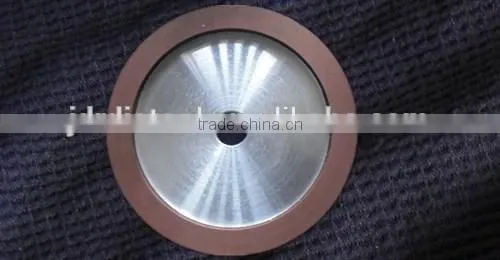

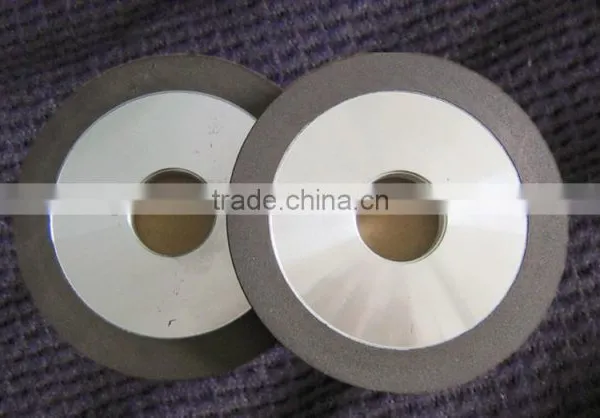

Diamond grinding wheel for carbide

1. Diamond grinding wheel for carbide

2.Application:

  Diamond grinding wheel for carbide  is for tool grinding' Machining: Rake faces, relief angels on front and periphery, reduction of cutting edge

3. Specification

.GENERAL RULES WHICH APPLY TO SUPERABRASIVES ARE:

¨ Do not use Diamond on ferrous materials.

¨ Do not use CBN on steel under Rc 50.

¨ Machines must be in good working order with good bearings and rigidity.

1. Storing and Handling

Wheels should be stored separately and protected against shock and contact to reduce the risk of damage. Wheels may be left mounted on spindles and flanges but should be wrapped before storage. Otherwise keep wheels in their boxes when not in use.

2. Coolant

It is always advisable to use superabrasives with coolant as performance is superior (sometimes by a factor of 10 times). Many coolants are available but water with an addition of rust preventor or soluble oil (1.5 to 2%) is often adequate. Whilst giving longer life to wheels the use of coolant also minimises the thermal damage to the workpiece and wheel. This guarantees workpiece integrity and dimensional accuracy by reducing heat distortion to a minimum. The use of coolant will also help in obtaining a better surface finish. It is generally accepted that straight oils generate a better finish than emulsion or simple aqueous solutions,and markedly better than the absence of any fluid. Coolant also acts as a lubricant and lowers spindle power drain, it reduces the force needed to remove stock thereby lowering heat generation and increasing wheel life. The final function of coolant is to remove swarf from the abrasive rim. This prevents wheel loading and helps to maintain freeness of cut. To get the best from your coolant flood the workpiece/wheel contact area. Have a large tank to allow swarf to settle out and if possible filter out impurities and fine swarf. A small trickle of coolant occasionally applied is worse than no coolant at all. This causes alternate heating and quenching, which can cause damage to the wheel and workpiece. A good way to apply coolant

is to allow the centrifugal force of the wheel to deliver it in a steady stream to the point of grinding contact.

Packing:1 piece to paper box, 50 piece per carton.

Shipment:By Sea, By air,etc.

 JDR Diamond Tools Co., Ltd is backed up by Jiangyin Lingrui Diamond Tools Factory. , a leading manufacturer of electro-plated diamond saw blades, diamond polishing pads, diamond core drill bits, diamond hole saws,diamond files,diamond pins, diamond grinding wheels,diamond cup wheel,diamond router bits,diamond profiling wheels and other diamond tools in China which is located in the famous city of Jiangyin.
To supply tools of the highest quality with the best possible service and to ensure that every tool offers unbeatable value, have been the simple objectives of our founders since 1999, and are the foundation stones of our business philosophy.
Quality is the guiding principle for our highly experienced development team. Only when their quality is proven and guaranteed are the tools released for sale. By listening carefully to customers' feedbacks, continual product enhancements improve not only quality but also performance and ease of use.
We provide not only tools, but also service. Our focus is on both production of foreign customers' requesting tools, and sourcing the right tools from China they need. Fast response to sample enquiries, rapid order processing and on time delivery ensures that customers' requirements are accurately and consistently satisfied, while this is guaranteed by years exporting experience in the field.
Our company has a well deserved reputation for offering outstanding value. Our China-wide sourcing capability, together with in-house design and development facilities further contribute to ensuring that all JDR's tools set the standard for value. By the good quality and competitive price, as well as the best service, JDR's tools have reached all over the world.
