Specifications
1. High performance,4A2 Diamond & CBN grinding wheel2. For Hard Material grinding
3. Exporting experience
4.FEPA stan

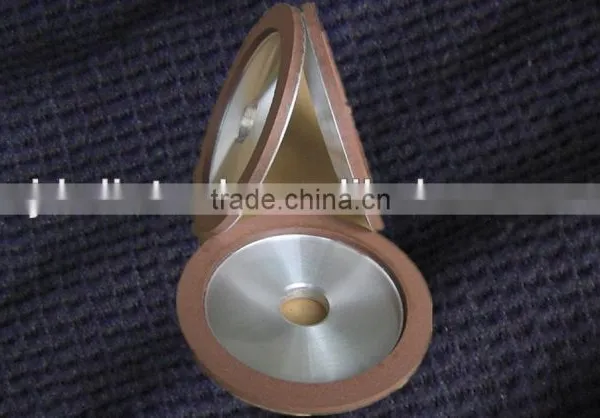

1. 4A2 Diamond grinding wheel
2.Application:
4A2 diamond grinding wheel , Used for sharpening and finishing of front surfaces of multipleblade tools.
3. Specification
| Diameter(D) | Height (T) | Thickness(X) | Width(W) | Hole(H) | ||
| 50 | 10 | 2 | 2 | 10 | ||
| 75/80 | 13 | 3 | 3 | 10,20 | ||
| 100 | 13 | 3,5 | 3 | 20 | ||
| 125 | 13 | 3 | 5 | 32 | ||
| 150 | 16 | 3 | 5 | 32 | ||
.Superhard cutting&grinding tools:
Diamond and cubic boron nitride (CBN) are considered to be the hardest known grinding materials and are therefore
often referred to as “super-abrasives“. For this reason they are suitable for machining materials which are difficult or
even impossible to grind with conventional abrasives such as silicon carbide or corundum.
5. Basic application
Diamond CBNDue to its extreme hardness, Diamond is particularly suitable for machining the following
materials:
– All carbide metal grades
– Cermet
– Oxide and non-oxide ceramics
– PCD / PCB
– Hard facing alloys
– Sapphire, glass
– Ferrite
– Graphite
– Fiber reinforced synthetics
– Precious and semi-precious stones
CBN consists of the elements boron and nitrogen. In contrast
to Diamond, CBN has no carbon atoms, making it suitable
for machining steel. CBN is better suited for machining the
following materials:
– Hardened steel over approx. 54 HRc hardness
– High-speed steel (HSS)
– Stellite
– Nickel-based special alloys
6. Dressing
When a wheel is trued, the abrasive surface should be dressed to condition it for aggressive stock removal. The bond material should be eroded to expose the grit.
Dressing Sticks. Aluminum oxide dressing sticks are hand held on the surface of the grinding wheel until the wheel consumes
the dressing stick rapidly. The wheel is now ready.
JDR Diamond Tools Co., Ltd is backed up by Jiangyin Lingrui Diamond Tools Factory. , a leading manufacturer of electro-plated diamond saw blades, diamond polishing pads, diamond core drill bits, diamond hole saws,diamond files,diamond pins, diamond grinding wheels,diamond cup wheel,diamond router bits,diamond profiling wheels and other diamond tools in China which is located in the famous city of Jiangyin. To supply tools of the highest quality with the best possible service and to ensure that every tool offers unbeatable value, have been the simple objectives of our founders since 1999, and are the foundation stones of our business philosophy. Quality is the guiding principle for our highly experienced development team. Only when their quality is proven and guaranteed are the tools released for sale. By listening carefully to customers' feedbacks, continual product enhancements improve not only quality but also performance and ease of use. We provide not only tools, but also service. Our focus is on both production of foreign customers' requesting tools, and sourcing the right tools from China they need. Fast response to sample enquiries, rapid order processing and on time delivery ensures that customers' requirements are accurately and consistently satisfied, while this is guaranteed by years exporting experience in the field. Our company has a well deserved reputation for offering outstanding value. Our China-wide sourcing capability, together with in-house design and development facilities further contribute to ensuring that all JDR's tools set the standard for value. By the good quality and competitive price, as well as the best service, JDR's tools have reached all over the world.
