Specifications

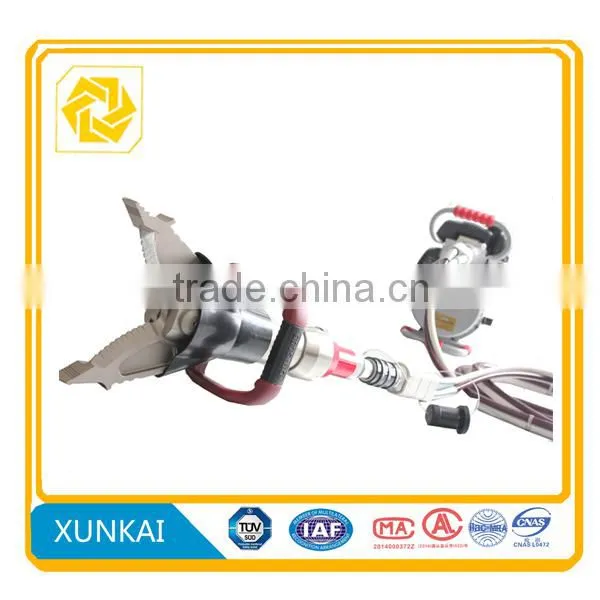

fire and rescue equipment#1.MONO Coupler
#2.Powered by hydraulic, battery, hand pump
#3.Hydraulic pump with turbo function
FIRE AND RESCUE EQUIPMENT
FIRE AND RESCUE EQUIPMENT | ||
Model |
XHSC-100/325-M |
|
Max. Opening Distance of Blades |
≥360mm |
≥14 in. |
Rated Working Pressure |
700bar |
10150 psi |
Max. Cutting Capacity(Q235steel) |
15mm(steel plate);Φ28mm(circle steel) |
0.6 in.(steel plate); Φ1.1 in.(circle steel) |
Max. Cutting Force |
325KN(32.5T) |
69500 lbs |
Max. Spreading Force |
100KN(10T) |
7050 lbs |
Hauling Distance |
230mm |
9 in. |
Rated Hauling Force |
55KN |
12100 lbs |
Weight(working condition) |
≤14kg |
≤30.8 lbs |
Dimension(L*W*H) |
765*210*170mm |
30.1*8.3*6.7 in. |
FIRE AND RESCUE EQUIPMENT Technica Features

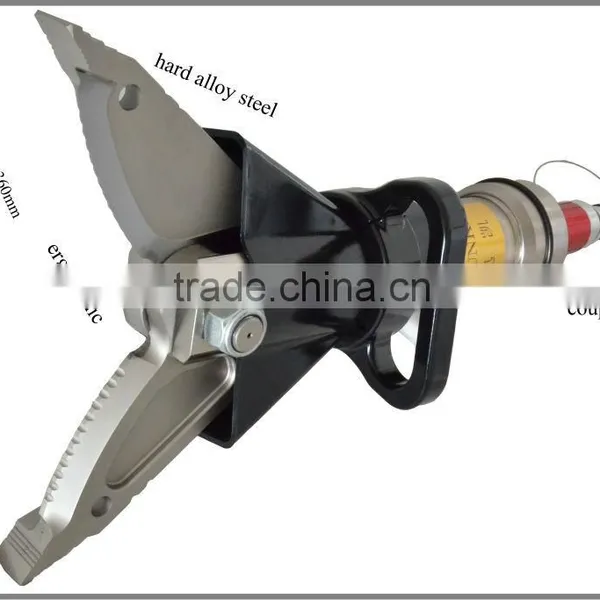

1.Shearing, expansion and pulling functions. The multi-functional pliers can instead as a cutter and a spreader;
2.Splashing collapse prevent design during shearing operation with automatic reset manually controlled steering valves, provides security for the manipulator;
3.Manual control valve operation can drive the blade and fix in any positions with self-locking function;
4.Short period to open and close blades accelerates the rescue process;

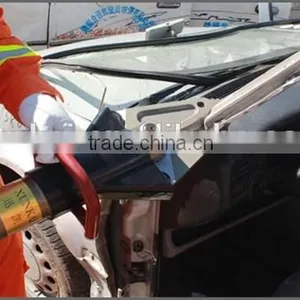

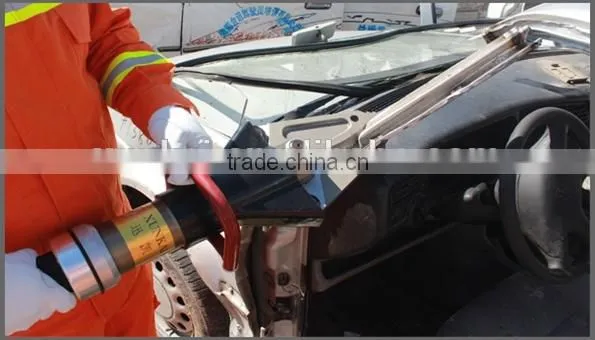

FIRE AND RESCUE EQUIPMENT Application
1.Traffic accident rescue, earthquake disaster relief and accident rescue etc.;
2.Suitable for rescue operations maneuverable;
3.Unclenching the door and metal structure into deformation;
4.Cut metal structure, vehicle parts, pipeline and metal plates
| Package Size for your caclulate freight | |
| Package Size | 89 * 27 * 22 |
| Weight | 15kg |
| Delivery Time | |
| As normal,the delivery time is 5-7 working time since full payment (please contact sales representatives for exacttime each order) | |
XUNKAI fire equipment Co.,Ltd. is located in Jinan, the capital of Shandong Province-Spring city. XUNKAI is the professional manufacturer for rescue tools collection of research, manufacture, sales and service.
XUNKAI has a number of outstanding professional technical and sales management team. Rescue series products are widely used in fire rescue, highway, railway and other traffic accident rescue,police rescue, building collapse rescue, earthquake disaster relief. And provide systematic rescue plan and consulting services. To enhance the quality of domestic rescue tools as our duty. Indepth research and development. Adopt in the domestic leading level of manufacturing technology and craft on the base of the core products, greatly improve the efficiency of rescue, for life insurance.
Warranty
1. One year warranty under normal use.We will be in charge for replacement or repair it for free if there is any problem caused by the tools quality;
2. 24 hours technical support by Hhone,Email,Skype,MSN;
3. Friendly English working manual,popular and easy to understand.
Countries We Exported to
Our products are exported to more than 20 countries, like USA, Italy, Ukraine, India, Indonesia, Philippine, Bangladesh,Turkey, South Africa, Nigeria,Sudan,Libya,Albania, France,Spain,Ecuador,Iran,Korea,Thailand etc.
Payment Terms
1. T/T in advance;
2. West Union:we can accept small payment(below$3000), but the banking charges shall be paid by the buyer;
3. L/C is acceptable if the amount is bigger than $100,000. Please issue the L/C draft for our confirmation first.
